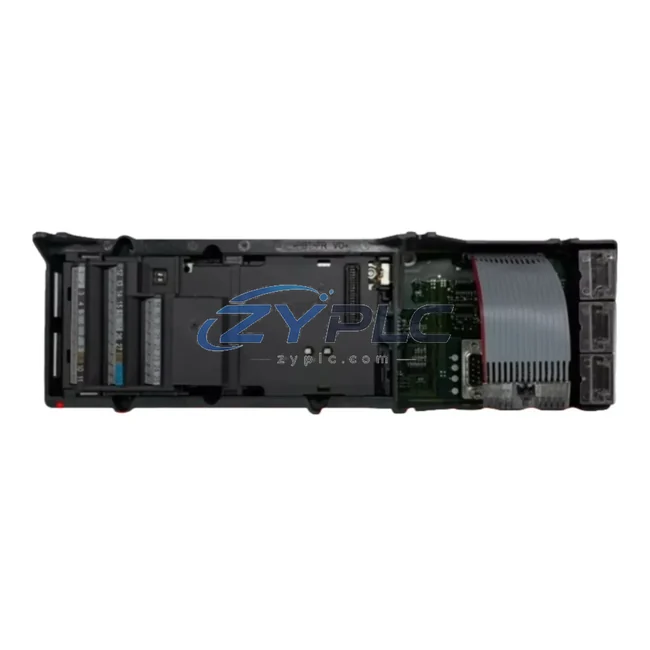

Siemens 6SL3351-6FE32-1AA1 CIB for S120

Siemens 6SL3351-6FE32-1AA1 CIB for S120 Automation

The Siemens 6SL3351-6FE32-1AA1 is a high-performance Control Interface Board (CIB) engineered for the SINAMICS S120 drive system. Designed to serve as the central communication and control bridge between the drive’s power modules and the higher-level automation controller, this CIB plays a decisive role in how efficiently a production line consumes energy, responds to load changes, and maintains motor control precision. For factories operating multi-axis servo systems, high-cycle packaging lines, or continuous-process manufacturing equipment, the 6SL3351-6FE32-1AA1 is a critical component that directly influences both operational throughput and energy expenditure.

Unlike passive interface components, the CIB actively participates in the drive’s closed-loop control architecture. It manages real-time data exchange between the SINAMICS S120 Control Unit CU320-2 and the connected Motor Modules, enabling precise torque and speed regulation that eliminates unnecessary motor overrun and reduces reactive power losses. In applications where multiple axes must be synchronized — such as in printing, converting, or assembly automation — the 6SL3351-6FE32-1AA1 ensures that each drive axis receives accurate setpoints with minimal latency, directly supporting optimized production line rhythm and reduced idle operating load.

Product Specification Table

System Compatibility and Application

The 6SL3351-6FE32-1AA1 CIB operates at the heart of the SINAMICS S120 booksize or chassis drive topology. Its DRIVE-CLiQ interface enables high-speed, deterministic communication with the SINAMICS S120 CU320-2 DP Control Unit and connected Single Motor Modules or Double Motor Modules, ensuring that torque commands and encoder feedback are processed within microseconds. This tight control loop is what allows the S120 system to implement operational-efficiency functions such as kinetic buffering, regenerative braking energy recovery via the Active Line Module (ALM), and dynamic load balancing across drive axes.

In a typical energy-optimized drive cabinet, the 6SL3351-6FE32-1AA1 works alongside the SINAMICS S120 Smart Line Module for DC bus management and the SINAMICS S120 Braking Module for controlled deceleration energy dissipation. When paired with a SIMATIC S7-1500 PLC running TIA Portal-based motion control programs, the CIB enables seamless integration of speed profiles, condition monitoring triggers, and fault diagnostics — all contributing to a measurable reduction in kWh consumption per production cycle.

For power quality monitoring, the CIB’s data outputs can feed into SENTRON PAC3200 or SENTRON PAC4200 power monitoring devices, giving energy managers real-time visibility into drive-level consumption. Combined with SIMATIC ET 200SP distributed I/O modules handling field-level sensor data, the system creates a complete energy feedback loop — from motor shaft to SCADA dashboard. HMI visualization via SIMATIC TP1200 Comfort panels allows operators to monitor drive efficiency KPIs and intervene before inefficiencies escalate into downtime events.

Communication flexibility is another energy-efficiency enabler. The CIB supports integration into PROFIBUS DP and PROFINET IO networks, allowing the S120 drive system to participate in plant-wide maintenance planning strategies coordinated by higher-level systems. This interoperability means that during low-demand production windows, the controller can issue speed reduction commands across multiple axes simultaneously — a function that would be impossible without the reliable, low-latency interface that the 6SL3351-6FE32-1AA1 provides.

Maintenance and Replacement Notes

In real-world industrial deployments, the 6SL3351-6FE32-1AA1 CIB has demonstrated its value across a range of energy-intensive applications. In automotive body-in-white welding lines, where dozens of servo axes must operate in precise synchrony, a faulty or degraded CIB can cause axis desynchronization that forces the entire line to run at reduced speed — wasting energy while producing less output. Replacing a failed CIB with a tested 6SL3351-6FE32-1AA1 restores full-speed, full-efficiency operation immediately.

In food and beverage packaging facilities, where conveyor systems, filling stations, and labeling machines all rely on SINAMICS S120 multi-axis drives, the CIB’s role in maintaining accurate speed ratios between axes directly affects line OEE (Overall Equipment Effectiveness). A well-functioning CIB ensures that motors are never running faster than required, that deceleration ramps are executed smoothly to recover kinetic energy where possible, and that fault conditions are detected and reported before they cause unplanned downtime — each of which contributes to lower energy cost per unit produced.

Predictive maintenance strategies also benefit from a properly functioning 6SL3351-6FE32-1AA1. The CIB’s DRIVE-CLiQ communication channel carries not just control data but also diagnostic information — motor temperature, encoder status, and drive load profiles — that can be logged by the CU320-2 and forwarded to maintenance systems. This data enables condition-based maintenance scheduling, replacing time-based part swaps with need-based interventions that reduce both maintenance labor costs and unnecessary component replacement. Every unit shipped from ZYPLC undergoes full functional testing and is backed by a warranty terms confirmed during quotation, ensuring that your replacement CIB performs to Siemens specification from day one.

Product Sourcing FAQ

Q1: How does the 6SL3351-6FE32-1AA1 CIB contribute to operational stability in an S120 drive system?
The CIB enables precise, low-latency communication between the Control Unit and Motor Modules, which is essential for implementing operational-efficiency drive functions such as load-adaptive speed control, regenerative braking via the Active Line Module, and kinetic buffering. Without a fully functional CIB, these features cannot operate correctly, and the drive system defaults to less efficient operating modes.

Q2: Is the 6SL3351-6FE32-1AA1 compatible with both CU320-2 DP and CU320-2 PN Control Units?
Yes. The 6SL3351-6FE32-1AA1 is designed for use within the SINAMICS S120 platform and is compatible with both the PROFIBUS-based CU320-2 DP and the PROFINET-based CU320-2 PN Control Units. Always verify firmware version compatibility with your existing drive configuration before installation.

Q3: What is the recommended replacement process, and how is the unit tested before shipment?
Each 6SL3351-6FE32-1AA1 unit supplied by ZYPLC is individually tested under simulated drive operating conditions to verify DRIVE-CLiQ communication integrity, power supply response, and interface signal quality. Replacement follows standard SINAMICS S120 CIB swap procedures as documented in Siemens service manuals. No special tools are required beyond standard ESD precautions.

Q4: What warranty coverage is provided, and what does it include?
All units are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers functional defects identified under normal operating conditions consistent with SINAMICS S120 system specifications. ZYPLC’s technical team provides pre-sale compatibility consultation and post-sale support to ensure correct application and maximum uptime for your production line.
