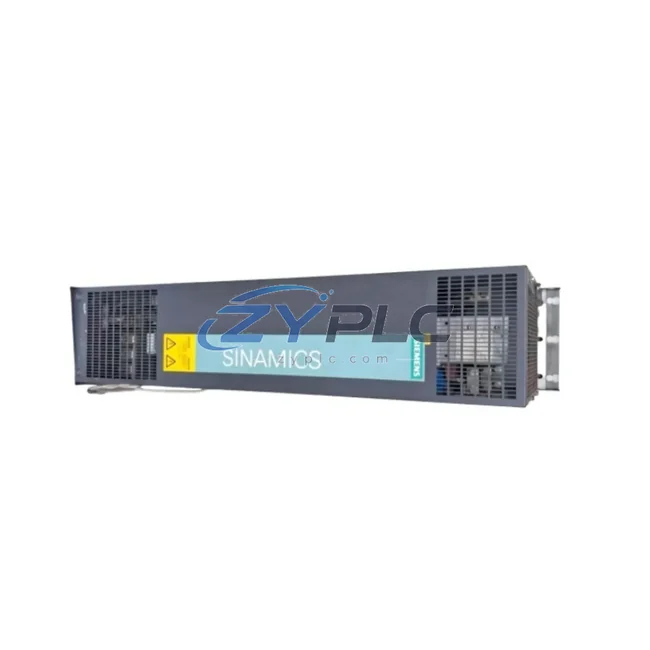

Siemens 6SL3352-1AE33-8AA1 Power Module for S120

Siemens 6SL3352-1AE33-8AA1 Power Module for S120: Compatibility and Replacement Notes

The Siemens 6SL3352-1AE33-8AA1 is a booksize-format Power Module belonging to the SINAMICS S120 drive system family — one of Siemens’ most widely deployed multi-axis servo and vector control platforms in industrial automation. Rather than functioning as a standalone component, this Power Module occupies a critical position within a layered control architecture, serving as the power conversion backbone that bridges the DC link bus and the motor output stage. Understanding its role requires examining the full system hierarchy: from the controller layer down through the drive layer, I/O layer, communication network, power supply layer, and ultimately the execution layer where motors and actuators operate.

In a typical SINAMICS S120 booksize installation, the 6SL3352-1AE33-8AA1 Power Module is mounted on a shared DC bus alongside a Line Module — such as the Active Line Module 6SL3130 series or a Basic Line Module — which rectifies incoming AC supply into a regulated DC link. The 6SL3352-1AE33-8AA1 draws from this common DC bus and converts power to drive connected servo or induction motors. This shared DC bus topology is fundamental to S120 system design: it enables energy regeneration between axes, reduces overall power consumption, and allows multiple Motor Modules and Power Modules to operate in coordinated motion sequences without independent rectifier stages per axis.

At the control layer, the 6SL3352-1AE33-8AA1 is governed by a SINAMICS S120 Control Unit — typically a CU320-2 DP or CU320-2 PN — which manages torque, speed, and position loops across all connected drive components via the DRIVE-CLiQ communication backbone. DRIVE-CLiQ is Siemens’ proprietary high-speed serial interface that daisy-chains the Control Unit, Power Modules, Motor Modules, Sensor Modules (SMC20, SMC30), and Smart Line Modules into a unified drive object topology. This architecture eliminates manual parameter entry for motor and encoder data, as electronic nameplates are read automatically during commissioning through STARTER or TIA Portal Startdrive software.

The I/O layer in an S120 system typically integrates SIMATIC ET 200SP or ET 200M distributed I/O stations connected via PROFIBUS DP or PROFINET IO, feeding process signals — limit switches, temperature sensors, encoder feedback, and safety inputs — back to the CU320-2 or to a higher-level SIMATIC S7-1500 PLC. The 6SL3352-1AE33-8AA1 supports Safety Integrated functions (STO, SS1, SLS) when paired with appropriate TM54F Terminal Modules or F-capable Control Units, enabling the drive to participate in functional safety architectures without external safety relays in many applications.

From a power supply perspective, the 6SL3352-1AE33-8AA1 requires a 24 VDC control voltage supply — typically sourced from a SITOP PSU8200 or equivalent regulated power supply — in addition to the main DC bus voltage. Proper sizing of the Line Module and DC bus capacitance is essential when integrating this Power Module into multi-axis cabinets, particularly in applications with high dynamic load cycles such as packaging lines, CNC machining centers, or textile machinery.

At the HMI layer, operators interact with the S120 system through SIMATIC HMI panels (TP700, TP1200, or KTP series) connected via PROFINET, providing real-time visualization of drive status, fault diagnostics, speed references, and energy consumption data. The 6SL3352-1AE33-8AA1 reports its operational state — including DC link voltage, output current, thermal load, and active faults — through the Control Unit to the HMI and SCADA layer, supporting predictive maintenance workflows and remote diagnostics.

System redundancy in S120 architectures is achieved through redundant Control Units, redundant PROFINET rings (MRP topology), and hot-standby configurations for critical axes. The 6SL3352-1AE33-8AA1, as a Power Module, supports fast restart and flying restart functions, minimizing downtime during power interruptions in continuous process industries such as petrochemical plants, water treatment facilities, and steel rolling mills.

All units supplied by ZYPLC undergo functional verification testing prior to dispatch and are covered by a warranty terms confirmed during quotation, ensuring system-level confidence for integrators and end users. system integration support is available to assist with drive topology planning, parameter migration, and commissioning guidance.

Product Specification Table

System Compatibility Notes

The 6SL3352-1AE33-8AA1 achieves its full performance potential only when integrated within a correctly specified S120 drive train. A complete coordinated system typically includes the following components working in concert:

• Siemens CU320-2 PN Control Unit — the central drive intelligence managing all drive objects via DRIVE-CLiQ and PROFINET IO to the PLC layer.
• Siemens Active Line Module 6SL3130 series — provides regulated DC bus voltage with active front-end rectification and regenerative capability, feeding the 6SL3352-1AE33-8AA1 and co-installed Motor Modules.
• Siemens Motor Module 6SL3120 series — single-axis or double-axis Motor Modules sharing the same DC bus, coordinating multi-axis motion profiles under CU320-2 supervision.
• Siemens SMC20 Sensor Module Cabinet-Mounted — interfaces encoder feedback (TTL, HTL, resolver) from motors to the DRIVE-CLiQ network, enabling closed-loop vector or servo control.
• Siemens TM54F Terminal Module — provides fail-safe digital I/O for Safety Integrated functions (STO, SS1, SLS) across all drive objects on the DC bus.
• Siemens SITOP PSU8200 24 VDC Power Supply — supplies stable 24 VDC control voltage to the Control Unit, Power Module electronics, and I/O terminals.
• Siemens SIMATIC S7-1500 PLC — higher-level controller issuing speed/torque setpoints and coordinating process logic via PROFINET IO with the CU320-2.
• Siemens ET 200SP Distributed I/O — field-level I/O expansion connected via PROFINET, handling digital and analog process signals from sensors and actuators.
• Siemens SIMATIC TP1200 HMI Panel — operator interface for real-time drive monitoring, fault acknowledgment, and parameter visualization.
• Siemens Braking Module / Braking Resistor 6SL3100 series — dissipates regenerative energy during deceleration in non-regenerative DC bus configurations, protecting the bus from overvoltage.

This coordinated architecture ensures signal integrity from the PLC setpoint through the drive control loop to the motor shaft, with consistent fault propagation, synchronized motion, and unified commissioning via TIA Portal Startdrive.

Industrial Application Notes

The 6SL3352-1AE33-8AA1 Power Module is deployed across a broad range of industrial sectors where multi-axis coordinated motion and high-power drive performance are required:

• Manufacturing & Automotive: Multi-axis CNC machining centers, transfer lines, and robotic welding cells rely on S120 booksize Power Modules for synchronized axis control with sub-millisecond response times. The shared DC bus reduces energy costs in high-cycle applications.
• Packaging & Converting: High-speed packaging lines, form-fill-seal machines, and label applicators use S120 Power Modules to coordinate servo axes for precise product handling, registration control, and format changeover.
• Power Generation & Utilities: In power plant auxiliary systems and water treatment pump stations, S120 drives provide variable-speed control of large motors, improving energy efficiency and reducing mechanical stress on pumps and fans.
• Petrochemical & Process Industry: Compressor drives, extruder lines, and agitator systems in chemical plants benefit from the S120’s robust vector control, functional safety integration, and ATEX-compatible motor compatibility.
• Metals & Mining: Rolling mill drives, conveyor systems, and hoist applications in steel and mining operations demand the high current capacity and regenerative braking capability characteristic of the 6SL3352 Power Module series.
• Textile Machinery: Winding, unwinding, and tension control systems in textile production use S120 multi-axis configurations to maintain precise web tension across multiple coordinated drive points.

In all these environments, the 6SL3352-1AE33-8AA1 contributes to system consistency by maintaining a unified drive platform, reducing spare parts complexity, and enabling centralized diagnostics through PROFINET and TIA Portal.

Product Compatibility FAQ

Q1: Is the 6SL3352-1AE33-8AA1 compatible with existing S120 booksize cabinets using CU320-2 DP Control Units?
Yes. The 6SL3352-1AE33-8AA1 is a SINAMICS S120 booksize Power Module and is fully compatible with CU320-2 DP and CU320-2 PN Control Units. It connects via DRIVE-CLiQ and shares the DC bus with co-installed Line Modules and Motor Modules. Firmware compatibility should be verified using the SINAMICS S120 compatibility matrix in TIA Portal or STARTER; in most cases, a firmware update to the Control Unit resolves any version mismatches without hardware changes.

Q2: Can this Power Module be installed as a direct replacement in an existing S120 system without full recommissioning?
In most cases, yes — provided the replacement unit carries the same order number and hardware revision. The DRIVE-CLiQ electronic nameplate on the Power Module stores device identification data that the Control Unit reads automatically on power-up. If the hardware revision differs, a parameter comparison using STARTER or Startdrive is recommended to confirm that all drive object parameters remain valid. ZYPLC’s system integration support can assist with pre-installation parameter backup and post-installation verification procedures.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or unauthorized modifications. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference, fault description, and any available diagnostic data (fault codes, STARTER project logs). ZYPLC will coordinate repair, replacement, or technical support as appropriate to minimize system downtime.
