Siemens 6SL3430-6TE21-6AA1 Smart Line Module for S120 Systems

Siemens 6SL3430-6TE21-6AA1 Industrial Network Interface for S120 Systems: Powering the Smart Factory Data Link

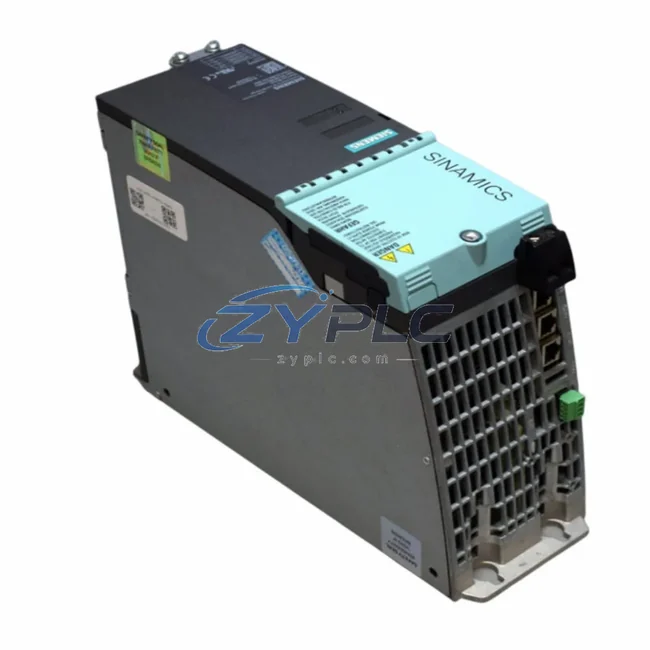

The Siemens 6SL3430-6TE21-6AA1 is a high-performance Smart Line Module within the SINAMICS S120 drive system, engineered to serve as a critical industrial network interface node in modern smart factory environments. Designed for seamless integration across PROFINET-based automation architectures, this module bridges the gap between field-level power conversion and upper-level control systems — enabling real-time data exchange, remote diagnostics, and transparent production visibility across the entire automation chain.

In today’s connected manufacturing landscape, the ability to transmit accurate, low-latency data from drive systems to SCADA platforms, HMI panels, and cloud-based MES is no longer optional — it is foundational. The 6SL3430-6TE21-6AA1 delivers exactly this capability, acting as a gateway between the physical drive layer and the digital intelligence layer of the factory.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6SL3430-6TE21-6AA1 sits at the heart of a multi-layer industrial data flow architecture. At the field level, sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and ET 200SP distributed I/O modules — feed real-time process signals into the drive system. The Smart Line Module conditions and manages the DC bus power supply for connected SINAMICS S120 Motor Modules (such as the 6SL3120 series), while simultaneously transmitting operational data upstream via PROFINET.

Through the DRIVE-CLiQ interface, the module communicates directly with the SINAMICS S120 Control Unit CU320-2 PN, which acts as the central intelligence for multi-axis drive coordination. The CU320-2 PN aggregates drive status, fault codes, energy consumption data, and speed/torque feedback, then forwards this structured dataset over PROFINET to the plant’s SIMATIC S7-1500 PLC. From there, the data is routed to Siemens WinCC SCADA and operator SIMATIC HMI TP1200 Comfort panels for real-time visualization and alarm management.

For remote monitoring and diagnostics, the PROFINET network connects through an industrial-grade SCALANCE X208 managed Ethernet switch, ensuring deterministic communication with sub-millisecond jitter across the production floor. Remote engineers can access live drive parameters, energy metrics, and fault histories through Siemens TIA Portal or third-party SCADA clients via OPC UA gateways — without interrupting production cycles.

In multi-drive applications such as CNC machining centers, winding machines, or automated conveyor systems, the 6SL3430-6TE21-6AA1 works in tandem with SINAMICS S120 Booksize Motor Modules and Active Interface Modules (6SL3100 series) to deliver synchronized, network-transparent drive control. Variable frequency drives (VFDs) connected downstream benefit from the module’s stable DC link, while upstream systems receive clean, structured PROFINET data packets for analytics and predictive maintenance workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. Legacy drives may speak only USS or Modbus RTU, while modern PLCs demand PROFINET or EtherNet/IP. The result is data isolation — islands of operational intelligence that cannot be aggregated, compared, or acted upon in real time.

The Siemens 6SL3430-6TE21-6AA1 directly addresses this challenge within the S120 ecosystem. By standardizing on PROFINET as the primary communication backbone, it eliminates the need for external protocol converters between the drive layer and the control layer. Drive parameters, energy data, fault diagnostics, and operational states are all natively available on the PROFINET network — accessible to any compliant controller, HMI, or SCADA system without additional middleware.

For production line transparency, the module enables continuous data streaming from the drive to MES and ERP systems, supporting KPI dashboards that track OEE (Overall Equipment Effectiveness), energy consumption per production cycle, and predictive maintenance intervals. Alarm feedback loops are closed in real time: when a drive fault is detected, the SCADA system receives the event within milliseconds, enabling operators to respond before a minor fault escalates into unplanned downtime.

System expansion is equally straightforward. The SINAMICS S120 architecture supports modular scaling — additional Motor Modules, Sensor Modules, or Terminal Modules can be added to the DRIVE-CLiQ ring without reconfiguring the network topology. This plug-and-expand design philosophy ensures that the 6SL3430-6TE21-6AA1 remains a viable network hub as production capacity grows.

Every unit supplied by ZYPLC undergoes functional testing prior to dispatch, with a warranty terms confirmed during quotation covering all hardware defects. Stock is maintained for rapid fulfillment, supporting both urgent replacement orders and planned procurement cycles. Global shipping is available with full export documentation.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SL3430-6TE21-6AA1 over PROFINET?
The module supports PROFINET IRT (Isochronous Real-Time) with cycle times as low as 250 µs, making it suitable for high-speed motion control and synchronized multi-axis applications where deterministic communication is critical.

Q2: Is the 6SL3430-6TE21-6AA1 compatible with third-party SCADA and HMI systems?
Yes. While natively optimized for Siemens WinCC and SIMATIC HMI platforms, the module’s PROFINET interface is an open standard. Third-party SCADA systems supporting PROFINET or OPC UA (via gateway) can integrate with the module for data acquisition and remote monitoring.

Q3: Can the network be expanded without disrupting existing drive operations?
The SINAMICS S120 system supports hot-topology changes within the DRIVE-CLiQ network for certain module types. For PROFINET network expansion, adding managed switches such as the SCALANCE X series allows new nodes to be integrated with minimal disruption to existing communication cycles.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
All 6SL3430-6TE21-6AA1 units are tested for basic functionality before dispatch. ZYPLC provides a warranty terms confirmed during quotation against manufacturing defects, with technical support available for installation and commissioning queries. Replacement or repair is arranged promptly in the event of a warranty claim.
