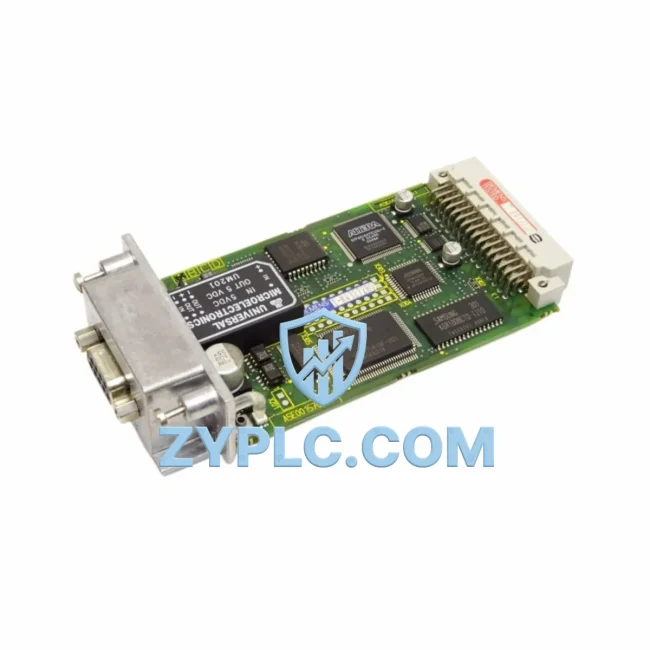

The Siemens 6SN1114-0NB01-0AA0 is a high-performance PROFIBUS communication gateway option module engineered for seamless integration within Simodrive and Sinumerik-based drive and motion control architectures. Designed to bridge the gap between field-level devices and upper-level control systems, this module enables real-time, deterministic data exchange across complex industrial network topologies — making it an essential component in modern smart factory deployments.

In today’s manufacturing environment, the ability to move data reliably from servo drives, spindle controllers, and axis modules up through PLC controllers, SCADA platforms, and MES systems is no longer optional — it is the backbone of operational transparency. The 6SN1114-0NB01-0AA0 fulfills this role by providing a robust PROFIBUS DP interface that connects Simodrive 611 drive units directly into the automation network, enabling cyclic and acyclic data communication with Simatic S7-300 and S7-400 PLCs, as well as Sinumerik 840D CNC controllers.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, is backed by a 12-month warranty, and is available for immediate dispatch via DHL or FedEx to global destinations.

Network Communication Table

Connected Automation Data Flow

Understanding how the 6SN1114-0NB01-0AA0 fits into a live production environment requires tracing the full data path from signal origin to supervisory system. At the field level, sensors and encoders feed positional and velocity data into Simodrive 611 axis modules, where the drive firmware processes torque commands and feedback loops in real time. The 6SN1114-0NB01-0AA0 option module, installed directly into the drive unit’s option slot, captures this drive-level data and transmits it upstream via PROFIBUS DP at speeds up to 12 Mbit/s.

On the controller side, a Simatic S7-400 PLC equipped with a CP 443-5 Extended PROFIBUS communication processor acts as the DP master, polling each drive node cyclically for status words, actual speed values, fault codes, and setpoint acknowledgements. This cyclic exchange — typically completing within a single PROFIBUS bus cycle of under 10 ms — ensures that the PLC’s motion control program always operates on fresh, synchronized drive data.

For multi-axis CNC applications, the Sinumerik 840D sl CNC controller integrates directly with the PROFIBUS network, coordinating interpolated axis movements across multiple 6SN1114-0NB01-0AA0-equipped drive units simultaneously. The NCU (Numerical Control Unit) issues position setpoints and reads back actual values through the same PROFIBUS backbone, enabling sub-millisecond synchronization across spindle and feed axes.

At the SCADA and HMI layer, a Simatic WinCC supervisory system connects via the plant’s Ethernet backbone to the S7 PLC, retrieving aggregated drive data — including running hours, energy consumption, alarm histories, and production counters — for display on operator panels and trend dashboards. Simatic HMI TP1500 Comfort panels installed at machine stations provide local operators with real-time drive status visualization, reducing response time to fault conditions from minutes to seconds.

Remote I/O expansion is handled through ET 200S distributed I/O stations connected on the same PROFIBUS segment, allowing additional digital and analog signals from proximity sensors, temperature transmitters, and pressure transducers to be integrated without additional wiring runs to the central cabinet. This architecture, anchored by the 6SN1114-0NB01-0AA0, creates a unified data fabric across the entire machine cell.

For edge computing and IIoT connectivity, a Simatic IPC427E industrial PC running SINEMA Remote Connect or a third-party edge gateway can tap into the PROFIBUS network via a CP 5622 PCI Express communication card, enabling data forwarding to cloud analytics platforms or MES systems without disrupting the real-time control loop. Variable frequency drives such as the Sinamics S120 — which shares the same Simodrive ecosystem — can also be integrated into the same PROFIBUS segment, providing a consistent communication framework across both legacy Simodrive 611 and next-generation Sinamics drive families.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. Older machine tools running Simodrive 611 drives often operate as standalone units, with no visibility into their operational state from the plant’s central SCADA or MES system. Maintenance teams rely on manual inspection or local HMI readouts to diagnose faults, leading to extended downtime and reactive rather than predictive maintenance strategies.

The 6SN1114-0NB01-0AA0 directly addresses this isolation by providing a standardized PROFIBUS DP interface that integrates Simodrive 611 units into the plant’s existing automation network. Once connected, drive parameters — including actual current, speed feedback, DC bus voltage, and active fault codes — become accessible to the PLC, SCADA, and MES layers in real time. Production line transparency improves immediately: operators can monitor all drive nodes from a single WinCC screen, and maintenance engineers can retrieve diagnostic data remotely without walking the floor.

Protocol unification is another key benefit. In mixed-vendor environments where some machines use PROFIBUS while others use Ethernet-based protocols such as PROFINET or EtherNet/IP, a Simatic S7-1500 PLC with appropriate communication modules can act as a protocol bridge, aggregating data from PROFIBUS-connected Simodrive units and republishing it over PROFINET to higher-level systems. This eliminates the need for parallel wiring infrastructures and allows the 6SN1114-0NB01-0AA0 to remain in service even as the plant migrates toward newer network standards.

System scalability is preserved through PROFIBUS’s support for up to 126 nodes per segment (with repeaters), meaning that additional drive units, remote I/O stations, or communication gateways can be added to the network without architectural redesign. This makes the 6SN1114-0NB01-0AA0 a long-term investment for facilities planning phased automation upgrades.

All units supplied by ZYPLC are tested prior to shipment, ensuring that the PROFIBUS communication interface initializes correctly and that the module’s GSD file integrates cleanly into Step 7 or TIA Portal hardware configuration. This pre-shipment validation eliminates the risk of receiving a non-functional module and reduces commissioning time on site.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6SN1114-0NB01-0AA0?
The module supports PROFIBUS DP transmission rates up to 12 Mbit/s, which is the maximum defined by the IEC 61158 standard. In practice, the actual bus speed is determined by the longest cable segment on the network; for most machine-level installations with cable runs under 100 meters, 12 Mbit/s operation is achievable, delivering bus cycle times well under 10 ms for typical node counts.

Q2: Is the 6SN1114-0NB01-0AA0 compatible with both Simatic Step 7 and TIA Portal engineering environments?
Yes. The module is configured using its GSD (General Station Description) file, which can be imported into both Simatic Manager (Step 7 V5.x) and TIA Portal (V13 and later). The GSD file defines the module’s I/O data structure, allowing the PROFIBUS master — typically an S7-300, S7-400, or S7-1500 PLC — to automatically recognize and parameterize the drive node during hardware configuration.

Q3: How does the module handle network instability or bus interruptions?
The 6SN1114-0NB01-0AA0 implements standard PROFIBUS DP watchdog functionality. If the module loses communication with the DP master for longer than the configured watchdog timeout period, the Simodrive 611 drive will transition to a safe state (typically coast-to-stop or controlled deceleration, depending on drive parameterization). Fault codes are logged locally in the drive and can be retrieved via the PROFIBUS acyclic channel or through the Sinumerik alarm system once communication is restored, supporting rapid remote diagnosis.

Q4: What warranty and quality assurance does ZYPLC provide for this module?
Every 6SN1114-0NB01-0AA0 supplied by ZYPLC carries a 12-month warranty covering hardware defects and communication interface failures. Prior to shipment, each unit undergoes functional testing to verify PROFIBUS initialization, option slot compatibility, and firmware integrity. Units are packaged in anti-static protective materials and shipped via DHL or FedEx express services with full tracking. For volume orders or urgent requirements, contact our team at +86 19859288691 or plc.sales@zyplc.com for lead time confirmation and RFQ processing.
