Siemens 6SN1123-1AA01-0FA1 Industrial Network Interface for SIMODRIVE 611 Systems

Siemens 6SN1123-1AA01-0FA1: Industrial Data Link for SIMODRIVE 611 Smart Factory Networks

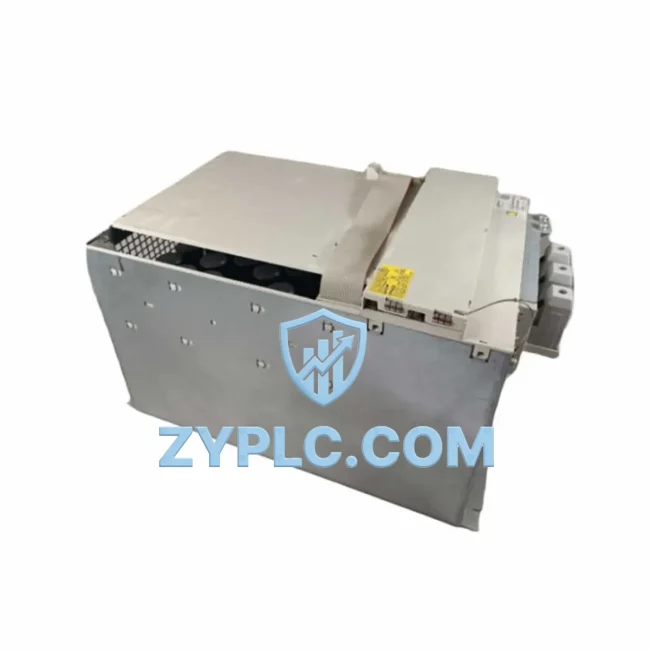

The Siemens 6SN1123-1AA01-0FA1 is a high-performance Power Module engineered for the SIMODRIVE 611 drive platform — one of Siemens’ most widely deployed servo and spindle drive systems in CNC machining, automated production lines, and precision motion control environments. Far beyond a standalone drive component, the 6SN1123-1AA01-0FA1 functions as a critical node in the industrial data chain, enabling seamless energy conversion, real-time feedback, and network-integrated control across the full automation hierarchy.

In modern smart factory deployments, the power module sits at the intersection of field-level hardware and supervisory control systems. Signal acquisition begins at the servo motor encoder, where position and velocity data are captured and transmitted back through the drive’s internal bus to the SIMODRIVE 611 Control Unit — such as the 6SN1118-series or 6SN1121-series modules — which interprets the feedback and issues corrective torque commands in real time. This closed-loop architecture ensures sub-millisecond response times critical for high-precision CNC operations.

Network Communication Table

Connected Automation Data Flow

The 6SN1123-1AA01-0FA1 operates within a tightly integrated automation ecosystem. At the field level, servo motors and spindle drives connect directly to the power module’s DC bus, with encoder signals routed to the paired SIMODRIVE 611 Control Unit (6SN1118-0NH10-0AA1) for real-time position regulation. The control unit communicates upstream via PROFIBUS-DP or PROFINET to a SIMATIC S7-300 or S7-400 PLC, which coordinates multi-axis motion sequences, tool change logic, and safety interlocks across the production cell.

At the supervisory level, the PLC exchanges data with SINUMERIK 840D sl CNC controllers, which manage part programs, axis interpolation, and operator interface functions. The SIMATIC HMI TP1500 or MP377 panels provide operators with real-time axis position, drive status, alarm visualization, and manual override capability — all fed by live data flowing from the 6SN1123-1AA01-0FA1 through the drive bus hierarchy.

For plant-wide visibility, a SIMATIC WinCC SCADA system aggregates drive performance data — including DC bus voltage, current draw, thermal status, and fault codes — from multiple SIMODRIVE 611 nodes across the factory floor. This enables production managers to monitor drive health, track OEE metrics, and trigger predictive maintenance workflows without interrupting live production. Remote diagnostic access is further supported through SINEMA Remote Connect or SCALANCE M-series industrial routers, allowing Siemens service engineers or in-house maintenance teams to interrogate drive parameters and upload firmware updates over secure VPN tunnels.

In multi-drive cabinet configurations, the 6SN1123-1AA01-0FA1 shares a common DC bus with companion SIMODRIVE 611 feed modules (6SN1146-series) and regenerative supply units, enabling energy recovery during deceleration phases and reducing overall cabinet power consumption. The modular architecture also supports hot-swap expansion — additional axis modules such as the 6SN1123-1AB00-series can be added to the DC bus rail without rewiring the supply infrastructure, making system scaling straightforward for capacity expansion projects.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy CNC and drive environments is protocol fragmentation — older SIMODRIVE 611 installations may rely on proprietary Siemens drive bus protocols that do not natively expose data to modern Ethernet-based SCADA or MES platforms. The 6SN1123-1AA01-0FA1, when paired with a SIMATIC S7 PLC acting as a protocol gateway, bridges this gap by translating drive-level status and diagnostic data into PROFINET or OPC UA frames that upper-level systems can consume directly.

Data silos are further eliminated through structured drive parameterization via STARTER commissioning software or SINAMICS Startdrive, which allows engineers to map drive variables — torque setpoints, speed references, fault registers — directly to PLC data blocks accessible by SCADA historians. This creates a continuous, auditable data trail from motor shaft to enterprise dashboard, enabling real-time production transparency, shift-level performance reporting, and automated alarm escalation when drive parameters exceed defined thresholds.

For sites undergoing digital transformation, the 6SN1123-1AA01-0FA1 supports phased integration: existing SIMODRIVE 611 cabinets can be retrofitted with PROFIBUS-to-PROFINET proxy modules or IE/PB Link PN IO gateways to bring legacy drive data onto the plant Ethernet backbone without replacing the drive hardware. This approach protects capital investment while delivering the remote monitoring, predictive analytics, and OEE visibility that Industry 4.0 initiatives demand.

Every 6SN1123-1AA01-0FA1 unit supplied by ZYPLC undergoes full functional testing prior to shipment — including DC bus charge/discharge cycling, control interface verification, and encoder feedback validation — ensuring that the module arrives ready for immediate installation. Stock is maintained for fast global dispatch, and all units are covered by a 12-Month Warranty with dedicated technical support.

Industrial Connectivity FAQ

Q1: What communication protocols does the SIMODRIVE 611 system support when integrated with a SIMATIC PLC?
The SIMODRIVE 611 platform communicates with SIMATIC S7 PLCs primarily via PROFIBUS-DP at the field level. When a PROFINET-capable control unit or gateway module is used, the drive data can be exposed over PROFINET IO, enabling integration with modern SCADA systems, MES platforms, and OPC UA-based data historians with minimal latency.

Q2: Is the 6SN1123-1AA01-0FA1 compatible with existing SIMODRIVE 611 cabinet configurations?
Yes. The 6SN1123-1AA01-0FA1 is designed for direct compatibility with the SIMODRIVE 611 modular cabinet system, sharing the common DC bus rail with feed modules, axis modules, and monitoring units. No additional interface hardware is required for standard replacement or expansion within an existing 611-series cabinet.

Q3: How does ZYPLC ensure network stability and reliability of supplied drive modules?
Each unit undergoes pre-shipment functional testing covering DC bus integrity, control interface communication, and thermal performance. Units are verified against Siemens factory specifications before dispatch. The 12-Month Warranty covers component failure under normal operating conditions, with technical support available for commissioning and integration queries.

Q4: Can the SIMODRIVE 611 system be expanded without replacing the existing power module?
Yes. The modular DC bus architecture of the SIMODRIVE 611 allows additional axis modules to be added to an existing cabinet rail, sharing the supply infrastructure of the 6SN1123-1AA01-0FA1 power module. System expansion is achievable without rewiring the main supply, making it cost-effective to scale drive capacity as production requirements grow.
