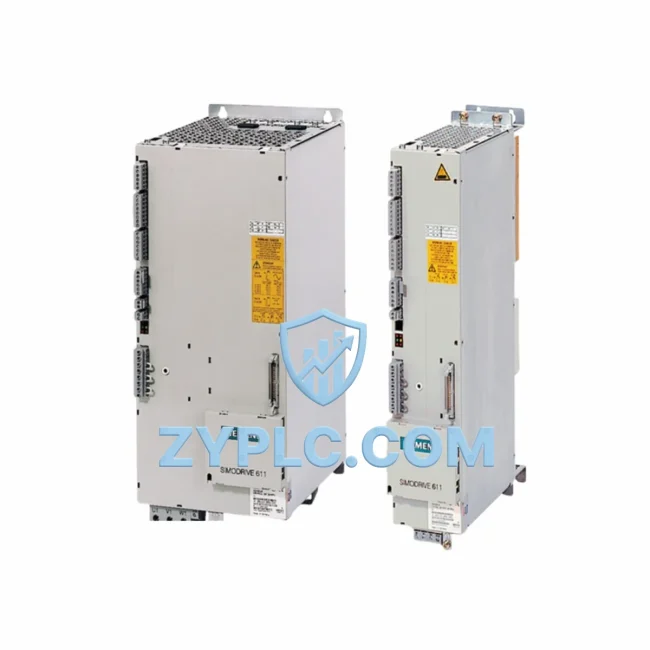

Siemens 6SN1145-1BB00-0FA1 Network Interface SIMODRIVE 611

Siemens 6SN1145-1BB00-0FA1 Network Interface SIMODRIVE 611: Industrial Data Link for Smart Factory Connectivity

The Siemens 6SN1145-1BB00-0FA1 is a PROFIBUS-DP communication interface module engineered for the SIMODRIVE 611 drive platform — one of Siemens’ most widely deployed servo and spindle drive families in precision manufacturing, CNC machining, and automated production lines. Designed to bridge field-level drive hardware with supervisory control networks, this module enables seamless, high-speed data exchange between servo drives, PLC controllers, SCADA systems, and HMI terminals across the full automation hierarchy.

In modern smart factory environments, the ability to transmit real-time drive status, torque feedback, speed references, fault diagnostics, and parameter data across a unified industrial network is no longer optional — it is the foundation of production transparency and predictive maintenance. The 6SN1145-1BB00-0FA1 fulfills this role by integrating the SIMODRIVE 611 drive system directly into the PROFIBUS-DP backbone, enabling deterministic, cycle-time-critical communication with upstream controllers and monitoring platforms.

Network Communication Table

Connected Automation Data Flow

The 6SN1145-1BB00-0FA1 sits at the intersection of drive-level hardware and plant-wide communication infrastructure. In a typical SIMODRIVE 611 installation, the data flow begins at the servo motor and encoder — where position, speed, and torque signals are captured by the drive’s internal control board, such as the 6SN1118-0DM33-0AA2 closed-loop control module. These signals are processed locally within the SIMODRIVE 611 chassis and then transmitted upstream via the 6SN1145-1BB00-0FA1 PROFIBUS interface to the machine’s primary controller.

At the controller level, a Siemens SINUMERIK 840D sl CNC system or a SIMATIC S7-300 PLC — equipped with a 6GK7343-1EX30-0XE0 PROFIBUS CP module — receives the drive data cyclically, enabling real-time axis interpolation, feed override, and spindle synchronization. The PROFIBUS-DP network, operating at up to 12 Mbit/s, ensures that command and feedback cycles remain within the microsecond-range latency requirements of precision servo control.

For multi-axis systems, the 6SN1145-1BB00-0FA1 works in conjunction with the 6SN1145-1BA01-0DA1 infeed/regenerative feedback module, which manages DC bus energy and communicates power status back to the PROFIBUS master. The 6SN1123-1AA00-0LA1 power module and 6SN1146-1BB01-0BA1 monitoring module further extend the drive system’s diagnostic transparency, feeding fault codes, temperature warnings, and current overload events directly into the SCADA layer via the PROFIBUS network.

At the supervisory level, a Siemens WinCC SCADA platform or a third-party HMI terminal aggregates drive data from multiple SIMODRIVE 611 axes, displaying real-time production metrics, alarm histories, and energy consumption trends. Remote I/O nodes — such as the ET 200S distributed I/O system — can be integrated on the same PROFIBUS segment, allowing sensor signals, proximity switches, and pneumatic valve feedback to be co-transmitted alongside drive data without requiring a separate fieldbus infrastructure.

For facilities implementing edge computing or IIoT connectivity, an edge gateway such as the Siemens SINEMA Remote Connect appliance or a compatible OPC-UA gateway can bridge the PROFIBUS segment to Ethernet-based plant networks, enabling cloud-level analytics, remote parameter access, and predictive maintenance dashboards — all anchored by the reliable PROFIBUS communication established through the 6SN1145-1BB00-0FA1.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation manufacturing environments is protocol fragmentation — where servo drives, PLCs, remote I/O, and HMI systems each operate on incompatible communication standards, creating data silos that prevent unified monitoring and control. The Siemens 6SN1145-1BB00-0FA1 directly addresses this by providing a standardized PROFIBUS-DP interface for the SIMODRIVE 611 platform, eliminating the need for proprietary point-to-point wiring between the drive and the controller.

By connecting the SIMODRIVE 611 to the PROFIBUS backbone, plant engineers gain full production line transparency: every axis position, drive fault, motor temperature, and cycle count becomes visible in real time at the SCADA or HMI level. This eliminates the manual inspection rounds and reactive maintenance cycles that characterize isolated drive systems. When a drive fault occurs — whether an overcurrent trip, encoder error, or DC bus undervoltage — the 6SN1145-1BB00-0FA1 transmits the diagnostic code to the PLC and SCADA within one PROFIBUS cycle, enabling immediate alarm notification and remote fault analysis without dispatching a technician to the machine floor.

System expansion is equally straightforward. Additional SIMODRIVE 611 axes can be added to the PROFIBUS segment without rewiring the control cabinet — each new drive module simply receives a unique PROFIBUS node address and is recognized by the master controller during the next network scan. This plug-and-expand architecture supports phased production capacity increases and machine retrofits without disrupting existing automation infrastructure.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying PROFIBUS communication integrity, module identification, and parameter read/write capability before dispatch. Each 6SN1145-1BB00-0FA1 is covered by a 12-month warranty and is available from stock for immediate worldwide shipment.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS-DP transmission speed supported by the 6SN1145-1BB00-0FA1?
The module supports PROFIBUS-DP transmission rates up to 12 Mbit/s, fully compliant with IEC 61158. The actual operating baud rate is automatically negotiated by the PROFIBUS master during network initialization, ensuring compatibility with mixed-speed network segments.

Q2: Is the 6SN1145-1BB00-0FA1 compatible with SIMATIC S7-400 and SINUMERIK 840D controllers?
Yes. The module is compatible with all PROFIBUS-DP master controllers, including SIMATIC S7-300, S7-400, S7-1500 (via CM 1542-5 PROFIBUS module), and SINUMERIK 840D/840D sl CNC systems. It supports both PROFIBUS-DP V0 cyclic data exchange and V1 acyclic parameter access (used for drive parameterization via SIMATIC PDM or STARTER software).

Q3: How does the module contribute to network stability in multi-axis drive systems?
The 6SN1145-1BB00-0FA1 implements the PROFIBUS-DP slave protocol with hardware-level bus termination support and automatic baud rate detection, minimizing network jitter and ensuring deterministic cycle times even in high-node-count installations. The module’s onboard diagnostics continuously monitor bus communication quality and report network errors to the PROFIBUS master, enabling proactive fault isolation before production is impacted.

Q4: What warranty and testing does ZYPLC provide for this module?
Every 6SN1145-1BB00-0FA1 supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including PROFIBUS communication testing, module self-diagnostic checks, and visual inspection for connector and board integrity. In-stock units are available for same-day or next-day shipment to global destinations.
