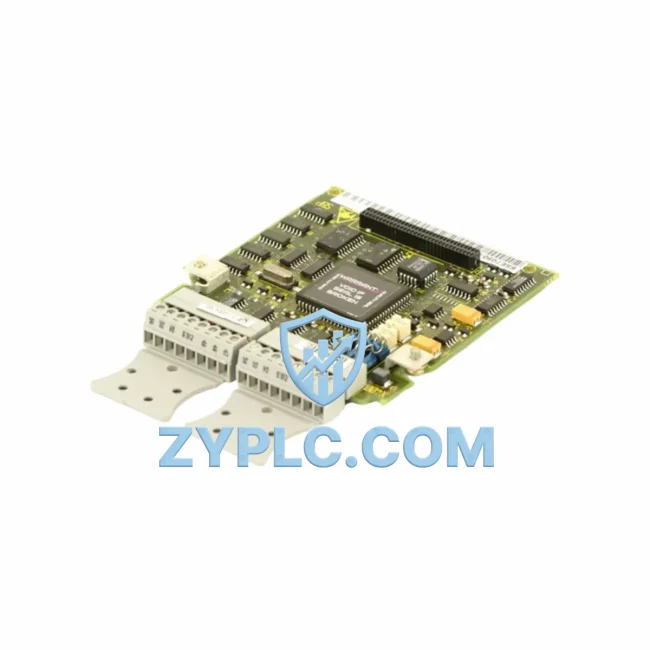

The Siemens 6SX7010-0KC00 is a PROFIBUS Communication Gateway engineered for seamless integration within Siemens Masterdrives drive systems. Designed to serve as the critical data bridge between field-level devices and upper-level control and monitoring platforms, this gateway enables reliable, high-speed protocol conversion and network communication across complex industrial automation architectures. Whether deployed in automotive assembly lines, chemical processing plants, energy management systems, or discrete manufacturing cells, the 6SX7010-0KC00 delivers the connectivity backbone that modern smart factories demand.

In today’s industrial landscape, data isolation between field devices and supervisory systems remains one of the most persistent challenges. The 6SX7010-0KC00 addresses this directly by providing a standardized PROFIBUS DP interface that connects Masterdrives frequency inverters and servo controllers to higher-level SIMATIC S7-1500 PLCs, SCADA platforms, and HMI systems. This eliminates proprietary communication barriers and enables transparent, real-time data exchange across the entire automation pyramid.

Network Communication Table

Connected Automation Data Flow

The 6SX7010-0KC00 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and distributed I/O modules such as the ET 200SP — transmit process signals to the Masterdrives inverter. The 6SX7010-0KC00 option board, installed directly into the Masterdrives unit (such as the 6SE7021-0EP50 or 6SE7023-4TC61 compact inverter), converts these drive-level signals into PROFIBUS DP telegrams that travel upstream to the control layer.

At the control layer, a SIMATIC S7-1500 PLC or S7-300 CPU receives real-time speed references, torque feedback, fault codes, and operational status from the drive via PROFIBUS. The PLC processes this data and issues closed-loop control commands back to the inverter — all within deterministic cycle times that PROFIBUS DP guarantees. This bidirectional data flow is essential for coordinated multi-axis motion, process interlocking, and energy optimization.

For network infrastructure, SCALANCE X208 or SCALANCE XC208 managed industrial switches provide the Ethernet backbone that connects PROFIBUS segments (via DP/PA links or PROFIBUS-to-Ethernet gateways) to the plant-wide SCADA system. Operators monitoring the WinCC SCADA platform or a SIMATIC HMI TP1200 Comfort panel can view live drive parameters, trend historical data, and acknowledge alarms — all sourced from the 6SX7010-0KC00’s PROFIBUS data stream.

In multi-drive applications, the 6SX7010-0KC00 enables the Masterdrives unit to participate as a PROFIBUS slave alongside other network nodes, including the CBP2 (Communication Board PROFIBUS) modules used in SIMOVERT VC drives and the 6SX7010-0KA00 USS/serial communication option. This allows a single PROFIBUS master — typically the S7 PLC — to orchestrate dozens of drives, remote I/O stations, and intelligent field devices from a single network segment, dramatically reducing wiring complexity and commissioning time.

Edge computing nodes, such as the SIMATIC IPC427E industrial PC or third-party edge gateways, can tap into the PROFIBUS network to perform local data preprocessing, OPC UA tunneling, and cloud forwarding — extending the 6SX7010-0KC00’s data reach all the way to MES and ERP systems for production analytics and predictive maintenance workflows.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy drive systems that use proprietary or non-standard communication interfaces, creating data silos that prevent plant-wide visibility. The 6SX7010-0KC00 resolves this by providing a fully standardized PROFIBUS DP interface on the Masterdrives platform, making drive data immediately accessible to any PROFIBUS-compatible master — without custom programming or protocol adapters.

For sites transitioning from point-to-point analog wiring to digital fieldbus networks, the 6SX7010-0KC00 enables a phased migration strategy. Existing Masterdrives units can be upgraded with this communication board, instantly joining the PROFIBUS network and contributing real-time data to the SCADA layer. This approach protects capital investment in existing drive hardware while delivering the transparency and remote monitoring capabilities of a modern smart factory.

Remote diagnostics is another critical capability enabled by the 6SX7010-0KC00. Maintenance engineers can query drive fault histories, monitor thermal status, and adjust operating parameters remotely through the PROFIBUS network — reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostics. When integrated with a SIMATIC S7 PLC running TIA Portal diagnostics routines, the system can automatically generate alarm notifications and maintenance work orders based on drive condition data.

Production line transparency is further enhanced when the 6SX7010-0KC00 is combined with SIMATIC WinCC or third-party SCADA platforms. Real-time OEE (Overall Equipment Effectiveness) dashboards can display drive utilization rates, energy consumption per production cycle, and fault frequency trends — giving plant managers the data they need to optimize throughput and reduce energy costs.

Industrial Connectivity FAQ

Q1: What communication latency can be expected with the 6SX7010-0KC00 on a PROFIBUS DP network?
PROFIBUS DP operates with deterministic cycle times typically ranging from 1 ms to 10 ms depending on the number of slaves and baud rate. At 12 Mbit/s with a small number of nodes, cycle times well under 5 ms are achievable, making the 6SX7010-0KC00 suitable for time-critical drive control applications.

Q2: Is the 6SX7010-0KC00 compatible with both PROFIBUS DP V0 and V1 masters?
Yes. The 6SX7010-0KC00 supports PROFIBUS DP V0 cyclic data exchange and V1 acyclic parameter access (used for drive parameterization via SIMATIC PDM or TIA Portal), ensuring compatibility with a wide range of Siemens and third-party PROFIBUS masters.

Q3: Can the 6SX7010-0KC00 be used to expand an existing PROFIBUS network without replacing the host PLC?
Absolutely. As a PROFIBUS slave device, the 6SX7010-0KC00 integrates into any existing PROFIBUS DP master network. The Masterdrives unit simply appears as an additional slave node, and the GSD (General Station Description) file can be imported into TIA Portal or STEP 7 for seamless configuration — no PLC replacement required.

Q4: What warranty and testing standards apply to the 6SX7010-0KC00 supplied by ZYPLC?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify communication integrity and protocol compliance before dispatch. Global shipping is available via DHL and FedEx with full tracking and export documentation.
