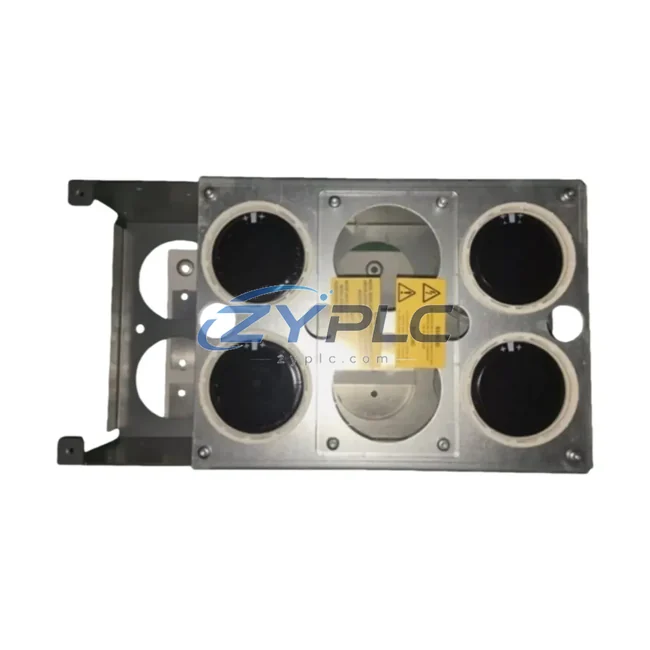

Siemens 6SY7000-0AE60 Cooling Module for SINAMICS

Siemens 6SY7000-0AE60 Cooling Module for SINAMICS Drive

The Siemens 6SY7000-0AE60 is a precision-engineered fan and cooling module designed to sustain thermal stability across the full operational lifecycle of SINAMICS variable-speed drive systems. In modern industrial automation, thermal management is not a peripheral concern — it is a foundational element of system reliability, uptime assurance, and long-term asset protection. The 6SY7000-0AE60 addresses this requirement directly, providing consistent airflow regulation that protects power electronics, extends component service life, and maintains drive performance under continuous duty cycles in demanding environments.

Within a layered automation architecture, the cooling module occupies a critical support role at the power and drive layer. While the control layer — typically managed by a Siemens SIMATIC S7-300, S7-400, or S7-1500 series PLC — issues speed references and torque commands through PROFIBUS-DP or PROFINET IO, the SINAMICS drive unit converts those commands into precise motor output. The 6SY7000-0AE60 ensures that the power conversion stage within the drive cabinet operates within its rated thermal envelope at all times. Without effective cooling, even a correctly configured drive system will experience derating, nuisance trips, or premature IGBT failure — all of which compromise system availability and increase maintenance costs.

The module integrates directly into the SINAMICS S120 drive system chassis, replacing the OEM cooling fan assembly with a component that matches the original mechanical footprint, electrical interface, and airflow specification. This direct compatibility eliminates the need for custom mounting adapters or wiring modifications, reducing installation time and minimizing the risk of commissioning errors. Engineers working with SINAMICS S120 booksize or chassis format drive units will find the 6SY7000-0AE60 a straightforward replacement that restores full thermal capacity without requiring firmware changes or parameter re-entry.

Product Specification Table

System Compatibility Notes

The 6SY7000-0AE60 does not operate in isolation — its value is fully realized when considered within the context of a complete SINAMICS-based drive system. A typical coordinated architecture built around this cooling module includes the following components working in concert:

At the control layer, a Siemens SIMATIC S7-1500 CPU (such as the CPU 1516-3 PN/DP) manages the overall automation sequence, issuing speed setpoints and enable signals to the SINAMICS S120 drive via PROFINET IO. The drive’s SINAMICS S120 Control Unit CU320-2 PN receives these commands and coordinates the modulation of the power modules. The SINAMICS S120 Active Line Module (ALM) provides regulated DC bus voltage to the drive system, while individual SINAMICS S120 Motor Modules (booksize format) convert DC bus power into variable-frequency AC output for connected motors.

The 6SY7000-0AE60 cooling module maintains the thermal environment within the drive cabinet that houses these power components. Alongside the cooling module, a SINAMICS S120 Braking Module may be installed to dissipate regenerative energy during deceleration cycles, and a SINAMICS S120 Capacitor Module provides DC bus buffering to ride through brief supply interruptions. The SITOP PSU8600 power supply feeds the 24 VDC control circuit, powering the CU320-2 PN, I/O terminals, and auxiliary relays within the cabinet.

For I/O integration, Siemens ET 200SP distributed I/O stations connected via PROFINET extend digital and analog signal acquisition to field devices — sensors, actuators, and feedback transducers — without routing all field wiring back to the main cabinet. The SIMATIC HMI KTP700 Basic panel provides the operator interface for drive status monitoring, fault acknowledgment, and parameter visualization at the machine level. Terminal modules such as the Siemens 6ES7193-6BP20-0DC0 base unit for ET 200SP ensure reliable signal termination and simplify cabinet wiring during commissioning and future expansion.

This coordinated architecture — spanning control, power conversion, I/O distribution, operator interface, and thermal management — represents the standard design pattern for SINAMICS-based motion control systems in industrial applications. The 6SY7000-0AE60 is the component that ensures the power layer of this architecture remains thermally stable under all operating conditions.

Industrial Application Notes

The 6SY7000-0AE60 finds application across a broad range of industries where SINAMICS S120 drive systems are deployed for variable-speed motor control:

Manufacturing and Assembly Lines: In automotive body shop conveyors, transfer lines, and robotic welding cells, SINAMICS S120 drives control servo axes and conveyor motors with high dynamic response. The cooling module ensures that drives operating at high duty cycles — with frequent acceleration and deceleration — maintain thermal margins that prevent nuisance trips during production shifts.

Power Generation and Utilities: In power plant auxiliary systems, including boiler feed pump drives, induced draft fan drives, and cooling water pump drives, SINAMICS S120 units operate continuously at high load. The 6SY7000-0AE60 sustains the thermal environment required for 24/7 operation, supporting the reliability targets demanded by utility operators.

Petrochemical and Refinery Applications: Process compressor drives and extruder drives in petrochemical plants require drives that can sustain rated output in high-ambient-temperature environments. Replacing a degraded cooling module with the 6SY7000-0AE60 restores full drive capacity without requiring a complete drive replacement, minimizing capital expenditure and plant downtime.

Water and Wastewater Treatment: Variable-speed pump drives in water treatment facilities operate across wide flow ranges to match demand. The cooling module supports the long service intervals typical of water utility operations, where maintenance windows are infrequent and component reliability is paramount.

Mining and Metals Processing: In ore processing, conveyor drives, and mill drives, SINAMICS S120 systems handle high-inertia loads with demanding thermal profiles. The 6SY7000-0AE60 provides the airflow capacity needed to sustain drive output under these conditions, supporting continuous production targets.

Packaging and Material Handling: High-speed packaging lines with multiple coordinated axes rely on SINAMICS S120 multi-axis drive systems. Cooling module integrity is essential to maintaining synchronization accuracy and preventing thermal-induced derating that would reduce line throughput.

Product Compatibility FAQ

Q1: Is the 6SY7000-0AE60 compatible with all SINAMICS S120 chassis formats, and does replacement require drive reconfiguration?
The 6SY7000-0AE60 is designed as a direct OEM replacement for the fan and cooling assembly in compatible SINAMICS S120 drive units. It matches the original mechanical interface, electrical connector, and airflow specification, so no drive reconfiguration, parameter changes, or firmware updates are required after installation. Engineers should verify the specific S120 chassis variant against the Siemens spare parts catalog to confirm fitment before ordering. No fieldbus configuration changes are needed, as the cooling module is a passive thermal component with no communication interface.

Q2: How does replacing the cooling module affect the overall system architecture and redundancy design?
Replacing a degraded or failed 6SY7000-0AE60 restores the drive’s full thermal capacity, which directly impacts system availability. In architectures where redundant drive paths or hot-standby configurations are implemented using SINAMICS S120 with redundant Active Line Modules, a thermally compromised drive in one path can force unplanned switchover to the standby path, increasing wear on the backup system. Proactive cooling module replacement — supported by the warranty terms confirmed during quotation — is a standard maintenance practice in high-availability drive architectures to prevent cascading thermal failures.

Q3: What is covered under the warranty terms confirmed during quotation, and how does it support long-term maintenance planning?
The 6SY7000-0AE60 is supplied with a warranty terms confirmed during quotation covering manufacturing defects and premature failure under normal operating conditions. This warranty period aligns with standard industrial maintenance planning cycles, allowing maintenance engineers to schedule cooling module inspections and replacements as part of annual drive system overhauls. For facilities operating SINAMICS S120 systems in continuous-duty applications, maintaining a stock of 6SY7000-0AE60 modules as critical spares — supported by the warranty — reduces mean time to repair (MTTR) and supports the overall system uptime targets defined in the facility’s maintenance strategy.
