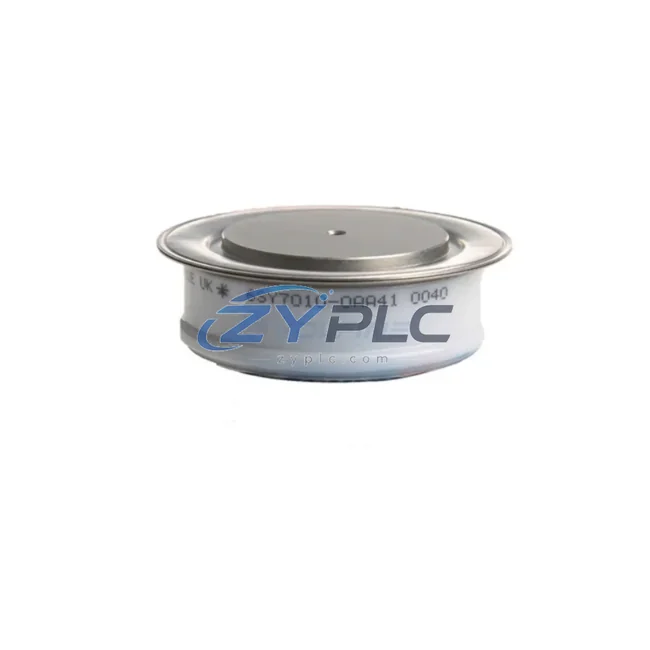

Siemens 6SY7010-0AA40 Thyristor Control Module for SIMOREG Systems

Siemens 6SY7010-0AA40 Industrial Network Interface for SIMOREG Systems: Precision Data Link for Smart Factory DC Drive Automation

The Siemens 6SY7010-0AA40 is a high-performance PROFIBUS-DP thyristor control module engineered for the SIMOREG DC Master drive platform. Designed to serve as a critical industrial network interface, this module bridges field-level power electronics with upper-level automation systems — enabling seamless, real-time data exchange across the entire smart factory data chain. From signal acquisition at the drive level to protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, the 6SY7010-0AA40 delivers the connectivity backbone that modern industrial sites demand.

In today’s converging OT/IT environments, DC drive systems must communicate reliably with PLCs, SCADA platforms, HMI terminals, and edge computing gateways. The 6SY7010-0AA40 fulfills this role by integrating directly into the SIMOREG DC Master’s modular architecture, providing a standardized PROFIBUS-DP communication channel that supports cyclic and acyclic data exchange at up to 12 Mbit/s. This ensures that torque setpoints, speed references, fault codes, and diagnostic data are transmitted with minimal latency — a prerequisite for closed-loop process control in steel mills, paper machines, extruders, and winding applications.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 6SY7010-0AA40 requires viewing it within the full industrial data flow architecture. At the field level, current and voltage sensors feed analog signals into the SIMOREG DC Master drive, where the thyristor firing angle is precisely regulated. The 6SY7010-0AA40 module translates this drive-level data into PROFIBUS-DP telegrams, making it immediately accessible to a Siemens SIMATIC S7-300 or S7-400 PLC acting as the PROFIBUS master. The PLC then aggregates data from multiple field devices — including Siemens ET 200M remote I/O stations distributed along the production line — and forwards process variables upward to a WinCC SCADA system for real-time visualization and alarm management.

In multi-drive configurations, the 6SY7010-0AA40 enables coordinated speed and torque control across several SIMOREG 6RA7085 or 6RA7090 DC converters operating on the same PROFIBUS segment. Each drive node is individually addressable, allowing the SIMATIC S7 master to issue independent setpoints while simultaneously reading back actual values, fault registers, and thermal status data. This architecture eliminates the need for dedicated point-to-point wiring between the control room and each drive cabinet, dramatically reducing installation complexity and improving system scalability.

At the HMI layer, a Siemens TP1500 Comfort Panel connected via PROFIBUS or PROFINET (through a PN/DP coupler) provides operators with live drive status, speed trends, and fault history. When a thyristor overcurrent event is detected, the 6SY7010-0AA40 immediately propagates the fault telegram to the S7 PLC, which triggers an alarm on the WinCC HMI and simultaneously logs the event to the MES database — all within a single PROFIBUS cycle time of less than 10 ms. For sites requiring edge analytics, a Siemens SINEMA Remote Connect gateway or a SCALANCE X208 industrial Ethernet switch can bridge the PROFIBUS segment to the plant’s Ethernet backbone, enabling remote diagnostics from any authorized workstation without interrupting production.

Power supply stability for the communication module is ensured by a Siemens SITOP PSU100S 24 V DC power supply unit, which provides the regulated voltage required for consistent PROFIBUS signal integrity. In applications where legacy serial devices must also be integrated, a Siemens USS/PROFIBUS converter module can be added to the network, allowing older SIMOREG 6RA24 or 6RA28 drives to participate in the same PROFIBUS segment alongside the 6SY7010-0AA40-equipped units.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of equipment from different generations and manufacturers, each speaking a different communication dialect. The 6SY7010-0AA40 directly addresses this by providing a standardized PROFIBUS-DP interface that is universally recognized by Siemens SIMATIC controllers, third-party PROFIBUS masters, and SCADA systems with PROFIBUS OPC server support. Sites that previously relied on manual data collection or proprietary serial links can migrate to a unified PROFIBUS network without replacing their existing SIMOREG drive hardware — the 6SY7010-0AA40 slots directly into the drive’s option board bay, preserving the capital investment in the power electronics while adding full network transparency.

Data isolation — where drive performance data remains trapped inside the drive cabinet and never reaches the production management system — is eliminated through the module’s cyclic data exchange capability. Speed actual values, current setpoints, DC bus voltage, and fault codes are continuously broadcast on the PROFIBUS segment, making them available to any authorized master device in real time. This transparency is the foundation of production line digitization: maintenance teams can monitor drive health trends remotely, quality engineers can correlate speed deviations with product defects, and plant managers can access OEE dashboards that reflect actual drive utilization rather than estimated values.

For system expansion, the PROFIBUS-DP architecture supported by the 6SY7010-0AA40 accommodates up to 126 nodes per segment (with repeaters), making it straightforward to add new drives, remote I/O stations, or communication gateways as production capacity grows. The module’s GSD file-based configuration ensures that any new PROFIBUS master can automatically recognize the 6SY7010-0AA40’s data structure without custom programming, reducing commissioning time and the risk of configuration errors.

Remote monitoring and diagnostics are further enhanced by the module’s support for PROFIBUS-DP V1 acyclic services, which allow the SIMATIC S7 PLC or a dedicated diagnostic tool to read and write drive parameters on demand — without interrupting the cyclic process data exchange. This capability is essential for predictive maintenance workflows, where parameter trending and fault log retrieval must occur transparently in the background while the drive continues to operate at full capacity.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS-DP transmission speed supported by the 6SY7010-0AA40, and does it affect communication latency in real-time control loops?
The 6SY7010-0AA40 supports PROFIBUS-DP baud rates from 9.6 kbit/s up to 12 Mbit/s with automatic baud rate detection. At 12 Mbit/s with a typical network of 8–16 drive nodes, the PROFIBUS cycle time is well under 5 ms, which is fully compatible with the speed control loop update rates of the SIMOREG DC Master. For applications requiring tighter synchronization, the baud rate and network topology should be optimized during commissioning.

Q2: Is the 6SY7010-0AA40 compatible with third-party PROFIBUS masters and SCADA systems, or is it limited to Siemens SIMATIC controllers?
The module is fully compliant with the EN 50170 PROFIBUS-DP standard and ships with a GSD (General Station Description) file that can be imported into any certified PROFIBUS master configuration tool. This means it is compatible with third-party PLCs, DCS systems, and SCADA platforms that support PROFIBUS-DP, including those from Rockwell, ABB, and Honeywell, provided the master supports the standard DP V0 or V1 protocol.

Q3: How is network stability ensured in electrically noisy industrial environments such as steel plants or large motor rooms?
PROFIBUS-DP uses RS-485 differential signaling, which provides inherent immunity to common-mode electrical noise. The 6SY7010-0AA40 is designed to operate within the SIMOREG drive cabinet environment, where EMC shielding and proper cable grounding practices are standard. For long cable runs or high-noise environments, PROFIBUS repeaters and optical fiber segments can be inserted into the network without affecting the module’s operation. Siemens recommends following the PROFIBUS installation guidelines (PI Order No. 2.111) for cable routing and termination.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed on the 6SY7010-0AA40?
Every 6SY7010-0AA40 unit supplied by ZYPLC undergoes a pre-shipment functional test that verifies PROFIBUS communication initialization, parameter read/write via acyclic services, and basic drive interface signaling. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team is available to support installation and commissioning queries throughout the warranty period.
