Siemens 6XV1870-3QH10 Industrial Network Interface for PROFINET Systems

Siemens 6XV1870-3QH10: Industrial Data Link for PROFINET Smart Factory Networks

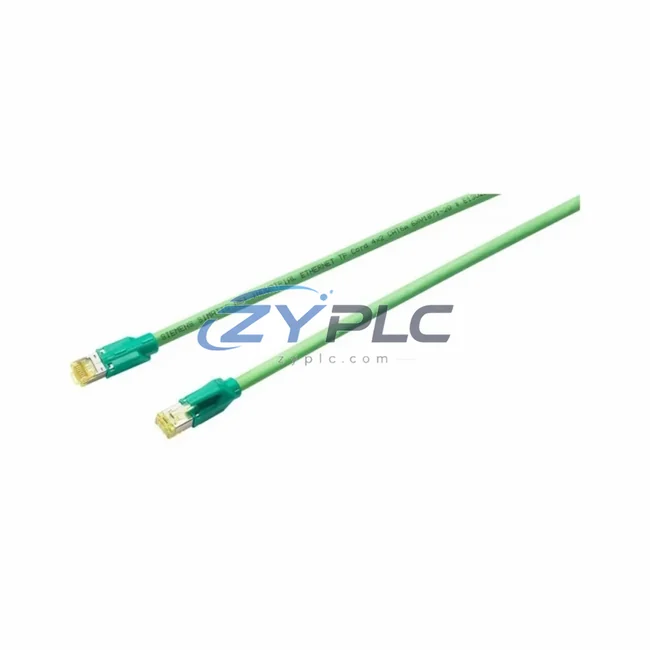

The Siemens 6XV1870-3QH10 is a high-performance Industrial Ethernet TP Cord engineered for PROFINET communication in demanding smart factory environments. Designed to serve as the physical backbone of industrial data transmission, this cable enables seamless, real-time connectivity between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, sensors, and upper-level management systems. Whether you are building a new production line or expanding an existing automation network, the 6XV1870-3QH10 delivers the signal integrity and mechanical durability required for continuous industrial operation.

In modern smart manufacturing, data flows across multiple layers — from the sensor level up through the control layer to the enterprise network. The 6XV1870-3QH10 is purpose-built to support this multi-layer architecture, ensuring that every node in the network communicates with minimal latency and maximum reliability. Its pre-assembled RJ45 connectors and industrial-grade shielding make it a plug-and-play solution for PROFINET topologies, reducing installation time and eliminating field-termination errors that can compromise network stability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical PROFINET-based smart factory deployment, the Siemens 6XV1870-3QH10 TP Cord connects the SIMATIC S7-1500 PLC controller to distributed ET 200SP remote I/O stations on the shop floor. Signal data from field-level sensors — including pressure transmitters, proximity switches, and temperature probes — is aggregated at the ET 200SP I/O modules and transmitted over the PROFINET network via the 6XV1870-3QH10 cable to the S7-1500 CPU for real-time processing.

At the drive level, Siemens SINAMICS G120 variable frequency drives are integrated into the same PROFINET segment, with the 6XV1870-3QH10 providing the physical link for cyclic process data exchange and acyclic parameter access. This allows the PLC to monitor drive speed, torque, and fault status in real time, enabling closed-loop control without additional communication gateways.

The network topology is managed through a SCALANCE X208 industrial Ethernet switch, which aggregates multiple 6XV1870-3QH10 cord connections from field devices and routes traffic to the SIMATIC S7-1500 controller and the SIMATIC HMI TP1200 Comfort panel. Operators can visualize live process data, configure alarm thresholds, and acknowledge fault conditions directly from the HMI, with all data flowing through the PROFINET backbone established by the 6XV1870-3QH10 cabling infrastructure.

For SCADA integration, the SIMATIC WinCC SCADA system connects to the PROFINET network via an IE/PB Link PN IO gateway, which bridges legacy PROFIBUS DP devices into the modern PROFINET architecture. The 6XV1870-3QH10 cord provides the uplink between the gateway and the Ethernet switch, ensuring that historical data logging, trend analysis, and remote alarm notification functions operate without interruption. Edge computing nodes, such as the SIMATIC IPC427E industrial PC, also connect to the network through the same cabling standard, enabling local data preprocessing and OPC UA data forwarding to cloud-based MES and ERP platforms.

For remote diagnostics, the SINEMA Remote Connect server communicates with on-site SCALANCE M876 industrial routers over the WAN, while the local PROFINET segment — anchored by the 6XV1870-3QH10 — maintains deterministic communication between all automation components. This architecture supports predictive maintenance workflows, where drive and sensor data is continuously analyzed for anomaly detection and early fault warning.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. Legacy PROFIBUS DP devices, Modbus RTU sensors, and modern PROFINET controllers often operate in isolation, creating data silos that prevent plant-wide visibility and coordinated control. The Siemens 6XV1870-3QH10, as part of the SIMATIC NET ecosystem, addresses this challenge by providing a reliable physical layer for PROFINET networks that can interface with protocol conversion gateways, enabling legacy devices to participate in modern data architectures.

By deploying the 6XV1870-3QH10 as the standard interconnect across all PROFINET segments, plant engineers can achieve a unified network topology where every device — from a simple proximity sensor to a complex SINAMICS drive — is visible to the SCADA system and accessible for remote diagnostics. This eliminates the need for manual data collection rounds and reduces the risk of undetected equipment failures that lead to unplanned downtime.

Production line transparency is further enhanced when the 6XV1870-3QH10 network is combined with SIMATIC S7-1500 TM NPU modules for AI-based quality inspection, or with SIMATIC MV500 machine vision systems for automated defect detection. All image data, inspection results, and quality metrics flow through the PROFINET backbone to the MES layer, providing real-time production KPIs without manual data entry.

System expansion is straightforward with the 6XV1870-3QH10 standard: adding a new ET 200SP station, a SINAMICS drive, or a SCALANCE switch to the network requires only a pre-assembled TP cord connection, with no field termination or specialized tooling. This plug-and-play expandability supports agile manufacturing strategies where production configurations change frequently in response to customer demand.

Every 6XV1870-3QH10 unit supplied by ZYPLC undergoes functional testing before dispatch, verifying continuity, shielding integrity, and connector seating. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects, ensuring that your network infrastructure investment is protected from day one.

Industrial Connectivity FAQ

Q1: What is the maximum transmission distance supported by the Siemens 6XV1870-3QH10 in a PROFINET network?
A: The 6XV1870-3QH10 is a pre-assembled TP cord designed for device-level connections within a PROFINET segment. For standard 100 Mbps Industrial Ethernet, the maximum segment length per IEEE 802.3 is 100 meters. For longer distances, Siemens SCALANCE X switches with fiber uplinks should be used in conjunction with the TP cord infrastructure.

Q2: Is the 6XV1870-3QH10 compatible with both PROFINET IO and standard Industrial Ethernet devices?
A: Yes. The 6XV1870-3QH10 is fully compatible with any device that uses a standard RJ45 Industrial Ethernet interface, including PROFINET IO controllers and devices, standard Ethernet switches, HMI panels, and industrial PCs. It is not protocol-specific at the physical layer and will operate correctly in any 10/100 Mbps Ethernet topology.

Q3: How does the 6XV1870-3QH10 contribute to network stability in high-EMI industrial environments?
A: The cable features industrial-grade shielding and robust RJ45 connectors designed to maintain signal integrity in environments with high electromagnetic interference from motors, drives, and welding equipment. The pre-assembled design eliminates field-termination errors, which are a common source of intermittent network faults in industrial installations.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6XV1870-3QH10?
A: All 6XV1870-3QH10 units supplied by ZYPLC are tested for electrical continuity, shielding effectiveness, and connector integrity before dispatch. Each unit is covered by a warranty terms confirmed during quotation against manufacturing defects. Availability is confirmed via RFQ for same-day or next-day shipment via DHL or FedEx to global destinations.
