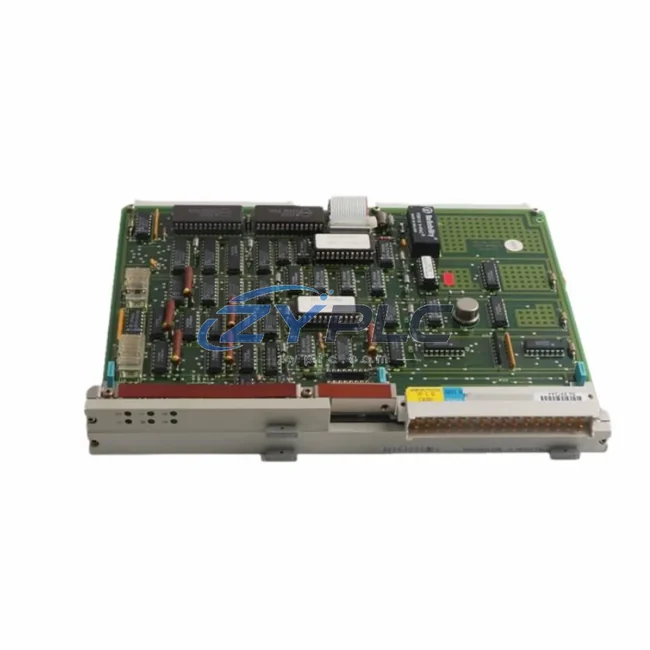

Siemens 700-443-0TP01 Ethernet Module CP 443

Siemens 700-443-0TP01 Ethernet Interface Module CP 443: Efficiency Control and Production Line Optimization

The Siemens 700-443-0TP01 is a high-performance Communications Processor (CP 443) designed for the Siemens S7-400 PLC platform, enabling seamless TCP/IP and ISO-on-TCP Ethernet connectivity across demanding industrial environments. As factories worldwide face mounting pressure to reduce operating load and maximize equipment utilization, the 700-443-0TP01 plays a pivotal role in building a leaner, smarter, and more industrial automation system.

Unlike passive communication modules, the CP 443 actively contributes to maintenance planning by enabling real-time data exchange between the S7-400 CPU and higher-level SCADA, MES, or maintenance planning systems. This continuous data flow allows plant engineers to monitor power draw at the machine level, identify idle-state unplanned downtime, and implement demand-response strategies without interrupting production cycles.

Product Specification Table

System Compatibility and Application

In a fully integrated maintenance-focused production cell, the Siemens 700-443-0TP01 CP 443 serves as the communication backbone that ties together every layer of the control hierarchy. At the field level, distributed I/O modules such as the Siemens ET 200M and ET 200S collect real-time signals from sensors, actuators, and power meters. These signals are aggregated by the S7-400 CPU 414 or CPU 416, which processes control logic and passes energy-relevant data upstream through the CP 443 Ethernet interface.

On the drive side, Siemens SINAMICS G120 variable frequency drives regulate motor speed in response to load demand, dramatically reducing operating load during partial-load cycles. The CP 443 enables the S7-400 to receive real-time feedback from the SINAMICS G120 via PROFINET or TCP/IP, allowing the PLC to dynamically adjust drive setpoints based on production throughput targets — a key lever for reducing peak energy demand.

For servo-driven axes, the Siemens SINAMICS S120 servo drive system integrates with the S7-400 through the same Ethernet backbone, enabling coordinated multi-axis motion with energy regeneration capabilities. Regenerative braking energy from deceleration phases can be fed back into the DC bus, reducing net operating load across the production line.

Power quality and consumption are monitored at the panel level using Siemens SENTRON PAC3200 power monitoring devices, which communicate energy data directly to the SCADA layer via Modbus TCP or PROFINET. The CP 443 bridges this data into the S7-400 control loop, enabling automated load shedding when energy thresholds are exceeded. Paired with a Siemens LOGO! 8 smart relay for auxiliary circuit control, the system can automatically switch off non-critical loads during peak tariff windows.

At the operator interface level, a Siemens SIMATIC HMI TP1200 Comfort panel provides operators with live energy dashboards, drive efficiency trends, and alarm management — all connected through the same Ethernet network managed by the 700-443-0TP01. This unified visibility reduces the time operators spend diagnosing inefficiencies and accelerates corrective action.

For plants running Siemens S7-300 controllers in adjacent production cells, the CP 443 supports cross-controller communication via standard TCP/IP sockets, enabling energy data sharing across heterogeneous PLC platforms without proprietary middleware. This interoperability is critical for factories implementing plant-wide maintenance planning systems (EnMS) aligned with ISO 50001.

Maintenance and Replacement Notes

Consider a mid-scale automotive stamping line where the Siemens S7-400 with the 700-443-0TP01 CP 443 manages press sequencing, conveyor control, and robotic transfer. Without real-time Ethernet communication, energy data from individual drives and motors remains siloed — operators cannot distinguish between productive energy use and idle-state waste. With the CP 443 in place, the S7-400 continuously streams motor current, drive efficiency, and cycle time data to the plant’s MES system.

The MES identifies that three conveyor motors are running at full speed during inter-shift breaks, consuming approximately 18 kW of unnecessary power. Using the CP 443 communication link, the MES sends a speed-reduction command to the S7-400, which relays it to the SINAMICS G120 drives via PROFINET. Motor speed drops to 30% of rated speed during idle periods, reducing conveyor operating load by over 60% during non-productive intervals.

On the press itself, regenerative energy from the flywheel deceleration phase is captured by the SINAMICS S120 active line module and returned to the shared DC bus. The CP 443 enables the S7-400 to monitor DC bus voltage in real time and coordinate energy sharing between the press drive and auxiliary servo axes — eliminating the need for braking resistors and reducing heat generation in the control cabinet.

Predictive maintenance is another dimension where the 700-443-0TP01 delivers measurable value. By enabling continuous upload of drive diagnostic data — including motor temperature, bearing vibration indices, and insulation resistance trends — to a cloud-based analytics platform, maintenance teams can schedule interventions during planned downtime rather than reacting to unexpected failures. This shift from reactive to predictive maintenance reduces unplanned downtime by an estimated 25–40% and extends motor service life significantly.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including communication link verification, protocol handshake testing, and power-on self-test validation. Each Siemens 700-443-0TP01 is backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to minimize production line downtime.

Product Sourcing FAQ

Q1: How does the Siemens 700-443-0TP01 CP 443 contribute to operational stability in an S7-400 system?
The CP 443 enables real-time Ethernet communication between the S7-400 PLC and maintenance planning systems, SCADA platforms, and variable frequency drives. This connectivity allows the control system to monitor operating load at the device level, issue dynamic speed-reduction commands to drives during idle periods, and coordinate load shedding — all of which directly reduce unplanned downtime without manual operator intervention.

Q2: Is the 700-443-0TP01 compatible with modern TIA Portal-based systems and SINAMICS drives?
The 700-443-0TP01 is natively designed for the SIMATIC S7-400 platform and communicates via standard TCP/IP and ISO-on-TCP protocols. It can exchange data with SINAMICS G120 and S120 drives, WinCC SCADA, and third-party MES systems over standard Ethernet. While it predates TIA Portal’s native S7-1500 ecosystem, it integrates seamlessly into mixed-generation architectures via open Ethernet standards.

Q3: What is the recommended replacement or upgrade path if the 700-443-0TP01 fails?
For direct replacement, ZYPLC stocks verified 700-443-0TP01 units with a warranty terms confirmed during quotation, ready for shipment arranged after confirmation. For plants considering platform migration, the Siemens S7-1500 with integrated PROFINET CP offers enhanced condition monitoring capabilities and TIA Portal integration. ZYPLC can advise on compatibility and migration planning based on your existing S7-400 configuration.

Q4: What testing does ZYPLC perform before shipping the 700-443-0TP01?
Every unit undergoes a multi-stage pre-shipment test protocol including power-on self-test, Ethernet link establishment verification, TCP/IP and ISO-on-TCP protocol handshake testing, and firmware version confirmation. Units that do not pass all test stages are quarantined and not dispatched. This process ensures that every 700-443-0TP01 arrives ready for immediate installation, minimizing commissioning time and production line disruption.
