Siemens 7MH4950-1AA01 Weighing Electronics for SIWAREX

Siemens 7MH4950-1AA01 Weighing Electronics for SIWAREX

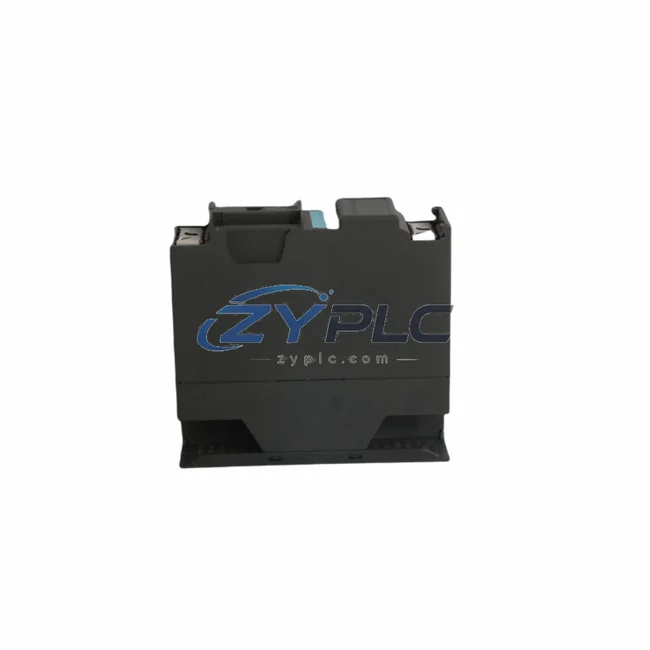

The Siemens 7MH4950-1AA01 is a precision weighing electronics module engineered for seamless integration within the SIWAREX weighing system platform. Designed to operate as a core component in multi-layer industrial automation architectures, this module bridges the gap between field-level load measurement and higher-level process control logic. Whether deployed in a Siemens S7-300 or S7-400 control environment, the 7MH4950-1AA01 delivers consistent, high-accuracy weight data that feeds directly into the control layer, enabling real-time process decisions across manufacturing, chemical processing, food and beverage, and bulk material handling applications.

In a complete control system architecture, the 7MH4950-1AA01 occupies a critical position at the I/O and measurement layer. It interfaces directly with load cells and strain gauge transducers at the field level, converting analog weight signals into calibrated digital values that are transmitted to the CPU via the S7 backplane bus. This tight integration with the S7-300 rack infrastructure — including compatibility with standard PS 307 power supply modules and SM 321/SM 322 digital I/O modules — ensures that the weighing function is not isolated but fully embedded within the broader automation fabric. The module’s ability to communicate over PROFIBUS DP further extends its reach into distributed I/O configurations using ET 200M or ET 200S remote I/O stations, allowing engineers to position weighing points anywhere along the production line without sacrificing data integrity or scan cycle performance.

System architects working with the SIWAREX platform will recognize the 7MH4950-1AA01 as a natural companion to the SIWAREX WP521 and SIWAREX WP522 weighing processors, which handle more complex multi-scale or batching applications. In installations where redundancy is a priority — such as pharmaceutical batch reactors or custody transfer systems — the module can be paired with redundant S7-400H CPU configurations, ensuring that weighing data remains available even during planned maintenance or unexpected CPU failover events. The CP 343-1 or CP 443-1 communication processors can be used alongside the 7MH4950-1AA01 to route weight data over Industrial Ethernet to SCADA systems or MES platforms, supporting end-to-end digital integration from sensor to enterprise.

At the human-machine interface layer, weight values processed by the 7MH4950-1AA01 are typically visualized through Siemens SIMATIC HMI panels such as the TP700 Comfort or MP377, providing operators with real-time trend displays, alarm management, and batch reporting. The STEP 7 or TIA Portal engineering environment supports full parameterization of the module, including filter settings, calibration routines, and limit monitoring, all of which can be configured without interrupting ongoing production. This engineering flexibility significantly reduces commissioning time and supports rapid adaptation when process requirements change.

From a power and installation perspective, the 7MH4950-1AA01 is designed to operate within standard S7-300 rack configurations powered by SITOP PSU100S or SITOP modular power supply units, which provide the stable 24 VDC rail required for reliable analog signal conditioning. The module’s compact form factor and standard rail mounting make it suitable for installation in both centralized control cabinets and distributed field enclosures, supporting a wide range of ambient temperature and humidity conditions typical of industrial environments.

Long-term maintenance and spare parts availability are key considerations for any industrial control system investment. The 7MH4950-1AA01 is supported by Siemens’ global service network, and ZYPLC maintains availability subject to RFQ confirmation of this module to support both new project builds and emergency replacement scenarios. Every unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation, providing engineering teams and procurement managers with the confidence needed to specify this module for critical weighing applications. Our inventory management approach ensures that lead times are minimized, reducing the risk of production downtime caused by component shortages.

Whether you are designing a new greenfield automation system, expanding an existing SIWAREX installation, or replacing a failed module in a live production environment, the Siemens 7MH4950-1AA01 delivers the system-compatible performance, system integration capability, and long-term reliability that industrial control engineers demand.

Product Specification Table

System Compatibility Notes

The 7MH4950-1AA01 achieves its full potential when deployed as part of a coordinated control system rather than as a standalone device. In a typical SIWAREX-based architecture, the module works in concert with the following components and subsystems:

The Siemens S7-300 CPU 314C-2 PN/DP or CPU 315-2 DP serves as the central processing unit, executing the weighing logic and coordinating data exchange between the 7MH4950-1AA01 and other I/O modules on the same rack. The PS 307 10A power supply module provides the stable 24 VDC rail required for both the CPU and the weighing electronics. For distributed installations, ET 200M remote I/O stations connected via PROFIBUS DP allow the weighing module’s data to be aggregated with process signals from remote field locations, maintaining a unified data model at the controller level.

Communication to higher-level systems is handled by the CP 343-1 Industrial Ethernet module, which enables the S7-300 rack to exchange weight data with SCADA platforms, historians, and MES systems over standard TCP/IP networks. In redundant architectures, the S7-400H CPU pair with IM 153-2 interface modules ensures continuous weighing data availability during CPU switchover events. At the operator interface layer, SIMATIC TP700 Comfort HMI panels display live weight values, batch totals, and alarm states, giving process operators immediate visibility into weighing system performance. Terminal modules such as the SIWAREX MTL terminal block simplify field wiring connections to load cells, reducing installation errors and supporting faster commissioning cycles.

Industrial Application Notes

The Siemens 7MH4950-1AA01 is deployed across a broad range of industrial sectors where accurate, system-integrated weighing is a process-critical requirement. In bulk material handling and mining applications, the module supports continuous belt weigher and hopper scale systems, providing real-time tonnage data to the plant control system for inventory management and production reporting. In chemical and petrochemical processing, it enables gravimetric dosing and batch weighing with the precision required for recipe compliance and regulatory reporting.

In food and beverage manufacturing, the 7MH4950-1AA01 integrates with filling and packaging lines, ensuring that product weights meet legal-for-trade requirements while maintaining high throughput. Water and wastewater treatment facilities use the module for chemical dosing systems, where accurate weight measurement of reagents directly impacts treatment efficacy and operational cost. In metallurgy and steel production, the module supports ladle weighing and charge batching applications, where measurement accuracy and system reliability are essential for product quality and furnace protection.

Across all these applications, the 7MH4950-1AA01’s native integration with the Siemens S7 control platform eliminates the need for external signal converters or protocol gateways, reducing system complexity, minimizing potential failure points, and supporting faster fault diagnosis during maintenance windows.

Product Compatibility FAQ

Q1: Is the Siemens 7MH4950-1AA01 compatible with both S7-300 and S7-400 rack systems?
The 7MH4950-1AA01 is designed for the S7-300 rack architecture and communicates via the S7 backplane bus. For S7-400 or distributed PROFIBUS DP configurations, the module can be integrated through ET 200M remote I/O stations with IM 153-2 interface modules, maintaining full data exchange with S7-400 CPUs including redundant S7-400H systems. Always verify rack slot compatibility and power budget with your system configuration before installation.

Q2: How does the 7MH4950-1AA01 support long-term maintenance and calibration in a live production environment?
The module supports online parameterization and calibration routines via STEP 7 or TIA Portal without requiring a production shutdown. Calibration data is stored in the module’s non-volatile memory, ensuring that calibration settings are retained through power cycles and module replacements. ZYPLC’s warranty terms confirmed during quotation covers the module against manufacturing defects, and our availability subject to RFQ confirmation availability ensures rapid replacement in the event of module failure, minimizing unplanned downtime.

Q3: What communication options are available for integrating the 7MH4950-1AA01 with SCADA or MES systems?
Weight data from the 7MH4950-1AA01 is processed by the S7-300 CPU and can be transmitted to SCADA or MES platforms via the CP 343-1 Industrial Ethernet module using standard S7 communication or OPC protocols. For PROFIBUS DP networks, the CP 342-5 module provides additional communication flexibility. The module’s system integration capability ensures that weight values are available as standard process variables within the control system, accessible to any higher-level application with appropriate network access and data mapping configuration.
