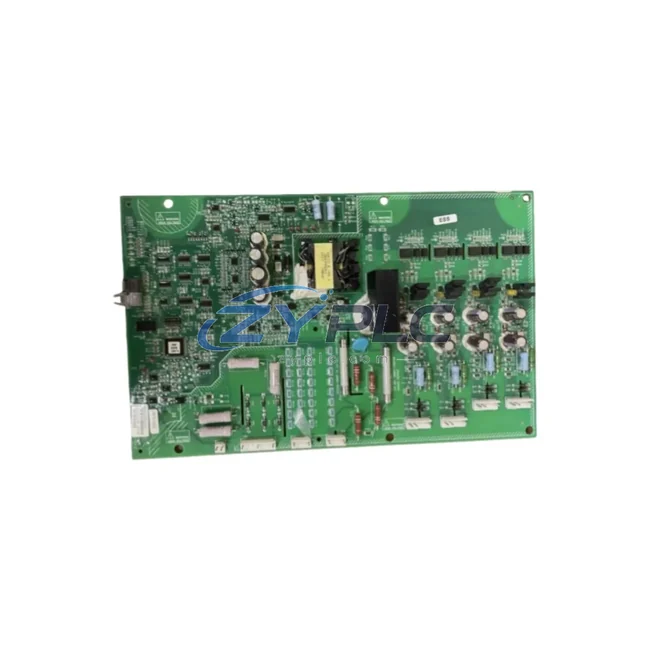

Siemens A1A098194 PROFIBUS Gateway for Perfect Harmony Systems

Siemens A1A098194: Industrial Data Link for Perfect Harmony Smart Factory Connectivity

The Siemens A1A098194 is a PROFIBUS-DP network interface and gateway module engineered for the Robicon Perfect Harmony medium-voltage drive series. In modern smart manufacturing environments, seamless data flow between field devices, drive controllers, and supervisory systems is not optional — it is the backbone of operational efficiency. The A1A098194 fulfills this role by bridging the communication gap between the Perfect Harmony drive platform and the broader industrial network architecture, enabling real-time signal acquisition, protocol-level data exchange, and remote diagnostic visibility across the entire automation chain.

From the moment a process signal is captured at a field sensor or transmitter, the A1A098194 ensures that data travels reliably through the PROFIBUS-DP network layer to the PLC controller, SCADA platform, or HMI terminal without latency or packet loss. This deterministic communication capability is critical in high-power drive applications where millisecond-level response times directly affect process stability, motor protection, and energy efficiency.

Compatibility & Integration Notes

Connected Automation Data Flow

The A1A098194 sits at the heart of a layered industrial communication architecture. At the field level, process sensors — including temperature transmitters, pressure transducers, and flow meters — feed analog and digital signals into the Perfect Harmony drive’s I/O subsystem. The A1A098194 then encapsulates this data into PROFIBUS-DP frames and transmits it upstream to the plant’s control layer.

In a typical deployment, a Siemens S7-400 PLC or S7-1500 PLC acts as the PROFIBUS-DP master, polling the A1A098194 cyclically to retrieve drive status, fault codes, speed references, and energy consumption data. This data is simultaneously forwarded to a Siemens WinCC SCADA platform or a Siemens TP1200 Comfort HMI panel, where operators can monitor drive performance in real time and issue remote control commands without interrupting production.

For distributed control architectures, the A1A098194 integrates naturally with Siemens ET 200SP remote I/O stations, allowing the Perfect Harmony drive to participate in a decentralized automation network alongside other field devices. When the plant network requires protocol bridging — for example, connecting PROFIBUS-DP segments to a PROFINET backbone — a Siemens IE/PB Link PN IO gateway can be deployed in tandem with the A1A098194 to ensure seamless data continuity across network boundaries.

In drive-intensive applications such as pump stations, compressor trains, and conveyor systems, the A1A098194 also enables integration with Siemens SINAMICS S120 drive systems and Siemens MICROMASTER 440 variable frequency drives operating on the same PROFIBUS segment, creating a unified drive communication network managed from a single SCADA node. Edge computing platforms, such as the Siemens SINEMA Remote Connect gateway, can further extend this architecture to enable cloud-based remote diagnostics and predictive maintenance analytics.

The result is a complete, end-to-end industrial data chain: from field sensor signal acquisition, through PROFIBUS-DP protocol transmission, to real-time SCADA visualization, alarm management, and remote diagnostic feedback — all anchored by the A1A098194 as the drive’s primary network interface.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where drive systems, PLCs, remote I/O modules, and SCADA platforms operate in disconnected silos, making it impossible to achieve plant-wide visibility or coordinated control. The Siemens A1A098194 directly addresses this problem by providing the Perfect Harmony drive with a standardized PROFIBUS-DP communication interface that integrates into existing automation networks without requiring proprietary middleware or custom protocol adapters.

In plants where multiple communication protocols coexist — for example, PROFIBUS-DP at the field level and PROFINET or Modbus TCP at the supervisory level — the A1A098194 serves as the protocol anchor for the drive layer, ensuring that drive data is consistently available to higher-level systems regardless of the network topology above it. This eliminates the data gaps that typically arise when drive systems are upgraded or expanded without a coherent communication strategy.

For production line transparency, the A1A098194 enables continuous reporting of drive operating parameters — including output frequency, motor current, DC bus voltage, and fault history — to the plant’s MES or ERP system via the SCADA layer. This real-time data stream supports production KPI tracking, energy auditing, and predictive maintenance scheduling, transforming the Perfect Harmony drive from an isolated power conversion unit into an active participant in the smart factory data ecosystem.

Remote monitoring and diagnostics are equally enhanced. Maintenance engineers can access drive fault logs, parameter sets, and network health data from a central control room or via a remote access gateway, reducing the need for on-site intervention and minimizing unplanned downtime. System expansion is also simplified: adding new Perfect Harmony drive nodes to an existing PROFIBUS-DP network requires only address configuration and GSD file integration, with no changes to the physical network infrastructure.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS-DP transmission speed supported by the Siemens A1A098194?
The A1A098194 supports the full PROFIBUS-DP speed range up to 12 Mbit/s, as defined by IEC 61158. In practice, the operating speed is determined by the network master configuration and cable length. For most Perfect Harmony drive installations, speeds between 1.5 Mbit/s and 6 Mbit/s are typical, providing a balance between data throughput and network stability over longer cable runs.

Q2: Is the A1A098194 compatible with Siemens S7-1500 PLC systems and TIA Portal engineering?
Yes. The A1A098194 is compatible with Siemens S7-300, S7-400, and S7-1500 PLC families operating as PROFIBUS-DP masters. Integration is performed using the drive’s GSD (General Station Description) file within the TIA Portal or STEP 7 engineering environment, enabling full cyclic and acyclic data exchange between the PLC and the Perfect Harmony drive.

Q3: How does the A1A098194 support network stability in high-interference industrial environments?
The A1A098194 is designed to operate within the electromagnetic environment of medium-voltage drive installations, where high-frequency switching noise and ground potential differences are common. The module’s PROFIBUS-DP interface incorporates galvanic isolation and shielded signal paths to maintain network integrity. For additional noise immunity, PROFIBUS-DP cables with proper shielding and termination resistors at both ends of the bus segment are recommended.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing performed?
Every Siemens A1A098194 unit supplied by ZYPLC undergoes pre-shipment functional verification, including communication interface continuity checks and visual inspection for component integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with full traceability documentation. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
