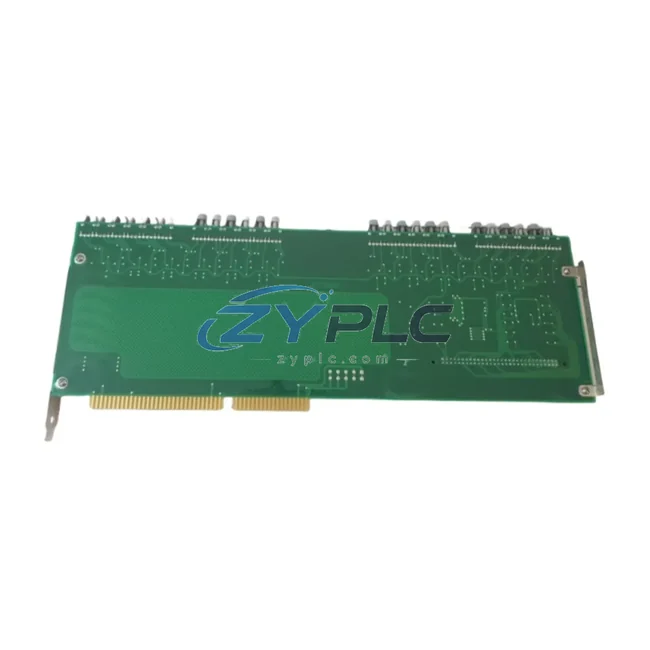

Siemens A1A461D85.00M PC Board for SIMOREG DC Master

Siemens A1A461D85.00M PC Board: Compatibility and Replacement Notes

The Siemens A1A461D85.00M is a precision-engineered PC board designed for integration within the SIMOREG DC Master drive platform — one of Siemens’ most established and widely deployed DC drive families in heavy industrial automation. Rather than functioning as a standalone replacement component, this board occupies a critical position within a layered control architecture, bridging the control layer, power conversion layer, and feedback signal layer to ensure consistent, reliable DC motor drive performance across demanding industrial environments.

In a complete SIMOREG DC Master system, the A1A461D85.00M PC board coordinates directly with the drive’s internal regulation circuitry, interfacing with the firing pulse generation logic, current feedback conditioning, and speed reference processing chains. Its role is to maintain signal integrity between the digital control core and the analog power stage — a function that is essential for achieving precise torque control, smooth speed ramp profiles, and stable closed-loop regulation under variable load conditions.

From a system architecture perspective, this board supports the broader control hierarchy that typically includes a SIMATIC S7 series PLC at the supervisory level, communicating downward via PROFIBUS-DP or USS protocol to the SIMOREG DC Master converter. The A1A461D85.00M ensures that the drive’s internal processing remains synchronized with external setpoint commands, enabling seamless integration into multi-drive coordination schemes such as those found in paper machine line shafts, rolling mill stands, and winding/unwinding systems.

When specifying replacement or spare components for SIMOREG DC Master installations, engineers must consider the full signal flow path. The A1A461D85.00M interacts with companion boards such as the C98043-A7002 control board, the A1A461D85 base assembly, and the associated gate driver boards responsible for SCR firing. Proper system integration of this PC board within the existing drive chassis ensures that no recalibration of the current controller or speed regulator is required, reducing commissioning time and minimizing production downtime.

At the I/O layer, the SIMOREG DC Master architecture relies on structured analog and digital signal conditioning. The A1A461D85.00M supports this by providing stable reference and feedback signal processing, which feeds into the drive’s P-parameter set for current limits, ramp times, and field weakening curves. This makes it directly compatible with existing parameterization stored in the drive’s EEPROM, allowing hot-swap replacement without full drive recommissioning in most standard configurations.

For installations requiring redundancy, the A1A461D85.00M can be held as a critical spare within a planned preventive maintenance inventory strategy. In high-availability applications — such as continuous casting lines, mine hoists, or large pump drives — maintaining a verified spare of this board alongside units such as the SIMOREG DC Master power section fuses, the field supply board, and the fan assembly ensures that mean time to repair (MTTR) targets can be met without extended lead times from the OEM supply chain.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to dispatch. Stock is available for shipment arranged after confirmation, supporting both emergency breakdown replacement and planned maintenance schedules across global industrial sites.

Product Specification Table

System Compatibility Notes

The A1A461D85.00M PC board is most effectively specified when viewed within the context of the complete SIMOREG DC Master drive system and its surrounding control architecture. In a typical coordinated DC drive installation, the following components interact directly or indirectly with this board:

At the control layer, a SIMATIC S7-300 or S7-400 PLC provides the supervisory setpoint commands — speed reference, torque limits, and enable signals — transmitted via PROFIBUS-DP to the SIMOREG DC Master converter. The A1A461D85.00M processes these signals internally, ensuring that the drive’s regulation loop responds accurately to PLC commands without signal degradation or timing errors.

At the power conversion layer, the board coordinates with the SIMOREG DC Master 6RA7085 or 6RA7090 converter module, which houses the SCR thyristor bridge responsible for DC armature voltage control. The firing pulse signals generated by the control board pass through the A1A461D85.00M’s signal conditioning stage before reaching the gate driver circuits, ensuring precise phase angle control across all load conditions.

The field supply board within the SIMOREG DC Master chassis works in parallel with the A1A461D85.00M to regulate field current independently of armature current, enabling field weakening operation for above-base-speed applications. Correct interaction between these two boards is essential for maintaining motor flux at the correct level during speed transitions.

At the feedback and instrumentation layer, a SIMOREG DC Master tachometer input board or encoder interface module feeds speed feedback signals into the regulation chain. The A1A461D85.00M processes these feedback signals as part of the closed-loop speed and current control algorithm, making its signal integrity directly responsible for the accuracy of the drive’s dynamic response.

For human-machine interface (HMI) integration, a SIMATIC OP or TP panel connected via MPI or PROFIBUS provides operators with real-time drive status, fault diagnostics, and parameter access. The A1A461D85.00M’s stable operation ensures that fault codes and status registers reported to the HMI accurately reflect the drive’s internal state, supporting rapid fault diagnosis and reduced troubleshooting time.

In multi-drive systems, SIMOREG DC Master peer-to-peer communication via the SIMOLINK fiber-optic ring or analog master-follower wiring allows multiple drives to synchronize speed and torque. The A1A461D85.00M’s role in maintaining internal signal consistency is critical to the stability of these multi-drive coordination schemes, particularly in applications such as tandem rolling mills or multi-motor winding lines.

Industrial Application Notes

Steel and Metal Rolling Mills: In hot and cold rolling mill applications, SIMOREG DC Master drives control the main roll stand motors, coiler drives, and tension reel systems. The A1A461D85.00M PC board ensures that the drive’s current regulation loop maintains precise torque control during strip threading, steady-state rolling, and tail-out sequences. Its reliable signal processing supports the tight speed synchronization required between multiple roll stands operating in tandem.

Paper and Pulp Manufacturing: Paper machine line shafts rely on coordinated DC drives to maintain consistent web tension across forming, press, and dryer sections. The A1A461D85.00M supports the SIMOREG DC Master’s ability to respond to rapid load changes caused by sheet breaks or speed changes, maintaining drive stability and protecting the paper web from tension upsets.

Mining and Hoisting Applications: Mine hoist drives require the highest levels of reliability and safety. The A1A461D85.00M’s role in maintaining accurate current feedback processing is essential for safe load handling, controlled deceleration, and regenerative braking performance in SIMOREG DC Master-based hoist drive systems.

Chemical and Petrochemical Process Plants: Extruder drives, agitator drives, and compressor drives in continuous process plants benefit from the SIMOREG DC Master’s stable closed-loop regulation. The A1A461D85.00M ensures that the drive maintains consistent torque output under varying viscosity and load conditions, supporting product quality and process consistency.

Water and Wastewater Treatment: Large pump and blower drives in water treatment facilities operate continuously with minimal planned downtime. Holding the A1A461D85.00M as a verified spare component — covered by a warranty terms confirmed during quotation — ensures that any drive fault can be resolved quickly, maintaining pumping capacity and regulatory compliance.

Product Compatibility FAQ

Q1: Is the A1A461D85.00M directly interchangeable with other PC boards in the SIMOREG DC Master 6RA70 series, and does replacement require full drive recommissioning?
In most standard SIMOREG DC Master 6RA70 installations, the A1A461D85.00M can be replaced without full drive recommissioning, provided that the replacement board is of the same revision level and the drive’s parameter set remains intact in the EEPROM. Engineers should verify the board revision marking before installation and perform a current controller optimization (P051 = 25) after replacement to confirm regulation loop stability. ZYPLC supplies boards with documented revision traceability to support this process.

Q2: How does the A1A461D85.00M support long-term maintenance planning in high-availability DC drive installations?
For critical applications where unplanned downtime carries significant production cost, the A1A461D85.00M should be held as a designated critical spare within the site’s preventive maintenance inventory. ZYPLC’s warranty terms confirmed during quotation covers all supplied units, and our team can provide documentation to support spare parts registration in CMMS systems such as SAP PM. Pairing this board with spares for the field supply board, gate driver boards, and control board creates a comprehensive drive-level spare parts kit that addresses the most common failure modes in aging SIMOREG DC Master installations.

Q3: What compatibility checks should be performed before installing the A1A461D85.00M in an existing SIMOREG DC Master system?
Before installation, engineers should confirm the drive’s exact 6RA70 catalog number and firmware version, as board compatibility can vary between drive ratings and software releases. The board’s hardware revision code should be matched to the original component where possible. Additionally, the drive’s P-parameter backup should be saved to an external device (via the SIMOREG DC Master’s serial interface or PROFIBUS) before any board exchange, ensuring that the full parameter set — including current limits, ramp times, field weakening curves, and encoder scaling — can be restored after replacement. ZYPLC’s technical support team is available to assist with compatibility verification prior to order confirmation.
