Siemens A5E00104787 Network-Ready IPC Board for SIMATIC Systems

Siemens A5E00104787 Network-Ready IPC Board for SIMATIC Systems: Industrial Data Link and Smart Factory Connectivity

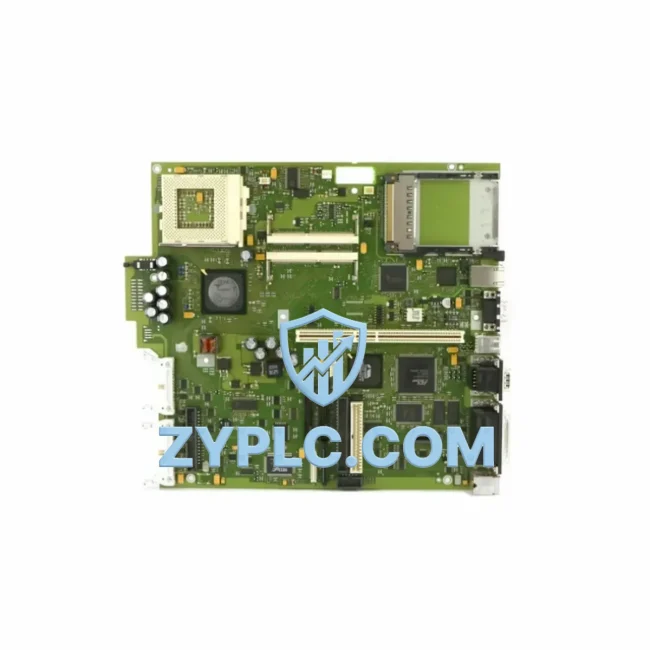

In modern industrial automation, the backbone of any high-performance control architecture is not just the PLC or the HMI — it is the computing platform that bridges field-level intelligence with supervisory systems. The Siemens A5E00104787 is the core motherboard for the SIMATIC Box PC 620/670 series, a ruggedized industrial PC platform engineered to serve as the central data processing and network integration node within complex automation environments. Whether deployed in a discrete manufacturing cell, a continuous process plant, or a utility SCADA infrastructure, this IPC board delivers the processing stability, communication versatility, and long-term serviceability that industrial engineers demand.

Unlike standard commercial computing hardware, the A5E00104787 is designed from the ground up for 24/7 industrial operation. It supports the demanding thermal, vibration, and EMI conditions found in control cabinets, machine rooms, and field enclosures. Its architecture enables seamless integration with Siemens’ broader SIMATIC ecosystem, making it a preferred replacement and upgrade component for system integrators managing legacy and hybrid automation platforms.

Network Communication Table

Connected Automation Data Flow

The A5E00104787 motherboard functions as the central processing hub within a layered automation architecture. At the field level, sensors, actuators, and distributed I/O modules — such as the SIMATIC ET 200SP remote I/O stations — transmit real-time process data via PROFIBUS DP or PROFINET IO. This data is routed through communication processors like the CP 5611 or CP 1623 PROFIBUS/PROFINET cards, which plug directly into the PCI expansion slots of the SIMATIC Box PC 620/670 platform, enabling the A5E00104787 to act as a high-throughput data aggregation point.

At the control layer, the IPC communicates with SIMATIC S7-300 and S7-400 PLCs via MPI or PROFIBUS, collecting cyclic process values, alarm states, and diagnostic data. For newer installations integrating SIMATIC S7-1500 controllers, PROFINET connectivity ensures deterministic, low-latency data exchange between the PLC and the IPC-based SCADA or MES host. The A5E00104787 board’s multi-slot architecture allows simultaneous installation of multiple communication cards, enabling parallel data flows across different network segments without bottlenecks.

Network infrastructure stability is maintained through SCALANCE X series managed industrial Ethernet switches, which provide VLAN segmentation, redundant ring topologies (MRP/RSTP), and port-level diagnostics. The SIMATIC Box PC running on the A5E00104787 connects to these switches via standard RJ45 Ethernet, participating in the plant-wide PROFINET domain. For legacy PROFIBUS segments, protocol gateways such as the SIMATIC PN/DP Coupler bridge older field devices into the modern Ethernet backbone, with the IPC serving as the supervisory node that consolidates all data streams.

At the HMI and SCADA layer, SIMATIC WinCC or WinCC Flexible runtime software executes directly on the SIMATIC Box PC, leveraging the A5E00104787’s processing capacity to render real-time process graphics, trend displays, and alarm management screens. Operators interact with the system through panel-mounted SIMATIC TP1500 or MP377 touch panels connected via Industrial Ethernet, while the IPC serves as the OPC server distributing live data to MES and ERP systems. Variable frequency drives such as the SINAMICS G120 series report speed, torque, and fault data upward through PROFIBUS or PROFINET, with the A5E00104787-based IPC logging this information for predictive maintenance analysis.

Remote diagnostics and firmware management are handled through the plant’s Industrial Ethernet backbone, allowing engineers to access the SIMATIC Box PC remotely via SIMATIC Remote Access or standard VPN tunnels. This eliminates the need for on-site intervention for routine parameter adjustments, software updates, or fault investigations — a critical advantage in geographically distributed plants or unmanned substations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, drives, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and coordinated control. The SIMATIC Box PC 620/670 platform, powered by the A5E00104787 motherboard, directly addresses this challenge by serving as a multi-protocol integration node capable of simultaneously communicating across PROFIBUS, PROFINET, MPI, and Industrial Ethernet segments.

In brownfield installations where legacy SIMATIC S7-300 systems coexist with newer S7-1500 controllers and cloud-connected edge devices, the A5E00104787-based IPC acts as the translation and aggregation layer. It collects data from heterogeneous sources, normalizes it into a unified OPC-UA data model, and publishes it to SCADA, MES, or cloud analytics platforms. This eliminates the need for costly parallel wiring or protocol-specific gateways at every device level.

For production line transparency, the IPC platform enables real-time KPI dashboards that aggregate OEE data from multiple machine cells simultaneously. Downtime events, quality deviations, and energy consumption anomalies are captured at the source and surfaced to operations teams within seconds, enabling rapid response and continuous improvement cycles. The A5E00104787’s long-term availability as a spare and replacement component ensures that existing SIMATIC Box PC installations can be maintained and extended without platform migration, protecting capital investment in proven automation infrastructure.

System expansion is straightforward: additional PCI communication cards can be installed to add new protocol support, and the IPC’s standard operating system environment allows new software modules — historians, analytics engines, cybersecurity agents — to be deployed without hardware changes. This modularity makes the SIMATIC Box PC 620/670 a future-ready platform even in rapidly evolving smart factory environments.

Industrial Connectivity FAQ

Q1: What communication protocols does the A5E00104787-based SIMATIC Box PC support, and can it handle multiple protocols simultaneously?
The SIMATIC Box PC 620/670 platform supports PROFIBUS DP/PA, PROFINET IO, MPI, Industrial Ethernet, and OPC/OPC-UA through a combination of onboard interfaces and PCI expansion cards such as the CP 5611 and CP 1623. Multiple communication cards can be installed simultaneously, enabling the IPC to serve as a multi-protocol gateway that bridges legacy PROFIBUS field devices with modern PROFINET controllers and Ethernet-based SCADA systems in a single chassis.

Q2: How is network stability and communication latency managed in high-demand SCADA environments?
The A5E00104787 motherboard provides dedicated PCI bandwidth for communication processors, ensuring that network traffic does not compete with application processing resources. When paired with SCALANCE X managed switches configured for PROFINET IRT or RT communication classes, end-to-end cycle times of under 10ms are achievable for critical control loops. SIMATIC WinCC’s built-in redundancy features further ensure that communication failures trigger automatic failover without data loss or operator intervention.

Q3: Is the A5E00104787 compatible with current SIMATIC S7-1500 and TIA Portal engineering environments?
Yes. While the A5E00104787 is the core board for the SIMATIC Box PC 620/670 series — originally designed for S7-300/400 era systems — it operates as a standard Windows-based IPC that is fully compatible with TIA Portal-based engineering workflows. SIMATIC WinCC V7 and later versions, as well as OPC-UA servers compatible with S7-1500 controllers, run natively on this platform. For direct PROFINET IO communication with S7-1500 CPUs, a CP 1623 card provides certified PROFINET controller/device functionality.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?
Every A5E00104787 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including power-on verification, interface continuity checks, and communication port validation. The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions from the date of delivery. Our technical team provides post-sale support for installation guidance, compatibility verification, and fault diagnosis. For urgent requirements, expedited shipping via DHL or FedEx is available with tracking provided at dispatch.
