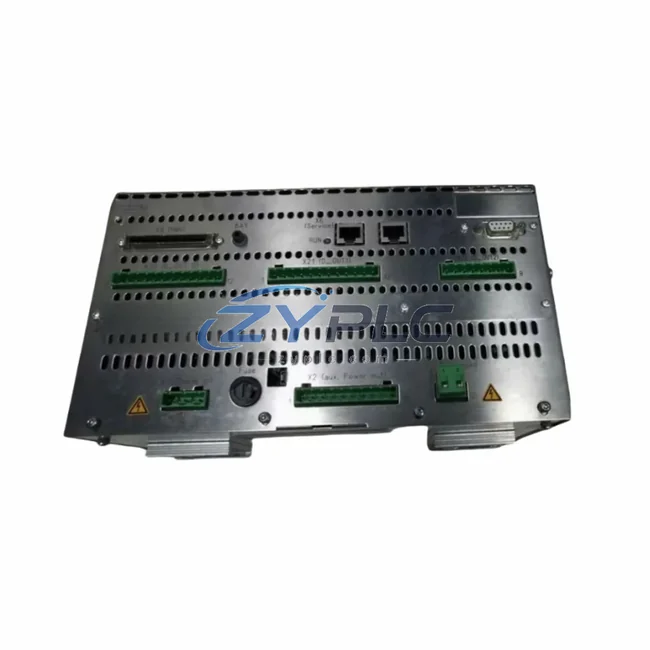

The Siemens A5E00703754 is a dedicated Control Unit engineered for deployment within the SINAMICS S120 drive system architecture — one of Siemens’ most scalable and widely adopted multi-axis drive platforms in industrial automation. Rather than functioning as a standalone component, the A5E00703754 occupies a critical position at the control layer of a layered automation hierarchy, coordinating signal flow between the programmable logic controller (PLC) level, the drive I/O layer, the communication network, and the power electronics beneath it. Understanding this product requires understanding the system it serves.

In a complete SINAMICS S120 system, the Control Unit acts as the central intelligence of the drive group. It receives setpoint commands from an upstream controller — typically a Siemens SIMATIC S7-1500 or S7-300 series PLC — via PROFIBUS DP or PROFINET IO, interprets those commands, and distributes coordinated motion or torque instructions to individual Motor Modules and Power Modules within the same drive line-up. The A5E00703754 manages this orchestration in real time, ensuring that multi-axis systems maintain synchronization, ramp profiles, and fault response behavior consistent with the application’s engineering design.

The physical architecture of an S120 system built around this Control Unit typically includes a Line Module (Active Line Module or Basic Line Module) for DC bus supply, multiple Single Motor Modules or Double Motor Modules for individual axis control, and a shared DC bus backplane that distributes power across the drive group. The A5E00703754 connects to these power components via the DRIVE-CLiQ communication interface — Siemens’ proprietary high-speed serial protocol that enables automatic topology recognition, encoder feedback integration, and firmware-level device identification without manual parameterization. This dramatically reduces commissioning time and eliminates wiring errors that are common in traditional analog feedback architectures.

From a network integration perspective, the A5E00703754 supports connection to SIMATIC HMI panels such as the KTP700 Basic or TP1200 Comfort series, enabling operators to monitor drive status, fault codes, speed feedback, and operating load in real time. When integrated with a SIMATIC S7-1500 controller running TIA Portal V16 or later, the full drive parameterization can be managed centrally through the engineering environment, with drive objects appearing as standard hardware nodes in the project tree. This system integration capability is a key advantage for system engineers managing large installations with dozens of drive axes.

Redundancy and fault tolerance are also addressed at the architecture level. In critical applications — such as continuous process lines in petrochemical plants, paper mills, or steel rolling mills — the A5E00703754 can be configured within a Safe Torque Off (STO) safety architecture, meeting SIL 2 / PLd requirements without the need for external safety relays. When combined with a SINAMICS S120 Sensor Module Cabinet-Mounted (SMC) and appropriate encoder hardware, the system supports safe speed monitoring and safe direction control, reducing the complexity of the overall safety circuit design.

For installations requiring cabinet-level integration, the A5E00703754 is typically mounted on a standard booksize chassis alongside the Line Module and Motor Modules, with the Control Unit positioned at the top of the drive line-up per Siemens installation guidelines. Terminal Module 31 (TM31) or Terminal Module 41 (TM41) expansion boards can be added via DRIVE-CLiQ to extend the available digital and analog I/O capacity without replacing the Control Unit itself. This modular expansion approach protects the initial hardware investment while allowing the system to grow with the application.

Long-term maintenance efficiency is another dimension where the A5E00703754 delivers measurable value. Because the Control Unit stores all drive parameters internally and supports parameter backup via memory card, replacement during a fault event can be completed without a laptop or engineering software — the replacement unit reads the parameter set from the card automatically on first power-up. This capability is particularly valuable in remote installations or facilities with limited on-site engineering resources. Combined with ZYPLC’s warranty terms confirmed during quotation coverage and verified pre-shipment testing, procurement teams can plan maintenance cycles with confidence.

In summary, the Siemens A5E00703754 is not simply a drive controller — it is the architectural anchor of a complete SINAMICS S120 multi-axis system, enabling consistent control performance, scalable I/O expansion, safe operation, and efficient long-term maintenance across demanding industrial environments.

Product Specification Table

System Compatibility Notes

A fully engineered SINAMICS S120 system built around the A5E00703754 Control Unit draws together multiple hardware layers that must be selected and configured as a coherent whole. At the power supply layer, an Active Line Module (ALM) — such as the 6SL3130 series — provides regulated DC bus voltage with regenerative feedback capability, reducing operating load in applications with frequent braking cycles. The DC bus is then distributed to Single Motor Modules (6SL3120 series) or Double Motor Modules, each controlling one or two servo or induction motor axes respectively.

Encoder feedback from each motor is returned to the Control Unit via DRIVE-CLiQ-connected Sensor Module Cabinet-Mounted (SMC10, SMC20, or SMC30) units, which convert TTL, HTL, SSI, or resolver signals into the DRIVE-CLiQ protocol. This eliminates the need for separate encoder interface cards at the PLC level and keeps all feedback data within the drive’s own diagnostic environment. For applications requiring additional analog or digital I/O — such as external speed references, process interlocks, or relay outputs — Terminal Module TM31 or TM41 boards extend the Control Unit’s I/O capacity via DRIVE-CLiQ without consuming PLC I/O resources.

At the network layer, the A5E00703754 communicates upstream to a SIMATIC S7-1500 or S7-300 PLC via PROFIBUS DP or PROFINET, with drive objects mapped as standard PROFIdrive telegram structures (Telegram 1, 2, 3, or 111 depending on the application). The engineering environment — TIA Portal or STARTER — manages all parameterization, and the complete drive configuration can be archived and restored via the memory card slot on the Control Unit itself. For operator interface, a SIMATIC HMI panel (KTP700, KTP900, or TP1200 Comfort) connected to the same PROFINET network provides real-time visualization of drive status, fault history, and energy data.

In cabinet design, the A5E00703754 is typically installed alongside a SITOP PSU300S or PSU8600 24 V DC power supply that feeds the control electronics independently of the main power circuit, ensuring that the Control Unit remains operational during main power interruptions for fault logging and safe shutdown sequencing. This architecture reflects best practice for industrial drive cabinets in continuous process applications.

Industrial Application Notes

The A5E00703754 Control Unit finds application across a broad range of industrial sectors where multi-axis coordinated motion or variable-speed drive control is required within a structured automation hierarchy.

In manufacturing and assembly lines, the S120 system controlled by the A5E00703754 manages servo axes for conveyor positioning, robotic joint drives, and spindle control in CNC machining centers. The ability to synchronize multiple axes via the Control Unit’s internal motion control functions — without relying on the PLC scan cycle — is critical for high-throughput production environments.

In power generation and utilities, the A5E00703754 is deployed in pump and fan drive applications where variable-speed control reduces operating load and extends motor service life. The STO safety function supports safe isolation of drives during maintenance without full cabinet de-energization, improving operational availability.

In petrochemical and process industries, the Control Unit’s robust parameterization and fault logging capabilities support continuous operation requirements. Integration with SIMATIC PCS 7 or WinCC SCADA systems via PROFIBUS or PROFINET enables centralized monitoring of all drive assets across a plant-wide network.

In mining and metals processing, the A5E00703754 supports high-inertia load applications such as conveyor drives, hoist systems, and rolling mill stands, where precise torque control and regenerative braking are essential for both process quality and energy recovery.

In water and wastewater treatment, the drive system’s ability to operate reliably across wide ambient temperature ranges and dusty environments — when properly enclosed — makes it suitable for pump station and aeration blower applications where long service intervals and remote diagnostics are priorities.

Product Compatibility FAQ

Q1: Is the A5E00703754 compatible with both PROFIBUS DP and PROFINET IO networks?
The A5E00703754 Control Unit’s native communication capability depends on the specific hardware variant and installed option boards. The base unit typically supports PROFIBUS DP. PROFINET IO connectivity can be added via the CBE20 Communication Board Extension, which plugs into the option slot on the Control Unit. Engineers should verify the exact communication requirements of their system architecture before ordering and confirm compatibility with the upstream PLC’s communication module — for example, a SIMATIC S7-1500 with a CM 1542-5 for PROFIBUS or onboard PROFINET port for PROFINET integration.

Q2: Can the A5E00703754 be replaced in the field without a laptop or TIA Portal connection?
Yes. The SINAMICS S120 architecture supports parameter-card-based replacement, where all drive parameters stored on the CompactFlash or memory card in the original Control Unit are automatically loaded by the replacement unit on first power-up. This means a trained maintenance technician can complete a Control Unit replacement without engineering software, significantly reducing mean time to repair (MTTR) in production environments. ZYPLC supplies the A5E00703754 pre-tested and ready for installation, and the warranty terms confirmed during quotation covers the replacement unit from the date of shipment.

Q3: What is covered under ZYPLC’s warranty terms confirmed during quotation for the A5E00703754, and how does it support long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation covers verified hardware defects identified under normal operating conditions consistent with Siemens’ published installation and environmental specifications. Each unit undergoes pre-shipment functional testing before dispatch. For maintenance planners, this warranty period provides a defined coverage window that aligns with annual maintenance budget cycles, allowing procurement teams to include spare drive controller costs in capital expenditure planning with confidence. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
