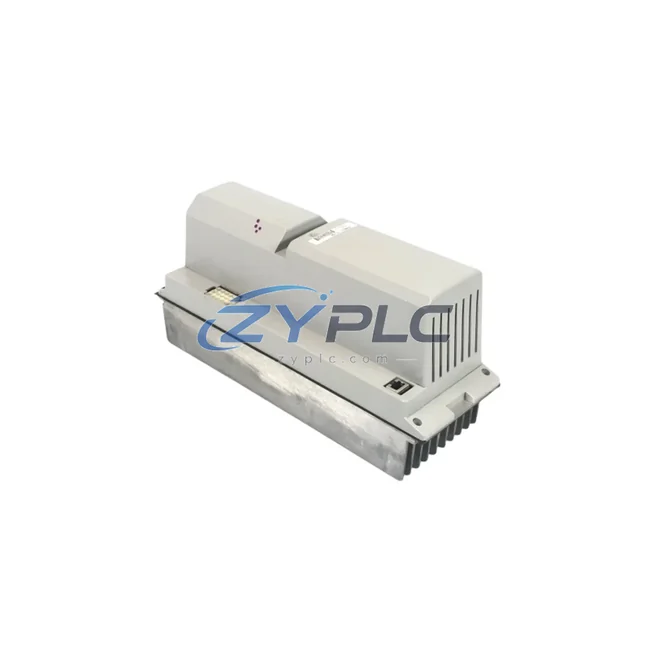

Siemens A5E00825001 IGBT Module SINAMICS

Siemens A5E00825001 IGBT Module for SINAMICS Automation

The Siemens A5E00825001, paired with the FS300R12KE3_S1 IGBT power module, is a precision-engineered switching component designed to maximize energy conversion efficiency in industrial motor drive systems. Deployed within the SINAMICS drive platform, this module directly governs the pulse-width modulation (PWM) switching cycle that determines how effectively electrical energy is converted into mechanical output — making it a critical lever for reducing unplanned downtime at the drive level.

In modern manufacturing environments where energy costs and carbon targets are tightening simultaneously, the efficiency of each drive component matters. The A5E00825001 operates at a 1200V / 300A rating class, enabling it to handle high-power motor loads with low switching losses. Its low on-state voltage drop and fast recovery characteristics reduce thermal dissipation during each switching event, which translates directly into lower heat generation, reduced cooling demand, and measurable operational stability across multi-axis production lines.

Product Specification Table

System Compatibility and Application

The A5E00825001 does not operate in isolation — its operational-efficiency impact is amplified when integrated into a well-designed automation architecture. Within a SINAMICS S120 multi-axis drive system, this IGBT module serves as the core switching element in the power unit, working in concert with the SINAMICS S120 Control Unit CU320-2 DP to execute vector control algorithms that minimize reactive power and optimize torque delivery per ampere consumed.

On the DC bus side, the module interfaces with the SINAMICS S120 Active Line Module (ALM), which enables regenerative braking energy to be fed back into the supply grid rather than dissipated as heat through braking resistors. This closed-loop energy recovery architecture — enabled by the low-loss switching characteristics of the FS300R12KE3_S1 — can reduce net operating load in deceleration-heavy applications such as hoists, centrifuges, and press lines by a significant margin.

For distributed I/O and field-level condition monitoring, the system typically pairs with SIMATIC ET 200SP I/O modules, which collect real-time current, voltage, and power factor data from field sensors and relay it back to the SIMATIC S7-1500 PLC via PROFINET. The S7-1500’s maintenance planning function blocks can then calculate per-machine operating load, flag inefficient operating windows, and trigger drive parameter adjustments — all without manual intervention.

At the HMI layer, operators interact with the system through a SIMATIC HMI TP1200 Comfort Panel, where energy dashboards display real-time kWh consumption, drive efficiency curves, and alarm logs. When the A5E00825001 module approaches thermal limits — detectable via the NTC temperature sensor integrated into the FS300R12KE3_S1 package — the system can automatically reduce switching frequency or trigger a predictive maintenance alert before a fault occurs.

Communication between the drive system and the plant-level SCADA or MES is handled via PROFINET IO or optionally PROFIBUS DP, with the SINAMICS G120 Control Unit CU240E-2 PN providing an alternative integration path for standalone pump and fan drive applications where the A5E00825001 may serve as a replacement power module. The SITOP PSU8600 power supply unit ensures stable 24VDC control voltage across the entire drive cabinet, preventing control logic dropouts that could cause unplanned stops and energy-wasting restart cycles.

Maintenance and Replacement Notes

In a typical automotive body shop with 40+ servo axes and conveyor drives, replacing degraded IGBT modules with a tested A5E00825001 can restore drive efficiency to OEM specification levels. A worn or thermally stressed IGBT module increases switching losses incrementally — often undetected until a fault trip occurs. By proactively replacing the module during scheduled maintenance windows, production engineers eliminate the energy penalty of degraded switching performance and avoid the far greater cost of an unplanned line stoppage.

In pump and fan applications governed by affinity laws, the A5E00825001 enables the SINAMICS drive to maintain precise speed control at partial load — the operating point where variable-speed drives deliver the greatest operational stability over fixed-speed alternatives. A pump running at 80% speed consumes only ~51% of the energy of the same pump at full speed. The integrity of the IGBT switching stage is what makes this precise speed regulation possible; a degraded module introduces harmonic distortion and torque ripple that forces the drive to compensate, consuming additional energy in the process.

For CNC machining centers and grinding machines, the fast switching capability of the FS300R12KE3_S1 supports high-frequency PWM operation that reduces motor current harmonics, lowers audible noise, and improves surface finish quality — all while keeping the motor operating within its optimal efficiency band. The result is a tighter production cycle, fewer rejects, and lower per-part energy cost.

Every unit shipped from our warehouse undergoes a full functional outgoing test prior to dispatch, verifying gate drive response, leakage current, and thermal resistance within specification. This ensures that the energy efficiency gains described above are realized from day one of installation, not degraded by latent defects. Combined with our warranty terms confirmed during quotation, customers receive both performance assurance and supply chain reliability.

Product Sourcing FAQ

Q1: How much energy can I save by replacing a degraded IGBT module with the A5E00825001?
A: The savings depend on the degree of degradation in the existing module. A thermally stressed IGBT with elevated on-state voltage drop can increase drive losses by 5–15% compared to a new module operating within specification. Restoring the module to OEM performance levels recovers those losses immediately. In high-duty-cycle applications running 16–24 hours per day, this translates to measurable reductions in monthly electricity consumption.

Q2: Is the A5E00825001 compatible with all SINAMICS drive variants?
A: The FS300R12KE3_S1 module is designed for use in specific SINAMICS S120 and related power unit configurations. Compatibility depends on the power unit frame size and DC bus voltage. We recommend cross-referencing the drive’s spare parts list or contacting our technical team with your drive model number to confirm fitment before ordering.

Q3: What is the recommended replacement interval for this IGBT module?
A: Siemens does not publish a fixed calendar-based replacement interval for IGBT modules, as service life depends heavily on thermal cycling, load profile, and ambient conditions. Predictive replacement is recommended when the drive’s diagnostic system reports increasing junction temperature trends, elevated switching losses, or when the module has accumulated significant power-on hours in high-cycle applications. Proactive replacement during planned shutdowns avoids unplanned downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
A: Our warranty terms confirmed during quotation covers functional defects in the module under normal operating conditions. Prior to shipment, every A5E00825001 unit undergoes an outgoing functional test that verifies switching performance, insulation integrity, and thermal characteristics. If a module fails within the warranty period under normal use, we provide a replacement unit. Please retain your purchase documentation as proof of warranty entitlement.
