Siemens A5E01014206 Communication Module for SINAMICS S120

Siemens A5E01014206 Communication Module for SINAMICS S120

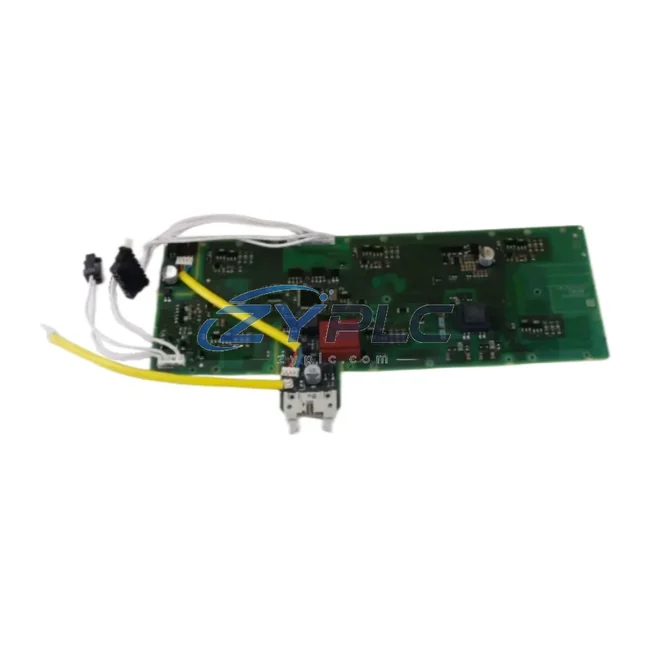

The Siemens A5E01014206 is a dedicated communication module engineered for seamless integration within the SINAMICS S120 modular drive system architecture. Designed to operate as a critical node in multi-axis and single-axis drive configurations, this module enables reliable data exchange between the drive control unit and higher-level automation systems, including SIMATIC S7 PLCs, PROFIBUS-DP networks, and PROFINET IO environments. Its role within the control hierarchy spans from the field device layer through to the supervisory control layer, making it an indispensable component for engineers designing scalable, high-availability industrial automation systems.

In a complete SINAMICS S120 system architecture, the A5E01014206 interfaces directly with the CU320-2 Control Unit, which serves as the central intelligence of the drive system. The CU320-2 coordinates axis synchronization, safety functions, and communication routing across the entire drive line-up. The A5E01014206 extends the communication capability of this control unit, allowing the system to participate in plant-wide PROFIBUS or PROFINET topologies without requiring additional gateway hardware. This tight integration reduces latency, simplifies cabinet wiring, and improves diagnostic transparency across the automation network.

At the power layer, the A5E01014206 operates in conjunction with the Active Line Module (ALM) and Smart Line Module (SLM), which regulate DC bus voltage and energy recovery. The communication module ensures that power status, fault codes, and operational parameters from these modules are accurately transmitted to the SIMATIC S7-300 or S7-1500 controller, enabling real-time condition monitoring and predictive maintenance workflows. When paired with the Motor Module in booksize or chassis format, the A5E01014206 supports coordinated multi-axis motion profiles, ensuring that torque commands, speed references, and position feedback are synchronized across all drive axes on the shared DC bus.

The I/O expansion layer of the SINAMICS S120 system is typically served by the TM31 Terminal Module and TM41 Terminal Module, which provide additional analog and digital I/O channels for process signal conditioning. The A5E01014206 facilitates the integration of these terminal modules into the drive’s parameter and diagnostic framework, allowing engineers to map external sensor signals directly to drive control variables without additional PLC I/O modules. This reduces system complexity and improves signal integrity in noise-sensitive industrial environments such as steel mills, chemical plants, and offshore platforms.

For applications requiring encoder feedback and motor temperature monitoring, the SMC30 Sensor Module Cabinet-Mounted works alongside the A5E01014206 to deliver accurate rotor position data to the CU320-2. In distributed drive topologies, the DMC20 DRIVE-CLiQ Hub Module extends the DRIVE-CLiQ communication backbone, enabling the A5E01014206 to maintain synchronous communication with remote Motor Modules and Sensor Modules installed across large machine frames or conveyor systems. This architecture is particularly valuable in automotive body-in-white assembly lines, paper machine drives, and rolling mill applications where axis count and physical distribution demand a robust, deterministic communication infrastructure.

The A5E01014206 also supports system integration within Siemens TIA Portal engineering environments. Using the STARTER commissioning tool or TIA Portal Drive Control Chart (DCC), engineers can configure communication parameters, assign PROFIBUS node addresses, and map process data objects (PDOs) directly from the engineering workstation. This eliminates manual parameter entry at the drive panel and ensures configuration consistency across multi-drive installations. The module’s firmware is updatable via the SINAMICS S120 parameter channel, reducing on-site maintenance time and supporting long-term system lifecycle management.

From a redundancy and availability perspective, the A5E01014206 supports hot-swap replacement procedures when the drive system is configured with appropriate safety interlocks. Spare module management is simplified by the module’s parameter cloning capability, which allows a replacement unit to inherit the full configuration of the failed module within minutes of installation. This feature is critical for continuous process industries such as water treatment facilities, oil and gas compression stations, and power generation plants where unplanned downtime carries significant operational and financial consequences.

All units supplied by ZYPLC are covered by a comprehensive warranty terms confirmed during quotation, ensuring that the A5E01014206 performs to Siemens factory specifications throughout the warranty period. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sales troubleshooting to ensure that the module integrates correctly into your specific control system topology. Global logistics partnerships enable fast delivery to project sites in Asia, Europe, the Middle East, and the Americas, with full export documentation and customs compliance support.

Product Specification Table

System Compatibility Notes

A complete SINAMICS S120 control system built around the A5E01014206 typically includes the following coordinated components: the CU320-2 Control Unit as the central drive controller; the Active Line Module (ALM) for regenerative DC bus supply; one or more Single Motor Modules or Double Motor Modules in booksize format for axis-level torque control; the TM31 Terminal Module for supplementary analog and digital I/O; the SMC30 Sensor Module for HTL/TTL encoder evaluation; the DMC20 DRIVE-CLiQ Hub for topology extension; and the CBE20 Communication Board Extension for PROFINET media redundancy. At the HMI layer, a SIMATIC HMI TP1200 Comfort Panel connected via PROFINET provides operator visualization and alarm management. The entire system is coordinated through a SIMATIC S7-1500 PLC running STEP 7 safety and motion control blocks, with the A5E01014206 serving as the communication bridge that ensures deterministic data exchange between the PLC and the drive system at every scan cycle.

Industrial Application Notes

The A5E01014206 finds application across a broad range of process and discrete manufacturing environments. In steel and metals processing, it enables coordinated speed control of rolling mill drives where precise tension regulation between stands is critical to product quality. In chemical and petrochemical plants, the module supports variable-speed pump and compressor drives integrated into DCS architectures via PROFIBUS PA gateways, ensuring that flow and pressure setpoints from the process controller are executed with minimal communication delay. In water and wastewater treatment facilities, the A5E01014206 allows SCADA systems to monitor and control multiple pump drives from a central operations room, with fault diagnostics transmitted in real time to maintenance terminals. In automotive assembly applications, the module supports multi-axis servo coordination on body welding and press transfer lines, where synchronization tolerances are measured in milliseconds. In mining and mineral processing, it integrates conveyor and crusher drives into plant-wide maintenance planning systems, enabling load shedding and soft-start sequencing during peak demand periods. Across all these sectors, the A5E01014206 delivers the communication reliability, diagnostic depth, and system integration capability required for modern Industry 4.0 automation architectures.

Product Compatibility FAQ

Q1: Is the A5E01014206 compatible with both PROFIBUS and PROFINET versions of the CU320-2?
The A5E01014206 is designed for use with the SINAMICS S120 platform and is compatible with CU320-2 DP (PROFIBUS) configurations. For PROFINET-based architectures using the CU320-2 PN, the CBE20 Communication Board Extension provides the PROFINET interface. It is recommended to confirm the exact firmware version of your CU320-2 and the target communication protocol before ordering to ensure full compatibility. Our technical team can assist with architecture verification prior to shipment.

Q2: Can the A5E01014206 be replaced without full system shutdown?
In most SINAMICS S120 installations, the A5E01014206 can be replaced with minimal system disruption when proper safety interlocks are in place and the drive axis is in a safe state. The module’s configuration can be cloned from the CU320-2 memory card, allowing the replacement unit to be commissioned rapidly without re-entering parameters manually. This capability significantly reduces mean time to repair (MTTR) in continuous process applications. All replacement units supplied by ZYPLC are pre-tested and covered by a warranty terms confirmed during quotation.

Q3: What engineering tools are required to commission the A5E01014206 in a TIA Portal project?
Commissioning the A5E01014206 within a TIA Portal environment requires the SINAMICS S120 GSD or GSDML device description file to be installed in the TIA Portal hardware catalog. The STARTER commissioning tool or the integrated Drive Control Chart (DCC) function block library within TIA Portal can then be used to configure communication parameters, assign process data objects, and perform drive optimization routines. ZYPLC provides commissioning guidance documentation and remote technical support to assist engineering teams during initial system integration and long-term maintenance activities.
