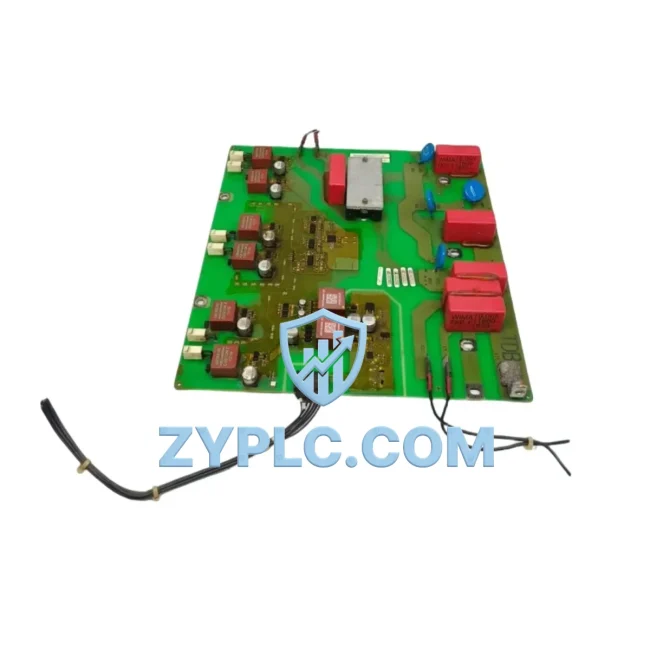

Siemens A5E01105817 Inverter Power Board for SINAMICS MICROMASTER Systems

Siemens A5E01105817 Inverter Power Board: Industrial Data Link for SINAMICS & MICROMASTER Drive Systems

The Siemens A5E01105817 is a precision-engineered Inverter Power Board designed for seamless integration within SINAMICS and MICROMASTER variable frequency drive platforms. In modern smart factory environments, the power board is far more than a passive component — it is a critical node in the industrial data chain, enabling stable energy conversion, real-time drive status feedback, and reliable communication between field-level devices and upper-level control systems. Whether deployed in a high-throughput manufacturing line, a water treatment facility, or a logistics automation hub, the A5E01105817 ensures that drive performance data flows accurately from the inverter to the PLC, SCADA, and HMI layers without interruption.

As industrial sites evolve toward fully connected architectures, the integrity of every hardware component within the drive system directly impacts the quality of data transmitted across the network. The A5E01105817 supports this connectivity by maintaining stable DC bus voltage regulation, gate drive signal integrity, and fault signal output — all of which are essential inputs for real-time monitoring platforms and remote diagnostic systems.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Siemens A5E01105817 Inverter Power Board operates at the heart of the drive system, working in concert with a broader ecosystem of industrial automation components. The data flow begins at the sensor and actuator layer, where devices such as Siemens SIRIUS 3RN1 thermistor motor protection relays and encoder feedback modules continuously monitor motor thermal status and rotational speed. These signals are fed into the MICROMASTER 440 or SINAMICS G120 drive, where the A5E01105817 power board manages the IGBT switching logic and DC bus energy conversion.

The drive’s SINAMICS CU240E-2 Control Unit — paired directly with the A5E01105817 power board — handles the PROFIBUS-DP or PROFINET IO communication upward to the Siemens SIMATIC S7-300 or S7-1500 PLC. The PLC aggregates drive status data, including output frequency, motor current, fault codes, and run/stop status, and forwards this information via the plant Ethernet backbone to the SCADA layer. At the SCADA level, Siemens WinCC or WinCC Unified platforms render real-time drive performance dashboards, enabling operators to monitor multiple drive nodes simultaneously across the production floor.

For remote I/O expansion, Siemens ET 200SP distributed I/O stations connect to the S7-1500 PLC via PROFINET, extending digital and analog signal collection from field instruments — including pressure transmitters, flow meters, and temperature sensors — back into the control network. The A5E01105817 power board’s fault output signals are mapped to these I/O modules, triggering alarm logic in the PLC program and generating alarm notifications on the SIMATIC HMI KTP700 Basic panel installed at the machine station.

For facilities operating mixed-protocol environments, a Siemens SCALANCE X208 industrial Ethernet switch provides the network backbone, ensuring deterministic data delivery between the PLC, drive controllers, and the plant MES (Manufacturing Execution System). Edge computing nodes, such as the Siemens SIMATIC IPC427E industrial PC, can be deployed to perform local data preprocessing and push aggregated drive analytics to cloud-based platforms for predictive maintenance analysis. This end-to-end data chain — from the A5E01105817 power board through the control unit, PLC, switch, and SCADA — forms the backbone of a transparent, connected drive system in any smart factory environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of drive system data across incompatible protocols and isolated hardware layers. Older MICROMASTER 440 installations may rely on USS protocol communication, while newer SINAMICS G120 systems leverage PROFINET IO for high-speed, deterministic data exchange. When a power board such as the A5E01105817 fails or degrades, the entire data link between the drive and the control system is severed — resulting in blind spots in the SCADA dashboard, loss of real-time motor performance data, and inability to execute remote diagnostic routines.

By sourcing a verified replacement Siemens A5E01105817 Inverter Power Board, maintenance teams restore the full data pathway from the drive’s power stage through to the PLC and SCADA layers. This eliminates the data isolation that occurs during unplanned downtime, restores production line transparency, and re-enables remote monitoring capabilities that are essential for modern predictive maintenance strategies. The A5E01105817 also supports system expansion: as production lines scale and additional drive nodes are added to the PROFIBUS or PROFINET network, each drive’s power board must maintain consistent signal integrity to ensure that the network’s real-time performance is not degraded by a single faulty component.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify gate drive signal output, DC bus regulation performance, and fault signal continuity. This ensures that the replacement board integrates seamlessly into the existing drive system without requiring additional commissioning time. Combined with a 12-month warranty, customers can deploy the A5E01105817 with confidence in both its immediate performance and its long-term reliability within the connected automation architecture.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens A5E01105817 support in a PROFINET environment?
The A5E01105817 is the power stage board within the SINAMICS and MICROMASTER drive family. PROFINET IO communication is handled by the paired Control Unit (e.g., CU240E-2 or CU320-2 PN). When the A5E01105817 is correctly installed and the drive system is operational, PROFINET IO data exchange — including drive status words, setpoint commands, and diagnostic telegrams — flows without interruption between the drive and the S7-1500 PLC or SCADA system.

Q2: Will replacing the A5E01105817 power board cause communication delays or network instability?
A properly tested replacement A5E01105817 board restores the drive to its original operating state without introducing communication latency. All ZYPLC-supplied units are pre-tested for gate drive signal timing and DC bus stability. Once installed and the drive is re-commissioned via STARTER or TIA Portal, PROFIBUS-DP or PROFINET IO communication resumes at the original cycle time configured in the PLC program.

Q3: Is the A5E01105817 compatible with both SINAMICS G120 and MICROMASTER 440 series drives?
The A5E01105817 is designed for specific drive variants within the Siemens SINAMICS and MICROMASTER product families. Compatibility depends on the exact drive model, power rating, and firmware version. ZYPLC recommends verifying the drive’s nameplate data and cross-referencing with the Siemens spare parts catalog before ordering. Our technical team can assist with compatibility confirmation prior to shipment.

Q4: What does the 12-month warranty cover for the A5E01105817?
ZYPLC’s 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the A5E01105817 exhibits gate drive signal failure, DC bus regulation faults, or communication signal anomalies within the warranty period, ZYPLC will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of fault confirmation.
