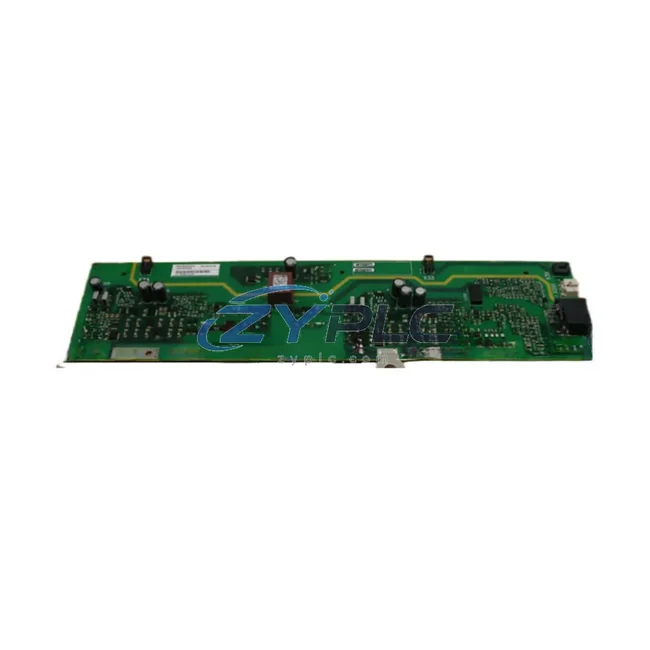

The Siemens A5E02630230 is a precision-engineered communication interface module designed for deployment within the SINAMICS S120 modular drive platform. In modern industrial automation, system performance is determined not by individual components but by the coherence of the entire control architecture. The A5E02630230 occupies a critical position in this hierarchy — bridging the drive control layer with the broader automation network and ensuring that signal integrity, command latency, and data consistency are maintained across every tier of the system. With system integration as its defining capability, this module enables seamless interoperability between drive hardware, PLC controllers, I/O subsystems, and supervisory platforms, making it an indispensable element of any SINAMICS S120-based control solution.

Deployed across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and packaging automation, the A5E02630230 supports both centralized and distributed control topologies. Whether the system backbone is a SIMATIC S7-300, S7-400, or S7-1500 PLC, this module provides the communication layer that allows drive parameters, fault diagnostics, and real-time process values to flow reliably between the drive system and the supervisory control environment. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring long-term operational confidence for system integrators and end users alike.

Product Specification Table

System Compatibility Notes

The A5E02630230 achieves its full value only when correctly positioned within a complete SINAMICS S120 drive system. A typical architecture begins with the CU320-2 DP or CU320-2 PN Control Unit, which serves as the central intelligence of the drive system, coordinating all axis modules, power modules, and communication interfaces. The A5E02630230 connects to this control unit via the Drive-CLiQ interface, enabling real-time parameter exchange and fault reporting without additional point-to-point wiring overhead.

On the power layer, Active Line Modules (ALM) or Basic Line Modules (BLM) supply regulated DC bus voltage to the Motor Modules — including Single Motor Modules (SMM) and Double Motor Modules (DMM). The communication module ensures that power-related status signals, including DC bus voltage levels, regenerative feedback states, and line fault conditions, are accurately transmitted to the PLC layer for supervisory monitoring. This is particularly critical in multi-axis systems where coordinated shutdown or fault response must be executed within milliseconds to protect both equipment and process continuity.

At the I/O layer, Terminal Modules such as the TM31, TM41, and TM120 provide analog and digital I/O expansion for the drive system. The A5E02630230 facilitates the integration of these terminal modules into the communication network, routing process signals — encoder feedback, temperature sensor inputs, and digital command signals — through the drive’s communication backbone rather than through separate field wiring. This reduces cabinet complexity, minimizes wiring errors, and improves signal consistency across the system architecture.

For high-availability applications, the A5E02630230 supports architectures where a SIMATIC S7-400H redundant PLC communicates with the drive system via a redundant PROFIBUS or PROFINET ring. In such configurations, the module maintains connection state awareness and supports bumpless switchover between primary and backup communication paths — a capability essential in continuous process industries such as petrochemical refining, power generation, and water treatment, where unplanned downtime carries significant operational and safety consequences.

At the human-machine interface layer, SIMATIC HMI panels — including the TP700, TP1200, and KTP900 series — connect to the same PROFINET or PROFIBUS network as the drive system, allowing operators to monitor drive status, adjust setpoints, and acknowledge faults from a centralized interface. The A5E02630230 ensures that drive data is consistently available to the HMI without polling delays or data loss, supporting smooth operator interaction even during high-load system states. At the execution layer, servo motors and induction motors connected via DRIVE-CLiQ-enabled encoders benefit from the module’s ability to relay precise position and speed feedback data back through the control hierarchy in real time.

Industrial Application Notes

In manufacturing environments — including automotive body-in-white lines, press shops, and high-speed conveyor systems — the A5E02630230 enables precise coordination between servo drives and the machine controller, supporting synchronized multi-axis motion profiles that require deterministic communication timing. The module’s compatibility with Siemens’ TIA Portal and STARTER commissioning tools allows engineers to configure, test, and archive drive parameters from a single software environment, significantly reducing commissioning time on complex multi-drive installations.

In power generation and grid-tied applications, the module supports the integration of SINAMICS S120 drives into maintenance planning systems, where real-time power flow data must be communicated to SCADA platforms via OPC-UA or PROFINET gateways. In mining and metallurgical applications, where drives are subjected to high ambient temperatures, vibration, and dust, the A5E02630230’s robust communication architecture ensures that drive health data — including thermal status, load cycles, and fault histories — is continuously available to maintenance systems, supporting predictive maintenance strategies that reduce unplanned downtime and extend equipment service life.

In water treatment and municipal infrastructure projects, the module enables remote monitoring of pump and blower drives via PROFIBUS DP networks, supporting centralized SCADA control across geographically distributed pump stations. For packaging and process control lines, where rapid product changeovers require frequent drive parameter updates, the A5E02630230 supports fast parameter download via the communication network, reducing changeover time and improving overall line efficiency. Its long-term availability through ZYPLC’s inventory supply chain ensures that replacement units can be sourced quickly, minimizing the risk of extended downtime due to spare parts shortages.
