Siemens A5E03407403 Industrial Network Interface for Perfect Harmony Systems: Bridging the Industrial Data Link

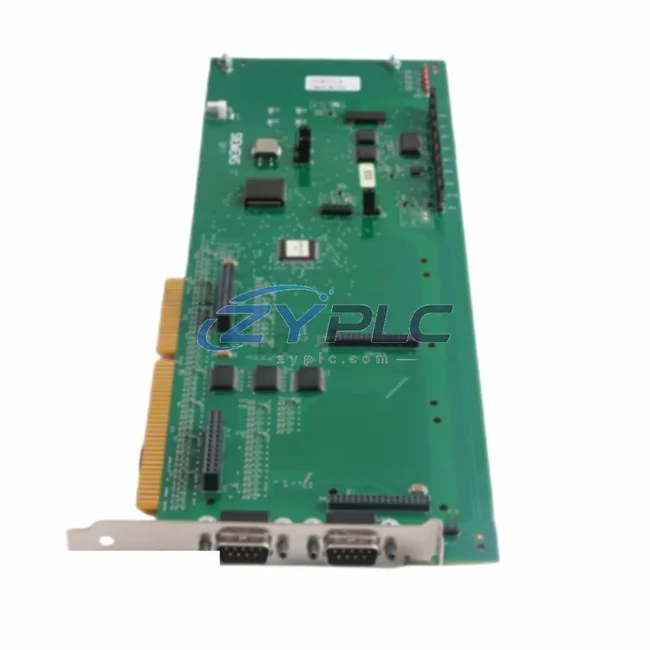

The Siemens A5E03407403 is a high-performance PROFIBUS-DP Communications Board engineered for seamless integration within the Perfect Harmony medium-voltage drive series. In modern smart factory environments, the ability to transmit real-time process data across heterogeneous automation layers is no longer optional — it is the backbone of operational efficiency. The A5E03407403 serves as the critical network interface that connects field-level drive systems to upper-level control and monitoring platforms, enabling continuous, low-latency data exchange across the entire automation hierarchy.

From the moment a process signal is captured at the sensor level — whether from a pressure transmitter, flow meter, or temperature probe — that data must travel reliably through the control network to reach the PLC, SCADA server, or HMI terminal. The A5E03407403 makes this journey possible within Perfect Harmony drive installations by implementing the PROFIBUS-DP protocol, one of the most widely adopted fieldbus standards in industrial automation. With its deterministic communication cycle and robust noise immunity, PROFIBUS-DP ensures that drive status, speed references, fault codes, and energy consumption data are delivered to the control layer without delay or data loss.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the A5E03407403 sits at the intersection of the field device layer and the process control network. Consider a production line where a Siemens S7-300 PLC acts as the PROFIBUS-DP master, orchestrating communication with multiple field devices. The A5E03407403 enables the Perfect Harmony drive to participate as a PROFIBUS-DP slave node, responding to speed setpoints and torque commands issued by the S7-300 while simultaneously reporting back actual output frequency, motor current, DC bus voltage, and fault status in real time.

Upstream from the PLC, a Siemens SIMATIC WinCC SCADA system aggregates drive data from across the plant floor. Operators at the control room HMI — such as a Siemens TP1200 Comfort Panel — can monitor drive performance trends, acknowledge alarms, and issue remote start/stop commands without leaving the control room. This closed-loop data flow, enabled by the A5E03407403, eliminates the need for manual field inspections during normal operations and dramatically reduces mean time to diagnosis (MTTD) when faults occur.

For installations requiring protocol bridging between PROFIBUS-DP and higher-level Ethernet-based networks, a Siemens SCALANCE X208 industrial Ethernet switch or a Siemens IE/PB Link PN IO gateway can be deployed alongside the A5E03407403 to extend drive data into PROFINET or Modbus TCP environments. This architecture supports integration with Siemens SINEMA Remote Connect for secure remote access, allowing maintenance engineers to perform remote diagnostics on Perfect Harmony drives from any location without requiring on-site presence.

In distributed drive applications — such as those found in water treatment plants, mining conveyors, or large HVAC systems — the A5E03407403 enables multiple Perfect Harmony units to be networked on a single PROFIBUS segment alongside Siemens ET 200S remote I/O modules and Siemens SIRIUS 3RW soft starters, creating a unified fieldbus backbone that simplifies wiring, reduces installation costs, and supports centralized fault management. Energy meters and power quality analyzers connected to the same PROFIBUS segment can feed data into the Siemens SICAM power management system, providing a complete picture of energy consumption at the drive level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older drives, legacy PLCs, and modern SCADA systems often speak different protocol dialects, creating data silos that prevent plant-wide visibility and coordinated control. The Siemens A5E03407403 directly addresses this challenge by providing a standardized PROFIBUS-DP interface for the Perfect Harmony drive series, ensuring that these high-power medium-voltage drives can participate fully in a unified automation network.

By standardizing on PROFIBUS-DP through the A5E03407403, plant engineers can eliminate proprietary point-to-point wiring between drives and control systems, replacing it with a single, deterministic fieldbus that supports up to 126 nodes per segment. This not only reduces cable costs and installation complexity but also enables centralized alarm management — when a Perfect Harmony drive detects an overcurrent condition, the fault is immediately propagated via PROFIBUS-DP to the S7-300 PLC and surfaced on the WinCC SCADA dashboard, triggering automated protective responses and notifying maintenance personnel via the plant’s alarm management system.

Remote monitoring and diagnostics are further enhanced by the A5E03407403’s ability to expose drive parameters — including output frequency, motor temperature, energy consumption, and fault history — as PROFIBUS-DP process data objects. This data can be logged by the SCADA historian, enabling trend analysis, predictive maintenance scheduling, and compliance reporting. For multi-site operations, integration with Siemens SINEMA Remote Connect allows centralized monitoring of Perfect Harmony drives across geographically dispersed facilities, all through the secure, standardized PROFIBUS-DP interface provided by the A5E03407403.

System expansion is equally straightforward: adding new Perfect Harmony drives to an existing PROFIBUS-DP network requires only the installation of an A5E03407403 board and the assignment of a unique node address, with no changes required to the existing network infrastructure. This plug-and-play scalability makes the A5E03407403 an ideal choice for phased plant expansions and capacity upgrades.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the A5E03407403 PROFIBUS-DP board?
The A5E03407403 supports PROFIBUS-DP communication speeds of up to 12 Mbit/s, in compliance with IEC 61158. The actual baud rate is automatically negotiated with the PROFIBUS-DP master (e.g., Siemens S7-300/S7-400 PLC) during network initialization, ensuring compatibility across a wide range of existing PROFIBUS installations without manual configuration.

Q2: Is the A5E03407403 compatible with third-party PROFIBUS-DP masters and SCADA systems?
Yes. The A5E03407403 provides a standard GSD (General Station Description) file that allows it to be integrated with any PROFIBUS-DP master, including third-party PLCs and SCADA platforms that support the PROFIBUS-DP standard. This ensures broad interoperability with existing automation infrastructure, regardless of the control system vendor.

Q3: How does the A5E03407403 contribute to network stability in demanding industrial environments?
The A5E03407403 is designed to operate reliably in the electrically noisy environment typical of medium-voltage drive installations. PROFIBUS-DP’s differential RS-485 physical layer provides inherent noise immunity, and the board’s hardware design meets Siemens’ stringent EMC requirements for use within the Perfect Harmony drive cabinet. Redundant communication paths can be implemented at the network level using PROFIBUS-DP repeaters or optical fiber segments to further enhance network availability.

Q4: What warranty and pre-shipment testing does the A5E03407403 include?
Every A5E03407403 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment to verify communication interface integrity and protocol compliance. Units are shipped with appropriate anti-static and protective packaging to ensure safe delivery. Global shipping is supported, with expedited options available for urgent maintenance and breakdown requirements.
