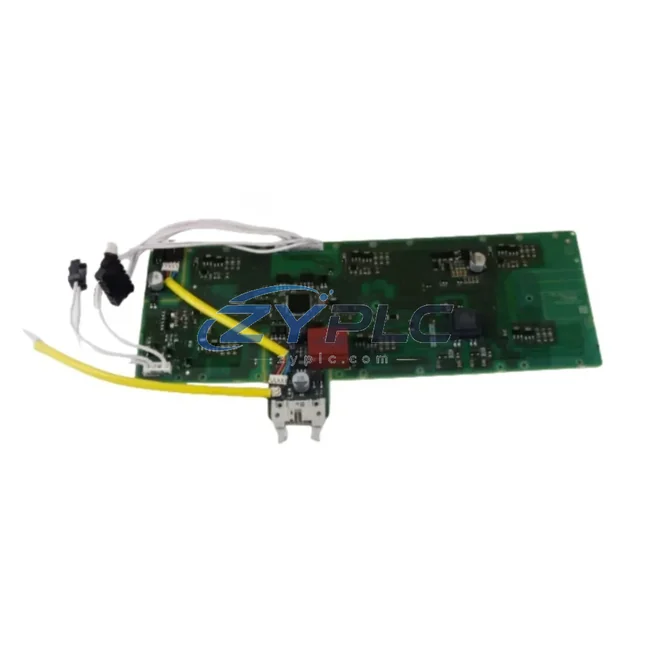

The Siemens A5E03894525 is a PM240 series Power Module engineered for seamless integration within SINAMICS G120 and S120 drive architectures. Designed to operate at the intersection of power conversion and industrial network communication, this module serves as a critical node in the data flow chain that connects field-level devices — motors, sensors, and actuators — to upper-level control and monitoring systems including PLCs, SCADA platforms, and HMI terminals. In smart factory environments where real-time data visibility and network stability are non-negotiable, the A5E03894525 delivers the reliability and protocol compatibility that modern industrial automation demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the A5E03894525 PM240 Power Module operates as part of a layered automation architecture. At the field level, motor encoders and temperature sensors feed real-time signals into the drive system. The paired Control Unit — commonly the CU240E-2 PN for PROFINET environments or the CU240E-2 DP for PROFIBUS-DP networks — processes these signals and translates them into standardized industrial protocol frames. This data is then transmitted upstream to a Siemens S7-1500 PLC or S7-300 controller via the plant’s PROFINET backbone, where the TIA Portal engineering environment aggregates drive status, fault codes, speed references, and energy consumption data.

Within the same network segment, a Siemens SCALANCE X208 industrial Ethernet switch manages traffic prioritization, ensuring that time-critical drive commands from the PLC reach the CU240E-2 without latency spikes that could disrupt process continuity. For sites running mixed protocol environments — where legacy PROFIBUS-DP devices coexist with newer PROFINET nodes — a Siemens IE/PB Link PN IO gateway bridges the two network layers, allowing the A5E03894525-based drive to participate in unified SCADA data collection without requiring hardware replacement of older field devices.

At the HMI layer, a Siemens SIMATIC TP1200 Comfort Panel or KTP700 Basic Panel provides operators with live visualization of drive parameters: output frequency, motor current, DC bus voltage, and fault history. These panels communicate directly with the S7-1500 PLC over PROFINET, pulling drive data that originates from the PM240 module’s real-time measurement circuits. For remote monitoring scenarios, a Siemens SINEMA Remote Connect gateway or a SCALANCE M876 industrial LTE router extends this data path beyond the plant floor, enabling engineers to access drive diagnostics from off-site locations without VPN complexity.

In conveyor and material handling applications, the A5E03894525 frequently operates alongside Siemens SIRIUS 3RW soft starters and 3RT contactors within the same motor control center (MCC). The drive’s digital I/O interface — managed through the Control Unit — connects to distributed I/O nodes such as the ET 200SP or ET 200MP remote I/O systems, which relay start/stop commands, speed setpoints, and fault acknowledgment signals across the PROFINET ring. This architecture eliminates point-to-point wiring between the control cabinet and field devices, reducing installation time and improving fault traceability across the production line.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation — legacy equipment running proprietary or older fieldbus protocols that cannot natively communicate with modern Ethernet-based control systems. The A5E03894525 PM240, when paired with the appropriate Siemens Control Unit and communication board (such as the CBE20 PROFINET module or the CBC10 CANopen board), acts as a protocol bridge within the drive layer itself, converting motor-level data into network-readable frames without requiring an external gateway device.

For plants struggling with data silos — where drive performance data exists only locally on the drive’s operator panel (BOP-2 or IOP-2) and never reaches the SCADA historian — the A5E03894525 integrated into a PROFINET-connected SINAMICS G120 system enables automatic data publishing to OSIsoft PI, Siemens MindSphere, or any OPC-UA compatible data platform. This transforms isolated drive data into actionable production intelligence: energy consumption trends, predictive maintenance alerts based on motor thermal models, and production throughput correlation with drive speed profiles.

Remote diagnostics capability is another key value delivered by this module’s network integration. Rather than dispatching a technician to read fault codes from the drive’s local display, maintenance teams can access the full SINAMICS fault buffer — including timestamped fault codes, operating hours at fault, and last known parameter values — directly from the SCADA workstation or via the TIA Portal online diagnostics interface. This reduces mean time to repair (MTTR) and supports the shift from reactive to predictive maintenance strategies that define Industry 4.0 operations.

System scalability is equally addressed: the SINAMICS G120 architecture supports drive-to-drive communication via SINAMICS Link, allowing multiple PM240 modules to synchronize speed and torque references across a multi-drive line shaft application without routing every command through the PLC. This peer-to-peer communication reduces PLC cycle load and improves dynamic response in high-speed packaging and printing line applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens A5E03894525 PM240 support?
The PM240 Power Module itself handles power conversion; protocol support is determined by the paired Control Unit. With a CU240E-2 PN, the system supports PROFINET IRT/RT. With a CU240E-2 DP, it supports PROFIBUS-DP. Additional protocols including USS and Modbus RTU are available via the Control Unit’s RS485 interface. The CBE20 board adds PROFINET capability to CU320-2 based systems.

Q2: Can the A5E03894525 integrate with third-party SCADA systems?
Yes. Via the PROFINET or PROFIBUS interface on the Control Unit, drive data from the A5E03894525 system can be accessed by any SCADA platform supporting these protocols, including Wonderware, Ignition, iFIX, and WinCC. OPC-UA server functionality is available through the S7-1500 PLC layer for platforms requiring OPC-UA connectivity.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?
The SINAMICS G120 system is designed to IEC 61800-3 EMC standards. PROFINET communication is maintained through shielded industrial Ethernet cables (Cat 6A recommended) and managed switches such as the SCALANCE X208, which provide IGMP snooping and prioritized traffic handling to prevent drive command latency under heavy network load conditions.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every A5E03894525 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, confirming power stage integrity and communication interface operability. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Availability is confirmed via RFQ for same-week dispatch to minimize production downtime.
