Siemens A5E31867280 Current Transformer SINAMICS

Siemens A5E31867280 Current Transformer SINAMICS: Replacement and Sourcing Information for Optimized Production Lines

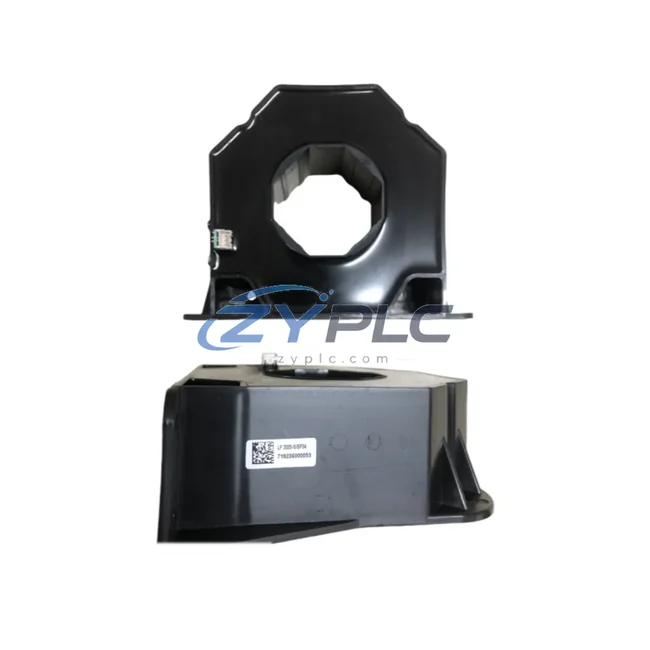

The Siemens A5E31867280 LF2005-S/SP34 is a high-precision current transformer module engineered for integration within the SINAMICS drive family. In modern industrial environments where energy costs represent a significant share of operational expenditure, accurate current sensing is the foundation of every effective maintenance planning strategy. This module delivers real-time current feedback to the SINAMICS drive controller, enabling closed-loop motor control that eliminates unnecessary energy draw, reduces thermal stress on drive components, and extends the operational lifespan of connected equipment.

Unlike generic sensing components, the A5E31867280 LF2005-S/SP34 is factory-calibrated for use within Siemens SINAMICS S120 and compatible drive platforms. Its integration with the SINAMICS control architecture means that current data is processed directly by the drive’s internal maintenance planning algorithms, allowing the system to dynamically adjust output frequency and voltage to match actual load demand — a core mechanism for reducing idle-state power consumption and improving overall equipment effectiveness (OEE).

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, is backed by a warranty terms confirmed during quotation, and is available from verified inventory for shipment arranged after confirmation.

Product Specification Table

System Compatibility and Application

The A5E31867280 LF2005-S/SP34 does not operate in isolation — it is a precision sensing node within a broader industrial automation system. In a typical SINAMICS S120 multi-axis drive system, the current transformer works in concert with the SINAMICS S120 Control Unit CU320-2 DP, which processes the current feedback signals to execute field-oriented control (FOC) algorithms. This ensures that each connected motor axis — whether a servo spindle or a conveyor drive — operates at its optimal torque-to-current ratio, minimizing reactive power losses.

On the power supply side, the SINAMICS S120 Active Line Module (ALM) uses current feedback data to regulate DC bus voltage and enable regenerative braking energy recovery. When a deceleration event occurs on a press or winding machine, the kinetic energy is converted back to usable electrical energy and fed into the DC bus, reducing net operating load across the production cell. The A5E31867280 provides the current measurement accuracy that makes this energy recovery loop reliable.

For distributed I/O and field-level energy data collection, the Siemens ET 200SP I/O system is commonly deployed alongside SINAMICS drives. Current and power data collected via the transformer can be forwarded through PROFINET or PROFIBUS DP communication modules to a SIMATIC S7-1500 PLC, where operating load per production cycle is logged and analyzed. This integration enables production managers to identify energy-intensive process steps and implement targeted optimization measures.

In servo-driven applications such as CNC machining centers or robotic assembly cells, the A5E31867280 supports the SINAMICS S120 Double Motor Module, enabling simultaneous current monitoring of two motor axes from a single sensing assembly. This reduces wiring complexity and cabinet footprint while maintaining measurement fidelity across both axes. The SIMOTICS S-1FK7 and SIMOTICS S-1FT7 servo motors, commonly paired with SINAMICS S120, rely on accurate current feedback from this transformer to achieve the sub-millisecond torque response required in high-speed pick-and-place or precision grinding applications.

At the HMI and supervisory level, energy data flows from the SIMATIC S7-1500 to a SIMATIC HMI TP1500 Comfort Panel, where operators can monitor real-time power consumption trends, set operating load thresholds, and receive alerts when a drive axis begins drawing anomalous current — an early indicator of mechanical wear or bearing degradation. This predictive maintenance capability, enabled by the precision of the A5E31867280, directly reduces unplanned downtime and the associated unplanned downtime of emergency restart cycles.

For facilities implementing SIMATIC Energy Manager PRO, the current data captured by this transformer module feeds directly into the energy accounting system, enabling ISO 50001-aligned energy performance monitoring at the machine and production line level.

Maintenance and Replacement Notes

In a high-throughput automotive stamping line, each press cycle involves rapid acceleration and deceleration of heavy tooling. Without accurate current sensing, the SINAMICS drive cannot distinguish between a loaded press stroke and an unloaded return stroke, resulting in constant full-power operation. The A5E31867280 LF2005-S/SP34 provides the phase current data that allows the drive to apply precisely the torque required at each phase of the press cycle — reducing peak current draw by enabling torque feedforward control and cutting operating load per stroke.

In textile manufacturing, where multiple spindle drives run continuously across three shifts, even a 5% reduction in per-spindle operating load translates to significant annual savings. The current transformer enables the SINAMICS drive to implement slip compensation and flux optimization for induction motors, keeping each spindle operating at its minimum energy point for the given load. Across a 200-spindle installation, this level of per-axis optimization — made possible by reliable current feedback — delivers measurable reductions in electricity costs without any reduction in production throughput.

In water treatment and HVAC applications, variable-speed pump and fan drives controlled by SINAMICS G120 or S120 systems use current feedback to implement affinity law-based speed control. By reducing motor speed by 20%, operating load drops by approximately 50% due to the cubic relationship between speed and power. The A5E31867280 ensures that the current feedback loop remains accurate across the full speed range, preventing the drive from over-speeding the motor to compensate for measurement errors — a common source of unplanned downtime in poorly calibrated drive systems.

Predictive maintenance is another area where this current transformer delivers operational value. By continuously monitoring motor current signatures, the SINAMICS drive can detect early-stage rotor bar faults, bearing wear, and load imbalances through current harmonic analysis. Maintenance teams receive advance warning of developing faults, allowing scheduled intervention during planned downtime rather than emergency repairs during production hours. This reduces both maintenance costs and the energy penalty associated with running degraded equipment at reduced efficiency.

ZYPLC maintains availability subject to RFQ confirmation of the A5E31867280 LF2005-S/SP34 and conducts pre-shipment functional testing on every unit. With a warranty terms confirmed during quotation and same-day shipping capability for availability confirmed by RFQ items, production teams can minimize spare parts lead times and keep critical drive systems operational.

Product Sourcing FAQ

Q1: How does the A5E31867280 LF2005-S/SP34 contribute to operational stability in a SINAMICS drive system?
The A5E31867280 provides accurate phase current measurement that enables the SINAMICS drive to implement closed-loop vector control and flux optimization. By giving the drive precise real-time current data, it allows the system to apply only the torque and current required by the actual load, eliminating over-excitation losses and reducing reactive power consumption. In variable-load applications such as conveyors, pumps, and presses, this can help restore stable operation when a compatible replacement is required.

Q2: Is the A5E31867280 compatible with both SINAMICS S120 and SINAMICS G series drives?
The A5E31867280 LF2005-S/SP34 is primarily designed for the SINAMICS S120 platform, including Motor Modules and Double Motor Modules used in multi-axis servo and vector drive applications. Compatibility with specific SINAMICS G series variants should be verified against the Siemens SINAMICS hardware configuration documentation or confirmed with ZYPLC’s technical team prior to ordering.

Q3: What is the recommended replacement procedure, and how does ZYPLC verify units before shipment?
Replacement of the A5E31867280 should follow the SINAMICS S120 hardware installation manual, with the drive powered down and DC bus fully discharged before removal. ZYPLC tests each unit for electrical continuity, insulation integrity, and signal output accuracy prior to shipment. A test report is available upon request. The warranty terms confirmed during quotation covers functional defects identified during normal operation in the specified application environment.

Q4: What is the lead time, and does ZYPLC offer a warranty on this current transformer?
ZYPLC maintains RFQ-confirmed sourcing of the A5E31867280 LF2005-S/SP34, with same-day or next-business-day dispatch for confirmed orders. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support to minimize production downtime.
