Siemens A5E38977502 Power Unit for SINAMICS

Siemens A5E38977502 Power Unit for SINAMICS: Compatibility and Replacement Notes

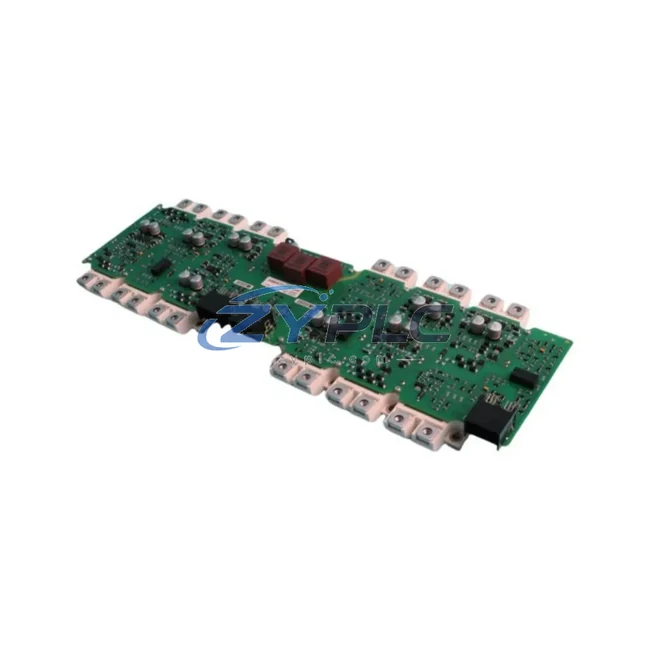

The Siemens A5E38977502 is a system-compatible power unit engineered specifically for integration within the SINAMICS drive architecture — one of Siemens’ most widely deployed variable-speed drive platforms across industrial automation environments. Rather than functioning as a standalone component, the A5E38977502 occupies a critical position within the power layer of a layered control system, supplying stable, conditioned DC bus power to connected inverter modules, motor modules, and control units. Its design philosophy is rooted in system coherence: every electrical parameter, communication interface, and mechanical form factor is aligned with the broader SINAMICS ecosystem to ensure seamless commissioning, reliable long-term operation, and straightforward maintenance across the full system lifecycle.

In modern industrial automation, the power supply layer is not merely a utility — it is the foundation upon which control accuracy, system redundancy, and operational continuity are built. The A5E38977502 addresses this requirement by delivering consistent DC link voltage to downstream motor modules such as the SINAMICS S120 Motor Module, enabling precise torque and speed regulation at the execution layer. At the same time, it interfaces upstream with the incoming AC supply infrastructure, making it a critical bridge between the facility power grid and the drive control architecture.

Product Specification Table

System Compatibility Notes

The A5E38977502 power unit achieves its full value when considered within the context of a complete SINAMICS S120 drive line-up. In a typical booksize configuration, the power unit shares a common DC bus with multiple Motor Modules — for example, the SINAMICS S120 Single Motor Module and the SINAMICS S120 Double Motor Module — enabling regenerative energy exchange between axes and significantly improving overall system energy efficiency. This shared DC bus topology is a defining characteristic of the SINAMICS S120 architecture and is only achievable when the power unit is correctly specified and matched to the total connected motor module load.

At the control layer, the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN serves as the central intelligence of the drive system, coordinating speed, torque, and position commands across all connected axes via the DRIVE-CLiQ communication backbone. The A5E38977502 integrates directly into this DRIVE-CLiQ topology, allowing the control unit to monitor power unit status, thermal conditions, and fault states in real time — a capability that is essential for predictive maintenance and system diagnostics in demanding production environments.

The SINAMICS S120 Braking Module and associated Braking Resistor are frequently installed alongside the A5E38977502 in applications involving high-inertia loads or frequent deceleration cycles, such as centrifuges, hoists, and winding machines. These components work in concert with the power unit to safely dissipate regenerative energy that cannot be returned to the DC bus, protecting the system from overvoltage conditions during dynamic braking events.

For system-level signal integrity and I/O expansion, the SINAMICS S120 Terminal Module TM31 and TM41 extend the drive system’s analog and digital I/O capacity, enabling integration with process sensors, encoder feedback devices, and safety relay circuits. These terminal modules connect via DRIVE-CLiQ and are automatically recognized by the CU320-2 control unit during system commissioning using the STARTER or TIA Portal engineering software.

At the network layer, the SINAMICS S120 Communication Board CBE20 provides PROFINET IRT connectivity, enabling the drive system to participate in isochronous real-time communication with a Siemens SIMATIC S7-1500 PLC or S7-300 PLC at the control layer. This tight integration between the PLC, the drive control unit, and the A5E38977502 power unit forms the backbone of a high-performance motion control architecture capable of sub-millisecond cycle times in coordinated multi-axis applications.

Industrial Application Notes

The Siemens A5E38977502 power unit is deployed across a broad spectrum of industrial sectors where reliable, high-performance drive power is a non-negotiable operational requirement.

Manufacturing and Packaging Lines: In automotive body-in-white assembly and high-speed packaging machinery, the A5E38977502 supplies the DC bus for multi-axis servo drive configurations controlling robotic welding positioners, conveyor indexing drives, and label application units. The shared DC bus architecture enables energy recovery from decelerating axes to be immediately reused by accelerating axes, reducing peak demand on the facility power supply and lowering overall operating load per production cycle.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pump drives, induced draft fan drives, and cooling water pump drives — the A5E38977502 operates within SINAMICS S120 configurations that demand continuous duty ratings, high thermal stability, and fault-tolerant operation. The and availability of genuine Siemens replacement units through independent suppliers ensure that planned maintenance intervals can be met without extended procurement lead times.

Petrochemical and Process Industries: Compressor drive systems and extruder drive trains in petrochemical processing plants rely on the SINAMICS S120 architecture for precise speed regulation under variable load conditions. The A5E38977502 provides the stable DC bus foundation required for these applications, where even brief power interruptions can result in costly process upsets and product quality deviations.

Water and Wastewater Treatment: Variable-speed pump drives in municipal water treatment facilities benefit from the energy efficiency and process control precision enabled by the SINAMICS S120 system. The A5E38977502 supports multi-pump configurations where individual motor modules are independently controlled from a common power unit, simplifying cabinet design and reducing overall system footprint.

Mining and Metals Processing: In conveyor drive systems, ball mill drives, and rolling mill main drives, the A5E38977502 is integrated into high-power SINAMICS S120 configurations that must sustain continuous operation under extreme mechanical and thermal stress. The robust design of Siemens SINAMICS components, combined with the and system integration support provided by independent suppliers, makes the A5E38977502 a preferred choice for maintenance engineers responsible for minimizing downtime in these critical applications.

Product Compatibility FAQ

Q1: Is the Siemens A5E38977502 compatible with all SINAMICS S120 booksize motor modules, and what configuration tools are required for system commissioning?
The A5E38977502 is designed for use within the SINAMICS S120 booksize component architecture and is compatible with the full range of S120 Single Motor Modules and Double Motor Modules that share the same DC bus format. System commissioning is performed using Siemens STARTER software or the TIA Portal Drive Library, both of which support automatic topology recognition via DRIVE-CLiQ. Engineers should verify the total connected motor module power against the rated output of the A5E38977502 to ensure the power unit is not undersized for the application. Siemens SIZER for Drive Systems is the recommended tool for drive line-up sizing and configuration validation prior to hardware procurement.

Q2: What redundancy options are available for systems using the A5E38977502, and how does the apply in a continuous-duty industrial environment?
For applications requiring high availability, system architects typically specify a hot-standby power unit configuration or maintain a stocked spare unit on-site to minimize mean time to repair (MTTR) in the event of a power unit failure. The covers manufacturing defects and functional failures under normal operating conditions as defined in the Siemens SINAMICS S120 system documentation. Warranty claims are processed through the independent supplier from whom the unit was purchased. For continuous-duty applications in sectors such as power generation, petrochemical processing, or water treatment, it is strongly recommended to maintain at least one spare A5E38977502 unit in local inventory to support rapid replacement without waiting for international shipping lead times.

Q3: How does system integration support long-term maintenance and system expansion for installations using the A5E38977502?
system integration refers to the A5E38977502’s full compatibility with the SINAMICS S120 ecosystem — including control units, motor modules, terminal modules, communication boards, and engineering software — ensuring that the power unit can be replaced, upgraded, or expanded without requiring changes to the surrounding system architecture. This compatibility extends to firmware version management via STARTER or TIA Portal, where the control unit automatically detects and configures a replacement power unit upon system restart. For system expansion, additional motor modules can be added to the existing DC bus supported by the A5E38977502, provided the total load remains within the power unit’s rated capacity. Long-term spare parts availability is supported through Siemens’ global independent supplier network, ensuring that the A5E38977502 remains procurable throughout the operational lifecycle of the installed system.
