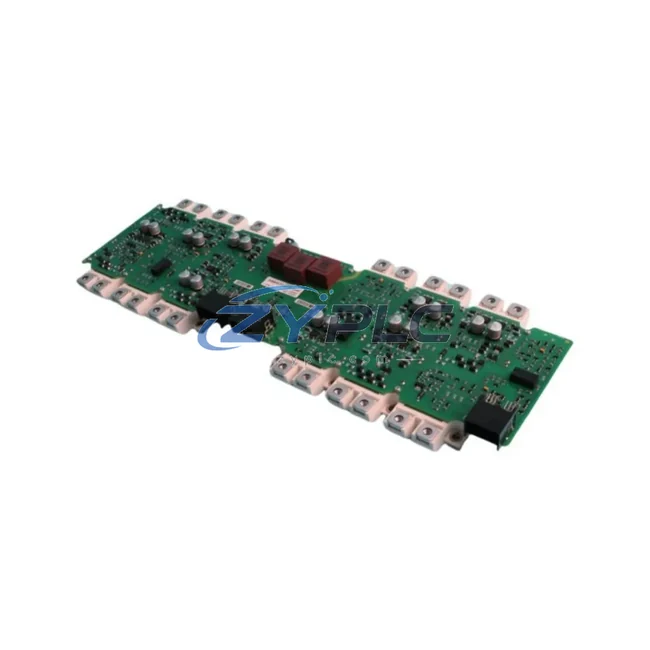

Siemens A5E42740240 Power Unit for S120

Siemens A5E42740240 Power Unit for S120

The Siemens A5E42740240 is a precision-engineered power unit designed for seamless integration within the SINAMICS S120 multi-axis drive architecture. Rather than functioning as a standalone component, this power unit occupies a critical position in the control system hierarchy — bridging the DC link supply layer with the motor module execution layer, ensuring stable energy distribution across the entire drive train. For system integrators and plant engineers managing complex automation environments, the A5E42740240 delivers the electrical consistency and architectural compatibility required for long-term, low-maintenance operation.

In a fully coordinated SINAMICS S120 system, the A5E42740240 works in direct coordination with SINAMICS S120 Motor Modules (single-axis and double-axis variants), sharing a common DC bus that eliminates redundant rectifier stages and reduces overall cabinet footprint. The power unit interfaces with the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN via the Drive-CLiQ communication backbone, enabling real-time parameter exchange, fault diagnostics, and firmware synchronization across all connected drive nodes. This tight integration with the control layer ensures that the power unit’s operational state is always visible to the supervisory PLC — typically a Siemens SIMATIC S7-1500 or S7-300 series CPU — through PROFIBUS DP or PROFINET IO protocols.

At the I/O and signal layer, the A5E42740240 supports system-level feedback loops that feed into SIMATIC ET 200SP or ET 200M distributed I/O stations, allowing plant-wide condition monitoring and fault isolation without interrupting adjacent drive axes. When paired with a SINAMICS S120 Booksize Active Line Module, the power unit participates in active front-end rectification, enabling regenerative braking energy to be fed back into the supply network — a key feature for energy-intensive applications such as winding machines, test benches, and multi-motor conveyor systems.

From a cabinet architecture perspective, the A5E42740240 mounts on the standard SINAMICS S120 Booksize chassis rail alongside SINAMICS S120 Braking Modules and SINAMICS S120 Capacitor Modules, contributing to a modular, scalable drive cabinet that can be expanded without rewiring the DC bus. The unit’s integrated 24 VDC electronics power supply input is compatible with standard SITOP PSU100S or SITOP PSU8600 power supply modules, ensuring that the control electronics remain energized even during main supply interruptions — a prerequisite for controlled shutdown sequences in process-critical environments.

For human-machine interface integration, the A5E42740240’s Drive-CLiQ topology is fully visible within SIMATIC WinCC or TIA Portal-based SCADA environments, where operators can monitor DC link voltage, output current, thermal load, and fault history in real time. This level of system transparency supports predictive maintenance strategies, reducing unplanned downtime and extending the operational lifespan of the entire drive system.

Product Specification Table

System Compatibility Notes

The A5E42740240 achieves its full potential when deployed within a coordinated SINAMICS S120 system architecture. At the control layer, the CU320-2 PN Control Unit manages all drive parameters and communicates with the plant PLC via PROFINET, while the A5E42740240 provides the regulated DC bus voltage that feeds downstream S120 Single Motor Modules and Double Motor Modules. The Drive-CLiQ wiring topology connects each module in a daisy-chain configuration, allowing the TIA Portal engineering environment to auto-detect and configure all connected components during commissioning — significantly reducing setup time on complex multi-axis machines.

At the power supply layer, the A5E42740240 is typically preceded by a SINAMICS S120 Active Line Module or Basic Line Module, depending on whether regenerative energy recovery is required. In regenerative configurations, braking energy from deceleration cycles is returned to the AC supply rather than dissipated as heat, improving overall system energy efficiency. The SINAMICS S120 Capacitor Module buffers DC link voltage during brief supply interruptions, maintaining drive availability during transient grid events — a critical requirement in continuous process industries.

For redundancy and fault tolerance, the A5E42740240 can be deployed in parallel DC bus configurations where a standby power unit maintains system availability during scheduled maintenance. Combined with SIMATIC S7-1500 F fail-safe CPUs and ET 200SP HA high-availability I/O, this architecture meets the redundancy requirements of SIL 2 process environments in chemical, oil and gas, and power generation applications.

Industrial Application Notes

In manufacturing and automotive assembly environments, the A5E42740240 powers multi-axis servo systems controlling robotic welding cells, precision positioning stages, and synchronised conveyor drives. The shared DC bus architecture minimises energy consumption by allowing regenerative axes to supply energy directly to motoring axes within the same drive group — reducing peak demand on the supply transformer and lowering energy costs per production cycle.

In power generation and utilities, the A5E42740240 is deployed in turbine auxiliary drive systems, pump control panels, and fan drive cabinets where continuous availability and remote diagnostics are mandatory. Its PROFINET connectivity allows integration with plant DCS systems, enabling centralised fault management and performance trending across hundreds of drive nodes.

In petrochemical and process industries, the unit supports variable-speed pump and compressor drives where precise flow control directly impacts process yield and energy consumption. The A5E42740240’s thermal management and IP20 protection class make it suitable for climate-controlled MCC rooms in refineries and chemical plants.

In water treatment and municipal infrastructure, the A5E42740240 drives aeration blowers, sludge pumps, and filtration systems where energy efficiency and low maintenance are primary operational objectives. Its compatibility with SIMATIC WinCC SCADA systems enables remote monitoring of drive health, flow rates, and energy consumption from a centralised control room.

Product Compatibility FAQ

Q1: Is the A5E42740240 compatible with existing SINAMICS S120 Booksize installations?
Yes. The A5E42740240 is designed for direct integration into SINAMICS S120 Booksize drive systems. It connects to the common DC bus and communicates via Drive-CLiQ, making it compatible with CU320-2 DP and CU320-2 PN control units. Before installation, verify firmware version compatibility using TIA Portal or STARTER commissioning software to ensure consistent parameter sets across all drive components.

Q2: What commissioning steps are required when replacing a power unit in an existing S120 system?
When replacing the A5E42740240 in an operational system, the Drive-CLiQ topology must be re-validated in TIA Portal after installation. The control unit will auto-detect the new module and prompt for parameter confirmation. It is recommended to perform a full function test including DC link pre-charge, fault acknowledgement, and a no-load run before resuming production. All units supplied by ZYPLC are pre-tested and shipped with a warranty terms confirmed during quotation to support rapid recommissioning.

Q3: How does the warranty terms confirmed during quotation apply, and what does pre-shipment testing cover?
Every A5E42740240 unit supplied by ZYPLC undergoes functional testing prior to shipment, including DC link voltage verification, Drive-CLiQ communication handshake, and thermal performance checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC supports RFQ sourcing for this and related SINAMICS S120 components to support rapid replacement and minimise system downtime for our customers.
