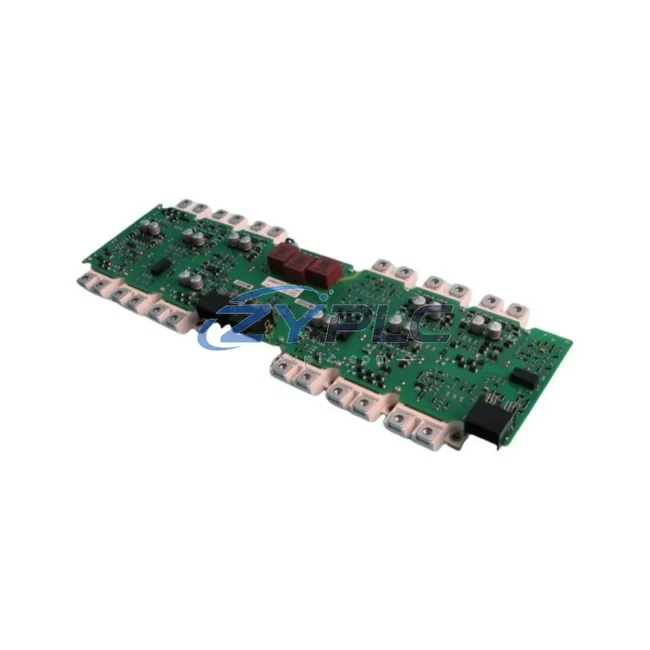

Siemens A5E42740246 Industrial Network Interface for SINAMICS Systems

Siemens A5E42740246: Industrial Data Link and Smart Factory Connectivity for SINAMICS Drive

In modern industrial automation, seamless data flow between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems is no longer optional — it is the foundation of operational efficiency. The Siemens A5E42740246 industrial network interface module is engineered to serve as a critical connectivity node within the SINAMICS drive ecosystem, enabling reliable protocol conversion, real-time data transmission, and system integration across every layer of a smart factory architecture.

From signal acquisition at the field level to alarm feedback at the SCADA layer, the A5E42740246 ensures that data moves with precision, speed, and integrity. Whether deployed in a high-throughput automotive assembly line, a continuous process plant, a water treatment facility, or a power distribution substation, this module delivers the communication stability and system transparency that modern industrial sites demand.

Compatibility & Integration Notes

Connected Automation Data Flow

The A5E42740246 is designed to operate at the intersection of the field layer and the control layer, where data integrity and communication latency directly impact process outcomes. In a typical SINAMICS-based drive system, this module interfaces with the SINAMICS G120 Control Unit CU240E-2 PN or CU250S-2 PN via PROFINET, enabling the PLC — typically a SIMATIC S7-1500 CPU 1516-3 PN/DP — to issue speed references, torque commands, and diagnostic queries in real time.

On the field side, the A5E42740246 aggregates status signals from distributed ET 200SP remote I/O stations and SIRIUS 3RW soft starters, consolidating device health data into a unified communication stream. This data is then forwarded upstream to a SIMATIC HMI TP1200 Comfort Panel for operator visualization, and simultaneously to a SIMATIC WinCC SCADA server for historical trending, alarm management, and production reporting.

In multi-drive cabinet applications, the A5E42740246 works alongside SINAMICS S120 Power Modules PM240-2 and SINAMICS S120 Line Modules, ensuring that the communication backbone remains stable even under high-frequency switching conditions. The module’s support for the USS protocol also allows legacy MICROMASTER 440 drives to be integrated into modern PROFINET networks without requiring hardware replacement, protecting existing capital investments while extending system capability.

For edge connectivity and IIoT applications, the A5E42740246 can be paired with a SIMATIC IOT2050 industrial edge gateway, enabling OPC UA data publishing to cloud platforms such as MindSphere or third-party MES systems. This creates a complete data chain from motor shaft encoder to enterprise dashboard, with the A5E42740246 serving as the reliable protocol bridge at the heart of the architecture.

Power integrity for the communication module is maintained through a SITOP PSU100S 24V/10A power supply, which provides regulated DC power with diagnostic output signaling — ensuring that communication interruptions caused by power fluctuations are detected and reported before they escalate into process faults.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A plant may operate PROFIBUS DP networks installed in the 1990s alongside modern PROFINET infrastructure, with Modbus RTU devices scattered throughout the field — creating data silos that prevent unified monitoring and control.

The Siemens A5E42740246 addresses this challenge directly by providing multi-protocol support within a single compact module. Rather than deploying separate gateways for each protocol domain, engineers can use the A5E42740246 as a unified interface point, reducing cabinet footprint, simplifying wiring, and lowering the risk of communication mismatches between protocol boundaries.

Remote monitoring is another area where the A5E42740246 delivers measurable value. In geographically distributed installations — such as water pumping stations, wind farm substations, or oil pipeline compressor stations — the ability to perform remote diagnostics via PROFINET or Modbus TCP eliminates the need for on-site intervention for routine parameter checks and fault analysis. Maintenance teams can access drive status, fault history, and operating load data from a central control room or via VPN-connected laptops, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production line transparency is further enhanced through the module’s real-time data exchange capability. Cycle times, throughput rates, operating load per production unit, and equipment utilization rates can all be captured and forwarded to MES or ERP systems, enabling data-driven decisions at the management level. This level of visibility is increasingly required in industries subject to ISO 50001 maintenance planning standards or IEC 62443 cybersecurity compliance frameworks.

System expansion is straightforward with the A5E42740246. As production capacity grows, additional SINAMICS drive nodes can be added to the PROFINET ring without disrupting existing communication segments, thanks to the module’s support for media redundancy protocol (MRP). This ensures that network topology changes during commissioning or expansion do not result in communication loss across the existing installation.

Industrial Connectivity FAQ

Q1: Does the Siemens A5E42740246 support both PROFINET and PROFIBUS DP simultaneously?
A: Based on the SINAMICS communication module architecture, the A5E42740246 is designed to support PROFINET IO as its primary industrial Ethernet protocol, with PROFIBUS DP compatibility available depending on the specific firmware variant and system configuration. For installations requiring simultaneous PROFINET and PROFIBUS operation, Siemens recommends pairing this module with a dedicated PROFIBUS DP master interface such as the CP 342-5 or using a SIMATIC S7-1500 CPU with integrated DP port. Please contact our technical team to confirm the exact protocol configuration for your application.

Q2: What is the maximum cable length and network topology supported for PROFINET communication?
A: PROFINET IRT (Isochronous Real-Time) supports cable segments up to 100 meters per copper Ethernet link, with network topologies including line, star, and ring configurations. When deployed in a ring topology with MRP enabled, the A5E42740246 supports network recovery times of less than 200 ms, ensuring communication continuity during single cable or switch failures. For longer distances, fiber optic media converters compatible with the SCALANCE X series industrial switches can extend reach to several kilometers.

Q3: How is the warranty terms confirmed during quotation applied, and what does pre-shipment testing cover?
A: Every Siemens A5E42740246 unit supplied by ZYPLC is subject to functional verification testing prior to shipment, including communication interface continuity checks, power input validation, and firmware version confirmation. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are processed through our technical support team at plc.sales@zyplc.com, with replacement or repair turnaround coordinated to minimize impact on your production schedule.

Q4: Can the A5E42740246 be integrated into an existing SIMATIC WinCC or TIA Portal project without reconfiguration of the entire network?
A: Yes. The A5E42740246 is fully compatible with TIA Portal V15 and above, and can be added to an existing PROFINET project as a new IO device without requiring reconfiguration of other network nodes. In WinCC, the module’s diagnostic data can be mapped to existing tag structures using standard OPC DA or OPC UA connections. For STEP 7 Classic projects, the module can be integrated via the hardware catalog in SIMATIC Manager, provided the appropriate GSD or GSDML device description file is installed.
