Siemens A5E42881257 Power Unit for SINAMICS

Siemens A5E42881257 Power Unit for SINAMICS: Control System Coordination and Upstream-Downstream Synergy

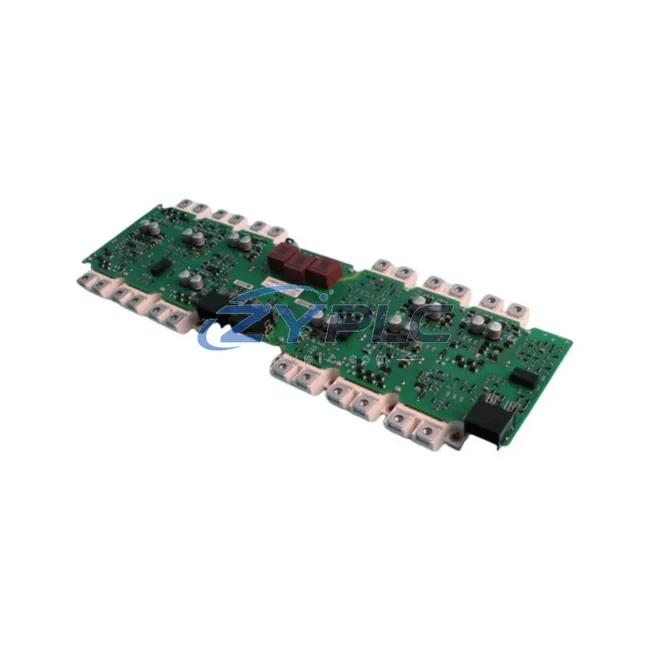

The Siemens A5E42881257 is a factory-engineered power unit designed to operate as a foundational energy-supply component within the SINAMICS drive architecture. Rather than functioning as a standalone module, this power unit is conceived as an integral node within a layered automation system — one that bridges the electrical supply infrastructure with the control, I/O, communication, and execution layers of a complete industrial drive solution. Its role in maintaining stable DC bus voltage, supporting regenerative energy flow, and enabling coordinated multi-axis operation makes it indispensable in high-availability production environments where system consistency and uptime are non-negotiable.

In modern industrial automation, the power supply layer is not merely a passive energy source — it is an active participant in system architecture. The A5E42881257 is engineered to interface seamlessly with SINAMICS S120 booksize and chassis format drive components, providing the regulated DC link voltage that downstream inverter modules such as the SINAMICS S120 Motor Module depend upon for precise torque and speed control. Its design supports shared DC bus topologies, allowing multiple Motor Modules to draw from a common energy pool, which reduces overall system energy consumption and enables kinetic energy recovery during deceleration phases.

From a control-layer perspective, the A5E42881257 operates under the supervision of the SINAMICS S120 Control Unit — typically a CU320-2 DP or CU320-2 PN — which manages drive sequencing, fault diagnostics, and communication with the supervisory PLC layer. In a typical SIMATIC S7-1500 or S7-300 based automation cell, the Control Unit receives setpoint commands via PROFIBUS-DP or PROFINET IO, translating high-level process instructions into real-time drive responses. The power unit’s stable output is what makes this closed-loop control chain reliable across varying load conditions.

At the I/O and signal layer, the A5E42881257 works in concert with SINAMICS S120 Sensor Modules (SMC or SME series) and Terminal Modules (TM15, TM31, TM41) that handle encoder feedback, digital I/O expansion, and analog signal conditioning. These modules ensure that the drive system receives accurate position and speed feedback, enabling the power unit to sustain the correct energy delivery profile under dynamic load changes. In multi-axis gantry systems, packaging lines, or winding machines, this signal integrity is critical to maintaining synchronization across all drive axes.

The communication layer further extends the A5E42881257’s system value. When integrated with a SINAMICS S120 Communication Board (CBE20 for PROFINET or CBC10 for CANopen), the drive system gains real-time fieldbus connectivity that allows the supervisory SCADA or DCS platform to monitor power unit status, energy consumption, and fault codes without interrupting production. This transparency supports predictive maintenance strategies and reduces unplanned downtime — a key requirement in process industries such as petrochemical refining, water treatment, and mineral processing.

At the human-machine interface layer, operators interact with the SINAMICS drive system through the SIMATIC HMI TP1200 Comfort or similar panel, which displays real-time drive parameters, alarm histories, and energy dashboards. The A5E42881257’s operational data — including DC bus voltage, input current, and thermal status — is surfaced through these interfaces, giving maintenance engineers the visibility they need to make informed decisions during commissioning and routine inspections.

In the execution layer, the power unit’s output feeds directly into servo and vector-controlled Motor Modules driving asynchronous or synchronous motors across conveyor systems, extruders, compressors, hoists, and centrifuges. Its ability to sustain consistent DC link voltage under transient load conditions ensures that the downstream actuators respond predictably to control commands, which is essential in applications where positional accuracy or process repeatability is a quality-critical parameter.

For system integrators and OEM machine builders, the A5E42881257 also supports redundant power architectures. In high-availability configurations, a parallel Active Line Module or Basic Line Module can be configured as a standby unit, with automatic switchover logic managed at the Control Unit level. This redundancy design is particularly valued in continuous-process industries — such as pulp and paper, steel rolling mills, and offshore platform utilities — where a drive system shutdown carries significant production and safety consequences.

From an engineering and commissioning standpoint, the A5E42881257 is fully compatible with the STARTER commissioning tool and TIA Portal Drive Control Chart (DCC) environment, enabling function block-based drive programming and parameter management. Its firmware is updatable via the SINAMICS S120 infrastructure, ensuring long-term compatibility with evolving control platform versions without requiring hardware replacement.

ZYPLC maintains availability subject to RFQ confirmation of the Siemens A5E42881257 with full warranty terms confirmed during quotation coverage, supporting industrial procurement teams that require traceable, tested components for both new system builds and maintenance replacement scenarios. Our sourcing capability extends across the complete SINAMICS S120 ecosystem, ensuring that your architecture remains consistent from power supply to final drive output.

Product Specification Table

System Compatibility Notes

The A5E42881257 achieves its full performance potential when deployed within a coordinated SINAMICS S120 system. A typical architecture begins with the SINAMICS S120 Active Line Module (or this power unit) supplying regulated DC voltage to a shared bus, from which multiple SINAMICS S120 Motor Modules (single-axis or double-axis) draw power to drive servo or induction motors. The CU320-2 PN Control Unit orchestrates all drive axes, communicating upstream with a SIMATIC S7-1500 PLC via PROFINET IO for setpoint delivery and status reporting.

Signal integrity is maintained through SINAMICS SMC30 Sensor Modules that process encoder and resolver feedback from the motor shaft, while TM31 Terminal Modules provide additional digital and analog I/O for process interlocking and safety relay integration. The SINAMICS S120 Braking Module handles regenerative energy dissipation in applications with frequent deceleration cycles, protecting the DC bus from overvoltage conditions. At the cabinet level, SITOP PSU8600 power supplies provide 24 VDC auxiliary power for control electronics, ensuring that the control layer remains operational even during main power transients. The entire system is monitored and parameterized through the SIMATIC HMI TP900 or TP1200 Comfort Panel, giving operators real-time visibility into drive health, energy consumption, and fault diagnostics.

Industrial Application Notes

The Siemens A5E42881257 power unit finds application across a broad spectrum of industrial sectors where multi-axis drive coordination and energy efficiency are primary design criteria. In automotive manufacturing, it powers servo-driven transfer lines and robotic welding cells where precise synchronization between multiple axes determines weld quality and cycle time. In petrochemical and refinery applications, it drives compressor and pump systems that require variable-speed control for maintenance planning and process stability under fluctuating demand conditions.

In water and wastewater treatment facilities, the A5E42881257 supports variable-frequency drive systems controlling aeration blowers, centrifugal pumps, and sludge dewatering equipment, where operational stability and soft-start capability reduce mechanical stress and extend equipment life. Mining and mineral processing operations deploy this power unit in conveyor drive systems, ball mill drives, and flotation cell agitators, where the shared DC bus architecture allows energy recovered from loaded conveyors to be reused by ascending belt drives — a significant operational cost reduction. In metal rolling and steel processing, the power unit’s ability to sustain stable DC bus voltage under heavy regenerative loads makes it suitable for reversing mill drives and coiler/uncoiler systems. Packaging and food processing lines benefit from its multi-axis coordination capability, enabling synchronized motion across filling, sealing, labeling, and palletizing stations within a single SINAMICS S120 drive platform.

Product Compatibility FAQ

Q1: Is the A5E42881257 compatible with both PROFIBUS and PROFINET based SINAMICS S120 architectures?
Yes. The A5E42881257 power unit is designed for use within the SINAMICS S120 platform, which supports both PROFIBUS-DP (via CU320-2 DP Control Unit) and PROFINET IO (via CU320-2 PN Control Unit or CBE20 Communication Board). The power unit itself operates at the DC bus level and is protocol-agnostic — fieldbus selection is determined by the Control Unit and communication board configuration. This makes the A5E42881257 suitable for both legacy PROFIBUS installations and modern PROFINET-based architectures without hardware modification.

Q2: Can the A5E42881257 be used in a redundant power supply configuration, and what are the architecture requirements?
Yes, redundant power architectures are supported within the SINAMICS S120 platform. A secondary Active Line Module or Basic Line Module can be configured in parallel on the shared DC bus, with switchover logic managed at the CU320-2 Control Unit level using SINAMICS Safety Integrated or external PLC-based monitoring. For critical applications in continuous-process industries, this redundancy design ensures that a single power unit fault does not result in a full system shutdown. ZYPLC can supply matched pairs of power units with verified compatibility for redundant architecture builds, all covered under our warranty terms confirmed during quotation.
