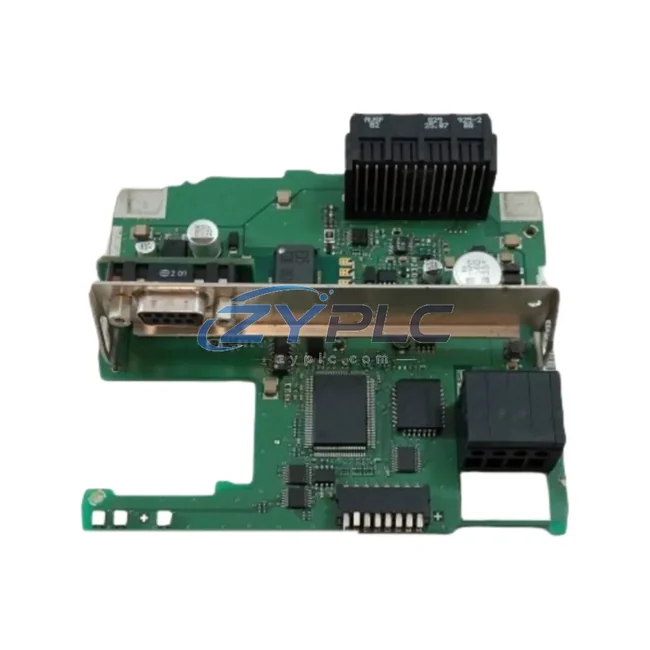

Siemens A5F00105490 DP Interface for ET 200M

Siemens A5F00105490 DP Interface for ET 200M: Compatibility and Replacement Notes

The Siemens A5F00105490 is a PROFIBUS DP interface module purpose-built for the SIMATIC ET 200M distributed I/O station, serving as the critical communication bridge between the field-level I/O layer and the central control layer in multi-tier industrial automation architectures. Rather than functioning as a standalone component, the A5F00105490 is designed to operate within a tightly coordinated system hierarchy — connecting upstream CPU controllers, downstream signal modules, and lateral network infrastructure into a unified, deterministic control fabric.

In modern layered automation systems, the DP interface module occupies a pivotal position. It receives cyclic process data from the PROFIBUS DP master — typically a Siemens S7-300 CPU such as the CPU 315-2 DP or CPU 317-2 DP — and distributes that data across the ET 200M backplane to the installed signal modules. This architecture allows engineers to position I/O stations close to the process, reducing field wiring costs while maintaining high-speed, deterministic communication back to the control room. The A5F00105490 supports up to 12 signal modules per station, enabling dense I/O configurations without compromising scan cycle integrity.

Product Specification Table

System Compatibility Notes

The A5F00105490 achieves its full potential when integrated within a complete SIMATIC control architecture. At the control layer, a Siemens S7-300 or S7-400 CPU — such as the CPU 315-2 DP, CPU 317-2 DP, or CPU 414-3 DP/PN — acts as the PROFIBUS DP master, issuing cyclic I/O commands and receiving process feedback across the DP network. The A5F00105490 serves as the DP slave interface at the ET 200M station, translating network telegrams into backplane signals that drive the installed signal modules.

On the power layer, a Siemens PS 307 power supply (5 A or 10 A variant) provides the regulated 24 V DC required by the IM and the downstream signal modules. Proper power segmentation — using load group connectors between module groups — ensures that a single power fault does not cascade across the entire I/O station, a critical design consideration in high-availability process environments.

The I/O layer within the ET 200M station typically includes a combination of digital input modules (SM 321), digital output modules (SM 322), analog input modules (SM 331), and analog output modules (SM 332). These modules connect directly to field instruments, actuators, and sensors, with the A5F00105490 managing all data exchange between the backplane bus and the PROFIBUS DP master. For applications requiring high-speed counter inputs or positioning tasks, function modules such as the FM 350-1 or FM 351 can be integrated into the same station without additional interface hardware.

At the network layer, PROFIBUS DP connectors with integrated termination resistors — such as the Siemens 6ES7 972-0BA52-0XA0 bus connector — ensure signal integrity across long cable runs. In larger installations where PROFIBUS segments must be extended or bridged to PROFINET, a Siemens IE/PB Link PN IO or DP/PA coupler can be incorporated into the network topology without disrupting the ET 200M station’s operation.

For human-machine interface integration, a Siemens SIMATIC HMI panel — such as the TP700 Comfort or KTP900 Basic — connected to the S7-300 CPU via MPI or PROFINET provides operators with real-time visibility into the process values collected through the A5F00105490 and its associated signal modules. This end-to-end data path, from field sensor through IM to CPU to HMI, forms the backbone of a well-engineered SIMATIC control system.

In redundancy-critical applications, the A5F00105490 can be deployed in Y-Link configurations alongside a redundant IM 153-2 module, enabling hot-standby operation where a secondary DP master can assume control without process interruption. This architecture is particularly valuable in continuous process industries where unplanned downtime carries significant operational and safety consequences.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive and discrete manufacturing environments, the A5F00105490 enables distributed I/O stations to be mounted directly at machine cells, reducing cabinet footprint and field wiring complexity. The PROFIBUS DP network connects multiple ET 200M stations to a central S7-300 or S7-400 controller, supporting coordinated motion sequences, conveyor control, and quality inspection systems with deterministic cycle times.

Power Generation and Electrical Substations: In power plant auxiliary systems and substation automation, the ET 200M with A5F00105490 provides reliable digital and analog I/O for monitoring transformer temperatures, breaker positions, and protection relay status. The galvanic isolation between the PROFIBUS interface and the backplane bus is essential in high-voltage environments where ground potential differences can introduce noise or damage to control electronics.

Petrochemical and Refinery Process Control: In ATEX-classified zones, the ET 200M station equipped with the A5F00105490 and Ex-rated signal modules supports intrinsically safe field device connections. The modular architecture allows engineers to replace individual signal modules during maintenance windows without disturbing the DP communication or adjacent I/O channels, minimizing process interruption in continuous refinery operations.

Water and Wastewater Treatment: Municipal water treatment facilities rely on distributed I/O architectures to monitor pump stations, valve positions, flow meters, and chemical dosing systems spread across large geographic areas. The A5F00105490 enables ET 200M stations to be deployed at remote pump houses, with PROFIBUS DP providing reliable communication back to the central SCADA and S7-400 control system.

Mining and Metallurgy: In ore processing and smelting operations, the rugged operating temperature range and DIN rail mounting of the ET 200M with A5F00105490 make it suitable for deployment in harsh industrial enclosures. The module supports the high I/O density required for conveyor belt monitoring, crusher control, and furnace temperature regulation within a single, maintainable platform.
