Siemens C98043-A1601-L4 Industrial Network Interface for SIMOREG Systems

Siemens C98043-A1601-L4 Industrial Network Interface for SIMOREG DC Master Systems

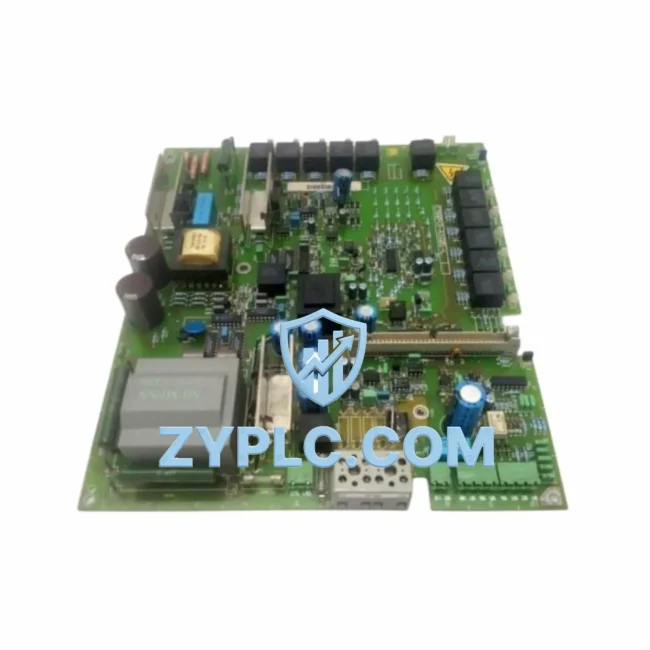

The Siemens C98043-A1601-L4 is a high-performance DC drive power module engineered for the SIMOREG DC Master series — one of Siemens’ most trusted platforms for industrial DC motor control. Designed to serve as a critical node in the industrial data chain, this module bridges field-level drive hardware with upper-level control and monitoring systems, enabling seamless data flow across the entire smart factory architecture. Whether deployed in heavy manufacturing, paper mills, metal processing, or crane and hoist applications, the C98043-A1601-L4 delivers the communication reliability and real-time responsiveness that modern industrial networks demand.

In today’s connected factory environment, a DC drive power module is far more than a power conversion component — it is an active participant in the plant’s data ecosystem. The C98043-A1601-L4 integrates directly into PROFIBUS-DP and USS protocol networks, allowing it to exchange process variables, status signals, fault codes, and control commands with upstream PLC controllers, SCADA platforms, and HMI terminals in real time. This positions the module as a foundational element in any drive-level communication architecture built on the SIMOREG DC Master platform.

Network Communication Table

Connected Automation Data Flow

The C98043-A1601-L4 operates at the heart of a layered industrial communication architecture. At the field level, motor feedback signals — including speed, torque, armature current, and thermal status — are captured by the SIMOREG DC Master drive and made available over the PROFIBUS-DP network. A Siemens S7-300 or S7-400 PLC acting as the PROFIBUS master polls the drive cyclically, retrieving real-time process values and issuing setpoint commands with deterministic timing.

For plants running mixed communication environments, a PROFIBUS-to-Modbus gateway or a Siemens CP 342-5 communications processor can bridge the C98043-A1601-L4’s PROFIBUS data stream into Modbus TCP or Industrial Ethernet segments, enabling integration with third-party SCADA systems and historian platforms. On the HMI side, a Siemens TP700 Comfort Panel or equivalent operator terminal connects via the PLC to display live drive parameters, alarm states, and trend data — giving operators full visibility into motor performance without leaving the control room.

Remote I/O expansion modules, such as the Siemens ET 200S distributed I/O system, can be deployed alongside the SIMOREG drive to collect additional field signals — limit switches, temperature sensors, encoder feedback — and route them through the same PROFIBUS backbone. This unified data path reduces wiring complexity and ensures that all field data arrives at the SCADA layer with consistent timestamps and protocol framing.

At the edge, an industrial edge gateway running Siemens MindSphere connectors or equivalent IIoT middleware can subscribe to the PROFIBUS data stream, apply local analytics, and forward aggregated KPIs to cloud-based MES or ERP platforms. This architecture supports predictive maintenance workflows, where anomalies in the C98043-A1601-L4’s current waveform or thermal profile trigger automated work orders before a fault occurs. Variable frequency drives and soft starters on adjacent motor circuits can similarly be monitored through the same network backbone, providing a holistic view of the entire drive population on the production floor.

Power quality and supply stability are maintained by Siemens SITOP industrial power supplies feeding the control electronics, while surge protection devices on the PROFIBUS cable shield the communication layer from electrical noise generated by high-current switching in the DC drive output stage. The result is a robust, noise-immune data chain that sustains reliable communication even in electrically demanding environments such as steel rolling mills, mining conveyors, and large-scale printing lines.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — drive systems that operate in silos, unable to share process data with the plant’s control and monitoring infrastructure. The C98043-A1601-L4 directly addresses this problem by providing native PROFIBUS-DP and USS protocol connectivity, eliminating the need for proprietary point-to-point wiring between the drive and the PLC.

In plants where multiple drive generations coexist, protocol inconsistency is a common barrier to production transparency. The SIMOREG DC Master platform, with the C98043-A1601-L4 at its core, supports standardized parameter access via the PKW (Parameter ID Value) channel over PROFIBUS, allowing SCADA engineers to read and write drive parameters remotely without interrupting production. This capability is essential for remote commissioning, parameter backup, and firmware-level diagnostics — tasks that previously required a technician to be physically present at the drive cabinet.

For facilities pursuing production line transparency, the C98043-A1601-L4 enables continuous streaming of process variables — motor speed, DC bus voltage, output current, and fault codes — to the SCADA historian. This data feeds real-time dashboards and long-term trend analysis, supporting OEE (Overall Equipment Effectiveness) calculations and energy consumption reporting. Alarm management is also enhanced: fault events generated by the SIMOREG drive are immediately propagated over PROFIBUS to the PLC and then to the HMI alarm server, reducing mean time to response (MTTR) and minimizing unplanned downtime.

System expansion is straightforward within the SIMOREG DC Master ecosystem. Additional drive axes can be added to the PROFIBUS segment without architectural changes, and the network’s deterministic cycle time ensures that all drives receive synchronized setpoints — critical for multi-motor coordinated applications such as winding lines, draw benches, and paper machine sections. The C98043-A1601-L4 thus serves not only as a power conversion module but as a scalable communication node that grows with the plant’s automation requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens C98043-A1601-L4 support, and is it compatible with modern SCADA systems?
The C98043-A1601-L4 supports PROFIBUS-DP and USS protocol natively within the SIMOREG DC Master platform. It is fully compatible with SCADA systems that communicate via PROFIBUS masters, including Siemens WinCC, Wonderware, and iFIX. For SCADA platforms using Modbus TCP or OPC-UA, a protocol gateway such as the Siemens CP 342-5 or a third-party PROFIBUS-to-Ethernet converter can bridge the communication gap without requiring hardware changes to the drive module.

Q2: How does the C98043-A1601-L4 handle communication latency in time-critical drive control applications?
PROFIBUS-DP operates with deterministic cycle times typically in the range of 1–10 ms depending on network configuration and the number of slaves on the segment. The C98043-A1601-L4, as part of the SIMOREG DC Master, responds to cyclic PROFIBUS telegrams within the drive’s internal sampling period, ensuring that speed and torque setpoints are updated with minimal jitter. For applications requiring tighter synchronization, the SIMOREG platform supports equidistant PROFIBUS mode, which aligns the drive’s control cycle to the PROFIBUS bus cycle for deterministic multi-axis coordination.

Q3: Can the C98043-A1601-L4 be integrated into an existing PROFIBUS network alongside other Siemens and third-party devices?
Yes. The C98043-A1601-L4 operates as a standard PROFIBUS-DP slave and can coexist on the same PROFIBUS segment with other Siemens devices — such as S7-300/400 PLCs, ET 200S remote I/O, and Sinamics drives — as well as third-party PROFIBUS-compatible devices from other manufacturers. Each device is assigned a unique PROFIBUS node address, and the GSD (General Station Description) file for the SIMOREG DC Master is available for import into any PROFIBUS configuration tool, including Siemens STEP 7 and TIA Portal.

Q4: What quality assurance and warranty coverage is provided with the C98043-A1601-L4?
Every C98043-A1601-L4 unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication interface checks, and parameter read/write validation. The module is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation guidance, PROFIBUS configuration assistance, and fault diagnosis. In-stock units are available for immediate dispatch with global shipping to minimize lead times for urgent maintenance requirements.
