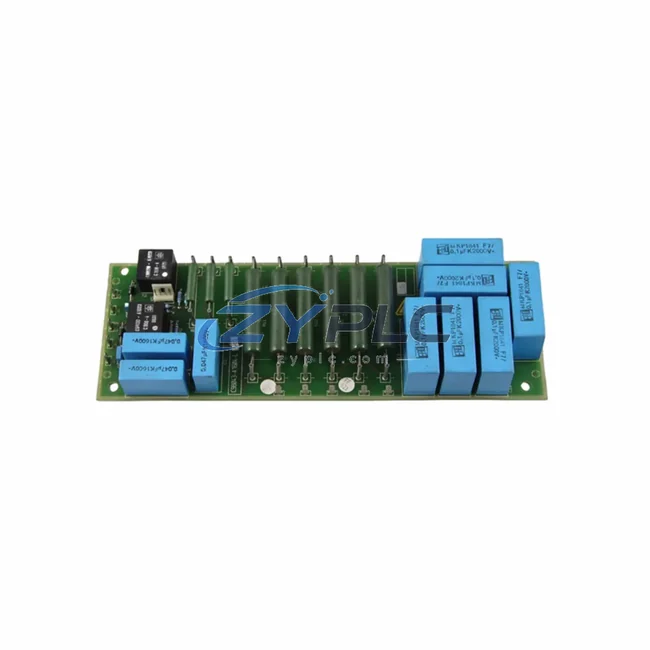

Siemens C98043-A1604-L3-3 PC Board for SIMOREG Automation

Siemens C98043-A1604-L3-3 PC Board for SIMOREG Automation

The Siemens C98043-A1604-L3-3 is a precision-engineered PC board module designed for SIMOREG DC Master drive systems, delivering reliable motor control, reduced unplanned downtime, and measurable improvements in production line efficiency. As a core control board within the SIMOREG 6RA70 converter platform, this module governs the firing pulse generation and closed-loop regulation that directly determines how efficiently a DC drive converts electrical energy into mechanical output. In facilities where DC motor systems run continuously — steel rolling mills, paper machines, extruders, winding lines, and crane drives — the performance of this board has a direct impact on operating-hour consumption per production cycle.

At ZYPLC, every C98043-A1604-L3-3 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a warranty terms confirmed during quotation. Stock is maintained for rapid dispatch, minimizing unplanned downtime in time-sensitive production environments.

Product Specification Table

System Compatibility and Application

The C98043-A1604-L3-3 does not operate in isolation — it is the intelligence layer within a broader maintenance-focused drive architecture. In a typical SIMOREG-based production system, this board interfaces directly with the 6RA7085 or 6RA7093 DC converter chassis, receiving speed and torque setpoints from upstream controllers and translating them into precisely timed thyristor firing pulses. The accuracy of this firing sequence determines the power factor of the DC drive circuit and, by extension, the real energy drawn from the supply network.

On the controller side, the C98043-A1604-L3-3 typically receives its setpoints from a SIMATIC S7-1500 PLC or a SIMATIC S7-300 system via PROFIBUS-DP, using a CBP2 communications board mounted in the SIMOREG drive. This closed-loop architecture allows the PLC to continuously adjust motor speed based on process feedback — whether that is web tension from a load cell, line speed from an encoder, or torque demand from a winding algorithm. The result is that the motor draws only the energy the process actually requires, rather than running at fixed speed regardless of load.

For condition monitoring, the system is often paired with SENTRON PAC3200 or PAC4200 power monitoring devices installed at the MCC (motor control center) level. These meters capture real-time kW, kVAR, power factor, and harmonic distortion data, giving energy managers the visibility to identify inefficiencies in the DC drive circuit that the C98043-A1604-L3-3 is designed to eliminate. When firing angle control is degraded — due to a faulty board — power factor drops and reactive operating load rises sharply. Replacing the board with a verified C98043-A1604-L3-3 restores optimal firing timing and brings power factor back within design specification.

On the I/O side, 6ES7 321 and 6ES7 322 series digital I/O modules from the SIMATIC ET 200 family are commonly used to interface limit switches, contactors, and safety interlocks with the drive control logic. Analog signals — such as tachometer feedback or current reference signals — are handled by 6ES7 331 analog input modules, which feed real-time process values back to the S7 controller for closed-loop correction. The SITOP PSU100S 24V DC power supply provides stable auxiliary power to the control electronics, ensuring that the C98043-A1604-L3-3 and its associated signal circuits operate without voltage fluctuation-induced errors.

For operator interaction, a SIMATIC KTP700 Basic or KTP900 Basic HMI panel is typically deployed at the drive station, displaying real-time motor speed, current draw, drive status, and fault codes. When the C98043-A1604-L3-3 detects a firing fault or regulation error, the fault code is surfaced on the HMI immediately, allowing operators to respond before the fault escalates into a production stoppage. In networked facilities, this data is also transmitted via PROFINET to the plant SCADA system for centralized energy and performance monitoring.

Maintenance and Replacement Notes

In continuous process industries, the cost of running DC drive systems inefficiently compounds over time. A SIMOREG drive operating with a degraded control board may exhibit speed instability, increased motor heating, elevated current draw at partial load, and poor dynamic response to load changes. Each of these symptoms translates directly into wasted energy, accelerated motor wear, and reduced throughput.

The C98043-A1604-L3-3 addresses these issues at the source. By restoring precise firing pulse generation, the board eliminates the thyristor conduction asymmetry that causes current ripple and motor heating. In winding applications, this means consistent tension control without the speed hunting that wastes energy through repeated acceleration and deceleration cycles. In extruder drives, it means stable screw speed under varying melt viscosity, reducing the overcurrent events that trigger protective derating and slow the line.

Predictive maintenance programs benefit significantly from a correctly functioning C98043-A1604-L3-3. When the board is operating within specification, the drive’s internal diagnostics — accessible via the SIMOREG parameter set (P-words and r-words) — provide accurate data on motor current, speed deviation, and thermal load. This data, when trended over time through the S7-1500 or a dedicated condition monitoring system, enables maintenance teams to schedule interventions based on actual equipment condition rather than fixed time intervals. The result is fewer unplanned stoppages, lower spare parts consumption, and higher overall equipment effectiveness (OEE).

ZYPLC maintains buffer stock of the C98043-A1604-L3-3 specifically to support emergency replacement scenarios. When a drive board fails unexpectedly, every hour of downtime carries a measurable production cost. Our pre-tested, warranty-backed units are prepared for same-day or next-day dispatch, ensuring that the gap between fault detection and drive restoration is as short as possible. Each unit undergoes functional verification before shipment, confirming that firing pulse output, regulation loop response, and communication interface behavior all meet OEM specification.

Product Sourcing FAQ

Q1: How does replacing the C98043-A1604-L3-3 reduce operating load in a SIMOREG drive system?
A degraded or faulty firing pulse board causes thyristor conduction timing errors, which increase current ripple, reduce power factor, and force the motor to draw more current than the load requires. Installing a verified C98043-A1604-L3-3 restores precise firing angle control, bringing power factor back to design levels and reducing reactive energy losses. In high-utilization applications, this can translate to measurable reductions in monthly energy billing at the drive circuit level.

Q2: Is the C98043-A1604-L3-3 compatible with all SIMOREG 6RA70 variants?
The C98043-A1604-L3-3 is designed for specific variants within the SIMOREG 6RA70 series. Compatibility depends on the drive’s rated current, voltage class, and firmware version. Before ordering, confirm your drive’s full type designation (e.g., 6RA7085-6DS22-0 or 6RA7093-4DS22-0) and cross-reference with the board’s application range. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement and testing procedure for this board?
Replacement should be performed by a qualified drive technician with the drive de-energized and locked out. After installation, the drive should be powered up in a controlled sequence, with parameter settings verified against the saved drive backup (P971 backup recommended). Key parameters including speed controller gains (P235, P236), current limits (P076), and encoder feedback scaling should be checked before returning the drive to production. ZYPLC’s pre-shipment testing confirms that the board’s hardware is functional; site commissioning verifies system-level integration.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover?
The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. If the C98043-A1604-L3-3 fails to perform its specified control functions within the warranty period, ZYPLC will provide a replacement unit. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated environmental conditions. Warranty claims are processed promptly to minimize impact on production continuity.
