Siemens C98043-A7001-L1 Industrial Network Interface for SIMOREG Systems

Siemens C98043-A7001-L1 CUD1: Industrial Data Link for SIMOREG DC Master Drive Systems

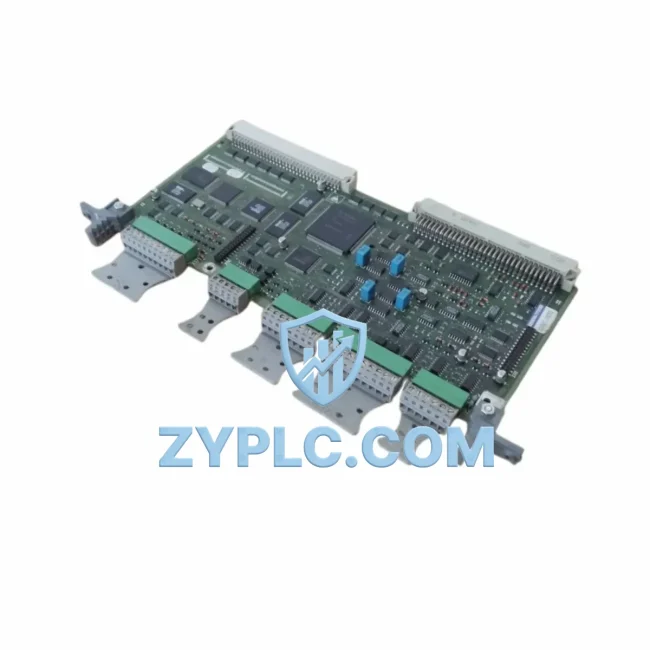

The Siemens C98043-A7001-L1 is the Central Unit Drive (CUD1) control board at the heart of the SIMOREG DC Master series of fully digital DC drive converters. Engineered for demanding industrial environments, this control unit serves as the primary intelligence layer that bridges field-level devices — including sensors, encoders, and actuators — with higher-level automation systems such as PLCs, SCADA platforms, and HMI terminals. In smart factory architectures where real-time data integrity and deterministic communication are non-negotiable, the C98043-A7001-L1 delivers the processing power and protocol flexibility required to sustain continuous, high-performance DC motor control across multi-axis production lines.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory deployment, the C98043-A7001-L1 CUD1 sits at the convergence point of multiple data streams. Signal acquisition begins at the field level, where encoders and tachogenerators feed real-time speed and position data directly into the CUD1’s high-resolution input channels. These signals are processed onboard and transmitted upstream via PROFIBUS-DP to a Siemens SIMATIC S7-300 or S7-400 PLC, which acts as the central coordinator for multi-drive sequences on rolling mills, winding machines, or extruder lines.

For installations requiring distributed I/O expansion, the CUD1 communicates seamlessly with Siemens ET 200M remote I/O stations, enabling decentralized signal collection without compromising cycle time. When the drive system is integrated into a broader WinCC SCADA or SIMATIC WinCC Flexible HMI environment, the CUD1 exposes all critical drive parameters — including armature current, field current, speed setpoint, and actual speed — as live process variables accessible to operators in real time.

In multi-drive configurations, the C98043-A7001-L1 supports peer-to-peer communication with adjacent SIMOREG DC Master 6RA70 series converters via the USS protocol over RS-485, enabling master-follower torque sharing and speed synchronization without routing every signal through the PLC. This architecture reduces bus load and latency, which is critical in tension-controlled winding applications where millisecond-level response is required.

For facilities deploying edge computing, the CUD1’s PROFIBUS interface connects to Siemens SCALANCE X industrial Ethernet switches and SIMATIC ET 200SP gateways, allowing drive data to be forwarded to cloud-based MES or ERP platforms for production analytics, OEE calculation, and predictive maintenance scheduling. Variable frequency drives such as the Siemens SINAMICS G120 operating on adjacent AC axes can share the same PROFIBUS segment, enabling unified drive management from a single engineering tool — STARTER or SINAMICS Startdrive within the TIA Portal environment.

Power supply stability for the CUD1 control electronics is maintained by dedicated Siemens SITOP PSU 24 VDC power supply units, ensuring that control logic remains operational even during transient load events on the main power bus. This separation of control and power circuits is a fundamental requirement in high-availability drive systems where unplanned downtime carries significant production cost.

Solving Data Isolation in Industrial Sites

Legacy DC drive installations frequently suffer from protocol fragmentation — older drives communicating over proprietary serial links that cannot be natively integrated into modern PROFIBUS or Industrial Ethernet networks. The Siemens C98043-A7001-L1 CUD1 addresses this directly by providing a standardized PROFIBUS-DP interface that allows the SIMOREG DC Master to participate as a fully addressable node on the plant-wide automation network, eliminating the data silos that arise when drives operate in isolation from the PLC and SCADA layers.

Remote monitoring and diagnostics are enabled through the CUD1’s fault buffer and parameter logging capabilities. Maintenance engineers can interrogate the drive remotely via the PROFIBUS master — reading fault codes, resetting alarms, and adjusting control parameters without physical access to the drive cabinet. This capability is particularly valuable in hazardous or hard-to-reach installation environments such as offshore platforms, underground mining conveyors, or high-bay warehouse cranes.

Production line transparency is achieved by mapping all critical drive variables to the SCADA historian, enabling trend analysis of motor load, thermal state, and speed deviation over time. Early detection of bearing wear, brush degradation, or cooling fan failure becomes possible through statistical process control applied to these continuous data streams, shifting maintenance from reactive to predictive and reducing unplanned downtime by a measurable margin.

System scalability is inherent in the PROFIBUS-based architecture supported by the C98043-A7001-L1. Additional SIMOREG DC Master drives can be added to the network segment without architectural redesign, and the CUD1’s parameter set can be cloned across multiple units using the SIMOREG drive’s parameter upload/download function, dramatically reducing commissioning time for multi-drive expansions.

Every C98043-A7001-L1 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, confirming communication interface integrity, I/O channel response, and control logic execution. Units are dispatched with full traceability documentation and are covered by a 12-month warranty, with in-stock availability supporting short lead times for urgent maintenance and retrofit projects worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens C98043-A7001-L1 CUD1 support, and is it compatible with SIMATIC S7 PLC systems?
The C98043-A7001-L1 CUD1 supports PROFIBUS-DP as its primary fieldbus protocol, along with the USS protocol over RS-485 for drive-to-drive and drive-to-PLC communication. It is fully compatible with Siemens SIMATIC S7-300, S7-400, and S7-1500 PLC systems acting as PROFIBUS-DP masters, enabling seamless integration into existing Siemens automation architectures without additional protocol converters.

Q2: What is the typical communication latency, and is the CUD1 suitable for real-time closed-loop control applications?
The CUD1 operates with deterministic PROFIBUS-DP cycle times typically in the range of 1–10 ms depending on network configuration and number of nodes, making it suitable for real-time closed-loop speed and torque control applications. The onboard current and speed controllers execute at high sampling rates independent of the fieldbus cycle, ensuring that drive dynamics are not constrained by network latency.

Q3: Can the C98043-A7001-L1 be integrated into a WinCC SCADA system for remote monitoring and alarm management?
Yes. Via the PROFIBUS-DP master PLC, all drive parameters and fault codes accessible through the CUD1 can be mapped to WinCC SCADA tags for real-time visualization, historical trending, and alarm management. This enables operators to monitor armature current, motor speed, field excitation, and drive fault status from a centralized control room HMI without requiring direct serial connection to the drive.

Q4: Does ZYPLC provide tested stock with warranty coverage for the Siemens C98043-A7001-L1?
Yes. All C98043-A7001-L1 units are functionally tested before shipment to verify communication interface operation, I/O channel integrity, and control board functionality. Each unit is supplied with a 12-month warranty and full shipment documentation. ZYPLC maintains in-stock inventory to support urgent replacement and retrofit requirements with fast global dispatch via DHL and FedEx.
