Siemens C98043-A7001-L2-4 Control Board for CUD

Siemens C98043-A7001-L2-4 Control Board for CUD: Compatibility and Replacement Notes

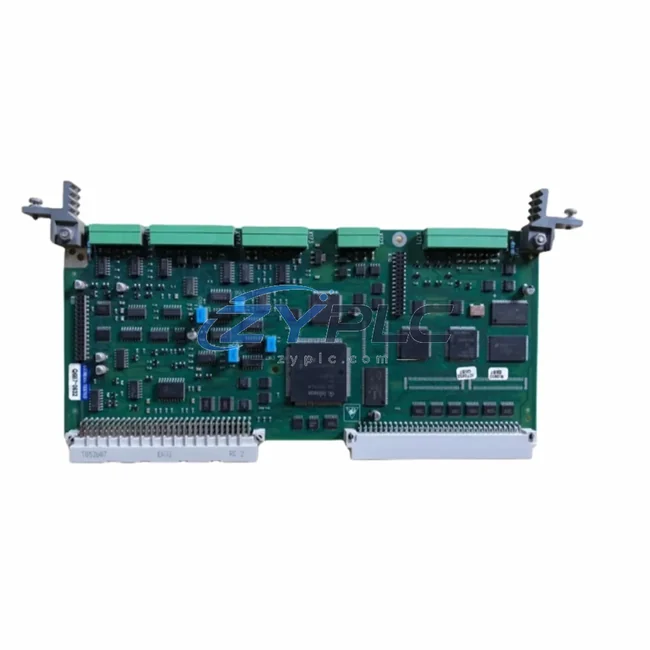

The Siemens C98043-A7001-L2-4 is a dedicated control board engineered for the SIMOREG DC MASTER CUD (Control Unit Drive) platform, serving as the central processing and signal coordination layer within Siemens DC drive systems. In modern industrial automation, a drive control board is never an isolated component — it is the architectural nucleus that connects the control layer, I/O layer, power layer, communication network, and execution layer into a coherent, high-performance system. The C98043-A7001-L2-4 fulfills this role with precision, enabling engineers to build scalable, redundant, and maintainable drive architectures across demanding industrial environments.

Within a layered automation hierarchy, this board occupies the drive-level control tier, receiving setpoint commands from higher-level PLCs or DCS controllers — such as the Siemens SIMATIC S7-400 or S7-300 series — via analog reference signals or fieldbus interfaces. It processes armature current feedback, speed encoder signals, and field excitation data in real time, executing closed-loop control algorithms that maintain precise motor speed and torque across the full operating range. The board’s architecture is designed to interface seamlessly with upstream supervisory systems while delivering deterministic control outputs to downstream power conversion stages.

The C98043-A7001-L2-4 is fully compatible with the SIMOREG DC MASTER 6RA70 series drive platform, where it functions as the primary intelligence layer governing the thyristor firing sequence, current regulation, and speed control loops. Engineers integrating this board into a 6RA70 chassis benefit from its pre-calibrated parameter structure, which reduces commissioning time and ensures consistent behavior across multi-drive installations. When paired with the C98043-A7002 power board and the C98043-A7003 field supply board, the complete drive assembly delivers a fully coordinated DC motor control solution suitable for continuous industrial duty.

Product Specification Table

System Compatibility Notes

A robust DC drive system built around the C98043-A7001-L2-4 requires careful coordination across multiple hardware layers. At the power conversion level, the board interfaces directly with the thyristor firing circuits on the C98043-A7002 power board, translating digital control commands into precise gate pulses that regulate armature voltage and current. The field supply regulation is managed in conjunction with the C98043-A7003 field supply board, which controls the DC motor’s excitation winding to enable field weakening and extended speed range operation.

For network-level integration, the CBP2 PROFIBUS communication board can be inserted into the CUD expansion slot, enabling the C98043-A7001-L2-4 to participate in a PROFIBUS-DP network alongside Siemens SIMATIC S7 PLCs, ET 200 distributed I/O stations, and SIMATIC HMI panels such as the TP700 Comfort or KTP900 Basic. This network architecture allows operators to monitor drive parameters, adjust speed setpoints, and read fault diagnostics from a centralized SCADA or DCS environment without interrupting production.

In multi-drive installations — common in steel rolling mills, paper machines, and winding lines — multiple 6RA70 drives equipped with C98043-A7001-L2-4 boards can be synchronized via the SIMOREG peer-to-peer link or through master-follower configurations managed by the upstream PLC. This synchronization capability is critical for maintaining consistent tension, speed ratios, and torque distribution across mechanically coupled drive sections. The board’s parameter memory retains all tuning data, ensuring that drive behavior is reproducible after maintenance interventions or board replacements.

At the I/O layer, the CUD board provides dedicated terminals for speed encoder feedback (incremental encoder, HTL/TTL), analog tachometer input, and multiple digital inputs for run/stop commands, fault acknowledgment, and external interlocks. These signals integrate directly with the plant’s safety relay circuits and emergency stop chains, ensuring that the drive responds correctly to both normal operational commands and abnormal shutdown conditions. Terminal modules such as the Siemens 6ES7 392 series can be used to extend and organize field wiring within the control cabinet.

Industrial Application Notes

The C98043-A7001-L2-4 finds application across a wide spectrum of process and discrete manufacturing industries where DC motor drives remain the preferred solution for high-torque, wide-speed-range applications.

In steel and metals processing, this board is deployed in rolling mill main drives, coiler and uncoiler drives, and leveler line drives, where precise speed and tension control directly affects product quality. The board’s fast current control loop — with response times in the millisecond range — ensures that speed deviations caused by load changes are corrected before they propagate to adjacent drive sections.

In paper and pulp manufacturing, multi-section paper machines rely on coordinated DC drives to maintain consistent web tension from the wire section through the press, dryer, and calender sections to the reel. The C98043-A7001-L2-4’s ability to operate in master-follower synchronization makes it well-suited for these demanding continuous-process applications.

In petrochemical and refinery environments, DC drives controlled by CUD boards are used for extruder drives, compressor starting systems, and pump speed control in hazardous area installations. The board’s robust closed-loop architecture ensures stable operation even under variable load conditions typical of process industry applications.

In mining and mineral processing, large DC drives equipped with C98043-A7001-L2-4 boards power conveyor systems, ball mill drives, and hoist drives, where reliability and the ability to restart under load are critical operational requirements. The board’s field weakening capability allows the motor to operate above base speed when required, maximizing throughput without oversizing the drive system.

In water and wastewater treatment facilities, DC pump drives with CUD control boards provide smooth speed control for large centrifugal pumps, reducing water hammer effects and extending pump and valve service life. The board’s serial communication capability allows integration with plant SCADA systems for remote monitoring and maintenance planning.

Product Compatibility FAQ

Q1: Is the C98043-A7001-L2-4 a direct plug-in replacement for earlier CUD board revisions in the SIMOREG 6RA70 series?
The C98043-A7001-L2-4 (revision L2-4) is designed as a functionally compatible replacement within the SIMOREG DC MASTER 6RA70 CUD platform. In most installations, the board can be exchanged without hardware modification to the drive chassis. However, engineers should verify that the parameter set (P-list) stored in the original board is backed up and restored to the replacement unit, as parameter memory is board-resident. Drive commissioning software such as DriveMonitor or STARTER can be used to transfer parameter files, ensuring that the replacement board assumes the exact control behavior of the original unit.

Q2: Can this board support PROFIBUS-DP communication for integration with a Siemens S7 PLC or DCS system?
Yes. The C98043-A7001-L2-4 supports PROFIBUS-DP communication when the optional CBP2 communication board is installed in the CUD expansion slot. Once configured, the drive appears as a standard PROFIBUS slave device on the network, exchanging process data (speed setpoint, actual speed, current, fault status) with the master PLC or DCS controller in each bus cycle. This enables full integration into Siemens TIA Portal or STEP 7 automation projects, allowing the drive to participate in coordinated machine sequences, interlocking logic, and centralized alarm management without additional hardware gateways.

Q3: What warranty terms are confirmed during quotation, and how does ZYPLC support long-term maintenance for this board?
All C98043-A7001-L2-4 boards supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering functional defects under normal operating conditions. Each board undergoes pre-shipment functional verification to confirm that control circuitry, communication interfaces, and I/O terminals operate within specification. For long-term maintenance planning, ZYPLC supports RFQ sourcing for CUD series boards and associated components, enabling rapid replacement in the event of drive faults that would otherwise cause extended production downtime. Our technical team can assist with parameter backup procedures, board exchange protocols, and post-installation commissioning support to ensure that replacement boards are integrated correctly into the existing drive architecture.
