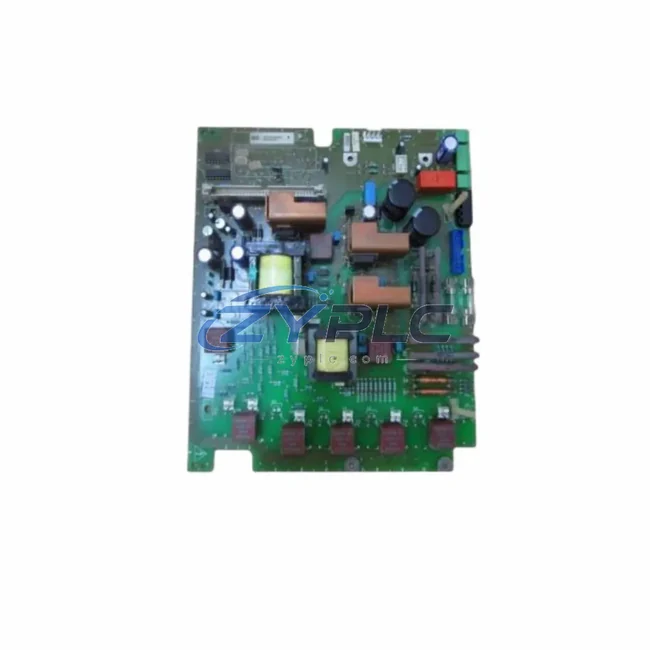

Siemens C98043-A7002-L4-12 Power Board for 6RA70

Siemens C98043-A7002-L4-12 Power Board for 6RA70

The Siemens C98043-A7002-L4-12 is a precision-engineered power board designed as a core functional component within the SIMOREG 6RA70 series DC drive platform. In modern industrial automation, a DC drive system is never a standalone device — it operates as an integrated node within a layered control architecture that spans the control layer, I/O layer, network layer, power supply layer, human-machine interface layer, and the execution layer. The C98043-A7002-L4-12 power board plays a critical role in ensuring stable power conversion, gate pulse generation, and firing circuit coordination within this architecture, directly influencing the reliability and performance of the entire drive system.

When this board is properly seated within the 6RA70 drive chassis, it interfaces with the control electronics board (CEB), the pulse transformer board, and the feedback signal conditioning circuits to form a tightly coupled power regulation loop. Any degradation in the power board’s performance — whether from aging thyristors, capacitor drift, or gate signal timing errors — propagates immediately into speed regulation instability, torque ripple, and ultimately process quality loss at the execution layer. Replacing or maintaining the C98043-A7002-L4-12 with a verified, tested unit is therefore not merely a component swap but a system-level restoration action.

From a system architecture perspective, the 6RA70 platform is commonly deployed in multi-drive configurations where several SIMOREG units share a common DC bus or operate in master-follower speed synchronization schemes. In these configurations, the power board’s firing angle precision directly affects inter-drive synchronization. Engineers integrating this board into a coordinated drive line — for example, a multi-motor paper machine, a steel rolling mill, or a winding/unwinding tension control system — must ensure that the C98043-A7002-L4-12 meets the original Siemens specification for gate pulse timing and current feedback linearity.

Product Specification Table

System Compatibility Notes

The C98043-A7002-L4-12 does not operate in isolation. Its performance is inseparable from the broader 6RA70 system architecture. At the control layer, the Siemens 6RA7085 or 6RA7093 SIMOREG DC Master main control unit issues speed and torque setpoints that are translated into firing angle commands processed by this power board. The C98043-A7100-L1 control electronics board (CEB) serves as the direct upstream interface, providing the digital firing angle signals that the C98043-A7002-L4-12 converts into gate pulses for the thyristor bridge.

At the power supply layer, the 6RA70 series fan and power supply board (such as the C98043-A7004 auxiliary power board) provides the low-voltage DC rails that energize the gate drive circuits on the C98043-A7002-L4-12. Any instability in these auxiliary rails — caused by a failing capacitor or rectifier on the auxiliary board — will manifest as erratic firing behavior on the power board, making coordinated maintenance of both boards essential during a drive overhaul.

At the I/O and feedback layer, the C98043-A7006 tachometer feedback board and the C98043-A7003 current feedback board provide the closed-loop signals that the control electronics use to continuously adjust the firing angle commands sent to the C98043-A7002-L4-12. In high-precision tension control or position-synchronized drive applications, the integrity of this feedback loop — and by extension the accuracy of the power board’s gate pulse timing — determines whether the system meets its process tolerances.

For network-layer integration, the 6RA70 platform supports PROFIBUS-DP communication via the optional CBP2 communication board, enabling the drive to receive speed references and report diagnostic data to a Siemens S7-300 or S7-400 PLC over a fieldbus network. The power board’s health directly affects the drive’s ability to respond to network-issued commands within the required cycle time. In redundant drive architectures — where a standby 6RA70 unit is configured to take over from a faulted master — having a verified spare C98043-A7002-L4-12 on hand is a standard engineering practice to minimize unplanned downtime.

At the human-machine interface layer, operators monitoring the drive via a Siemens OP7 or TP177 HMI panel connected to the S7 PLC will observe fault codes such as F025 (thyristor firing fault) or F030 (phase failure) when the power board develops a fault. These fault codes are the system’s way of signaling that the C98043-A7002-L4-12 requires inspection or replacement. Having a pre-tested replacement board available — covered under a warranty terms confirmed during quotation — allows maintenance teams to restore the drive to service within a single shift rather than waiting weeks for a repair cycle.

Industrial Application Notes

The Siemens C98043-A7002-L4-12 power board finds application across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, wide speed-range motor control.

Steel & Metals Processing: In rolling mills, wire drawing machines, and coiler/decoiler systems, the 6RA70 DC drive provides the precise torque control required for tension regulation across multiple motor stands. The C98043-A7002-L4-12 ensures that the thyristor bridge fires with the accuracy needed to maintain consistent strip tension and prevent cobbles or breaks in the product line.

Paper & Printing: Web tension control in paper machines and printing presses demands sub-millisecond firing angle response. The power board’s gate pulse precision directly determines whether the drive can maintain register accuracy across a multi-section machine operating at high line speeds.

Mining & Hoisting: Winding engines, mine hoists, and conveyor drives in underground and surface mining operations rely on the 6RA70 platform for its robust overload capacity and regenerative braking capability. The C98043-A7002-L4-12 supports the four-quadrant thyristor bridge configuration that enables controlled lowering of loaded skips and regenerative energy recovery.

Chemical & Petrochemical: Extruder drives, agitator motors, and compressor drives in process plants operate continuously for months without shutdown. The reliability of the power board in these applications is critical — a firing circuit fault in a continuous process can trigger a plant-wide emergency shutdown with significant production and safety consequences.

Water & Wastewater: Large pump drives in water treatment and desalination plants use DC drive technology for its ability to provide smooth, stepless speed control across a wide flow range. The C98043-A7002-L4-12 supports the stable, low-ripple output required to protect pump seals and mechanical components from torque shock.

Product Compatibility FAQ

Q1: Is the C98043-A7002-L4-12 compatible with all variants of the Siemens 6RA70 series?
The C98043-A7002-L4-12 is designed for use within the SIMOREG 6RA70 DC Master series. Compatibility depends on the specific drive current rating and chassis size. Engineers should verify the drive’s full model number (e.g., 6RA7085, 6RA7093, 6RA7095) and cross-reference with the Siemens spare parts list for the relevant drive variant before installation. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What is included in the warranty terms confirmed during quotation, and how does it apply to system integration scenarios?
The warranty terms confirmed during quotation covers functional defects in the C98043-A7002-L4-12 power board from the date of shipment. This includes gate drive circuit failures, component-level defects, and board-level functional failures under normal operating conditions. The warranty applies to the board as a component and does not cover damage resulting from incorrect installation, overvoltage events at the system level, or incompatible drive configurations. For system integration scenarios — where the board is installed as part of a broader drive system restoration — we recommend documenting the installation environment and drive configuration at the time of commissioning to support any warranty claims.

Q3: What is the recommended commissioning procedure when replacing the C98043-A7002-L4-12 in a running production system?
Replacement should be performed with the drive de-energized and locked out in accordance with local electrical safety regulations. After physical installation, the drive should be powered up in a no-load condition and the firing angle calibration verified using the 6RA70’s built-in diagnostic functions (accessible via the PMU operator panel or PROFIBUS diagnostic interface). Key parameters to verify include P051 (armature current actual value), P052 (firing angle actual value), and the thyristor monitoring function. A graduated load test — starting at 25%, 50%, 75%, and 100% of rated current — should be completed before returning the drive to full production service. Our engineering support team is available to assist with remote commissioning guidance within the warranty period.
