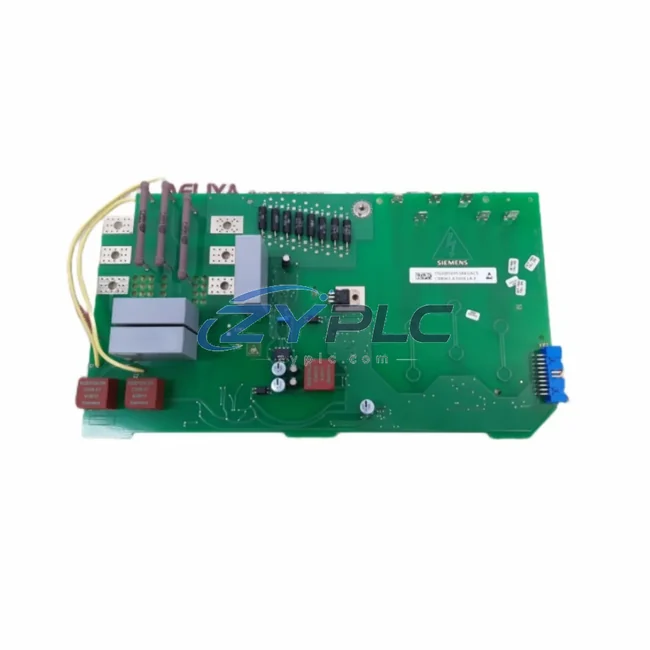

Siemens C98043-A7004-L2 Excitation Board SIMOREG

Siemens C98043-A7004-L2 Excitation Board for SIMOREG Automation

The Siemens C98043-A7004-L2 is a high-performance excitation board engineered for the SIMOREG DC Master drive series, one of Siemens’ most trusted platforms for precision DC motor control in heavy industrial environments. In modern manufacturing, where equipment uptime and replacement lead time directly affect production continuity, the excitation board plays a critical but often overlooked role: it governs the field current supplied to the DC motor, directly influencing torque response, speed regulation accuracy, and overall drive efficiency. A degraded or mismatched excitation board leads to field weakening errors, unstable motor speed, excessive heat generation, and ultimately higher operating load per production cycle. The C98043-A7004-L2 eliminates these inefficiencies by restoring precise field current control, enabling the SIMOREG drive to operate within its optimal efficiency envelope.

Sourced from verified supply channels, each C98043-A7004-L2 unit undergoes functional testing prior to shipment, covering field current output stability, signal integrity across the CUD1 control interface, and thermal performance under load simulation. Stock is maintained for shipment arranged after confirmation, minimizing production downtime for facilities that cannot afford extended lead times on critical drive components.

Product Specification Table

System Compatibility and Application

The C98043-A7004-L2 does not operate in isolation — its efficiency contribution is realized within a tightly integrated drive and control architecture. In a typical SIMOREG-based DC drive system, the excitation board works in concert with the CUD1 central control board (C98043-A7100-L1 or L2 variants), which handles speed and current regulation via closed-loop PID algorithms. The CUD1 sends field current setpoints to the C98043-A7004-L2, which then modulates the thyristor firing angle to deliver precise field excitation. Any drift in this excitation signal cascades into speed instability, increased armature current draw, and measurable unplanned downtime.

On the power side, the SIMOREG 6RA7031, 6RA7075, or 6RA7085 converter modules provide the rectified DC bus voltage that the excitation board regulates. Upstream, line reactors and input fuses protect the converter from supply transients that could otherwise stress the excitation circuit. On the feedback side, tachogenerator or encoder signals — processed through the pulse encoder evaluation board (C98043-A7002 series) — provide the speed feedback that the CUD1 uses to trim field current in real time, maintaining optimal flux levels across varying load conditions.

For facilities running PROFIBUS-DP communication, the optional CBP2 communication board integrates the SIMOREG drive into a SIMATIC S7-300 or S7-400 PLC network, enabling centralized condition monitoring and drive parameter logging. When paired with a SIMATIC ET 200S distributed I/O system, operators gain granular visibility into drive operating states — including field current actual values, fault codes, and efficiency metrics — directly at the HMI level via a SIMATIC TP700 or TP900 panel. This closed-loop data flow from the C98043-A7004-L2 through the CUD1 to the PLC and HMI forms the backbone of a predictive maintenance strategy: field current deviations detected early prevent unplanned motor failures and the associated energy spikes from uncontrolled motor restarts.

In multi-drive installations — common in paper mills and steel processing lines — the SIMOREG drives are often synchronized via a master-follower configuration managed through the CUD1’s peer-to-peer interface. In this topology, a faulty excitation board on any single drive can desynchronize the entire line, causing tension imbalances, material waste, and cascading energy inefficiency. Maintaining a verified spare C98043-A7004-L2 in inventory is therefore not merely a maintenance decision but an maintenance planning strategy.

Maintenance and Replacement Notes

In continuous process industries — steel rolling mills, paper and board machines, rubber extruders, and large-scale winding systems — DC drives controlled by the SIMOREG platform are responsible for moving enormous amounts of material at precisely regulated speeds. The excitation board’s role in this context is to ensure that the motor’s magnetic field is always at the correct strength for the demanded torque and speed. When field current is too low, the motor compensates by drawing more armature current, increasing copper losses and heat. When field current is too high, iron losses rise unnecessarily. The C98043-A7004-L2 maintains this balance with the precision required for energy-efficient operation.

Facilities that have replaced degraded excitation boards report measurable reductions in drive operating temperature, fewer thermal protection trips, and improved production line throughput consistency. Fewer thermal trips mean fewer unplanned stops — and every unplanned stop in a continuous process line carries an energy penalty: restarting a large DC motor from standstill consumes significantly more energy than maintaining steady-state operation. By keeping the SIMOREG drive in its optimal operating window, the C98043-A7004-L2 directly supports line OEE (Overall Equipment Effectiveness) targets.

Predictive maintenance programs that monitor field current actual values via the SIMOREG’s diagnostic interface can use deviations from baseline as an early indicator of excitation board degradation. Integrating this data into a SCADA or MES system — via the PROFIBUS or PROFINET gateway — allows maintenance teams to schedule board replacement during planned downtime windows rather than reacting to emergency failures. This shift from reactive to predictive maintenance is one of the highest-leverage maintenance planning strategies available to industrial operators, and the C98043-A7004-L2’s compatibility with the full SIMOREG diagnostic ecosystem makes it a key enabler of that strategy.

Product Sourcing FAQ

Q1: How does replacing the C98043-A7004-L2 excitation board reduce operating load?
A degraded excitation board causes the SIMOREG drive to operate with unstable or incorrect field current, forcing the motor to draw excess armature current to compensate. This increases both copper losses in the motor windings and heat dissipation in the drive. Replacing the board with a verified C98043-A7004-L2 restores precise field current control, returning the motor-drive system to its rated efficiency and reducing unplanned downtime risk.

Q2: Which SIMOREG drive models is the C98043-A7004-L2 compatible with?
The C98043-A7004-L2 is designed for the Siemens SIMOREG DC Master 6RA70 series. Compatibility depends on the specific drive rating and hardware revision. We recommend confirming the drive’s existing board configuration — particularly the CUD1 firmware version and power section rating — before ordering. Our technical team can assist with compatibility verification.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each C98043-A7004-L2 unit is functionally tested prior to dispatch, including field current output verification, signal integrity checks on the CUD1 interface connectors, and thermal performance assessment. The warranty terms confirmed during quotation covers component failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified drive platform.

Q4: Can this board be used as a direct replacement without drive reconfiguration?
In most cases, yes — the C98043-A7004-L2 is a direct plug-in replacement for the same board revision within the SIMOREG 6RA70 platform. However, after installation, it is recommended to verify field current actual values via the SIMOREG parameter set (r082, r083) and perform a field current optimization run (P051 = 25) to ensure the drive re-calibrates field control to the new board’s characteristics. This step takes approximately 10–15 minutes and ensures optimal energy efficiency from the first production run.
