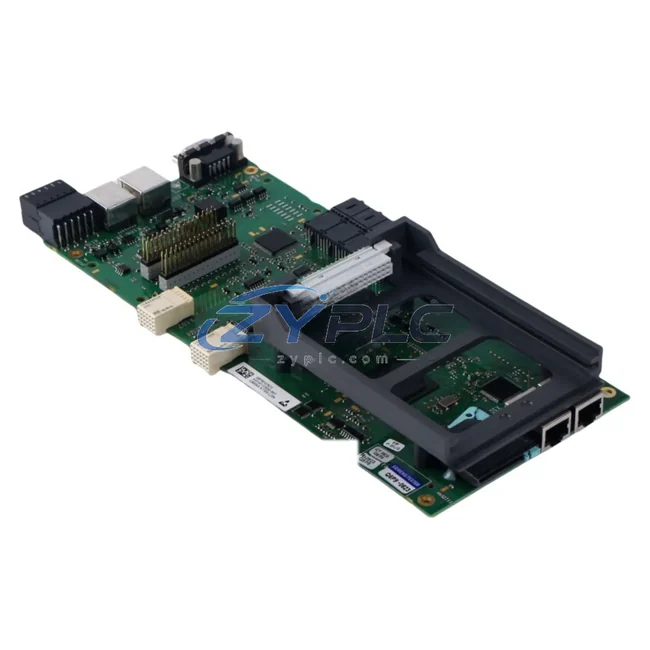

Siemens C98043-A7100-L103 Board for SIMOREG

Siemens C98043-A7100-L103 Board for SIMOREG: Precision DC Drive Efficiency Control

The Siemens C98043-A7100-L103 is a high-performance DC Master control board engineered for the SIMOREG DC Master drive platform — one of Siemens’ most trusted series for industrial DC motor control. Designed to operate within demanding production environments, this board serves as the central intelligence layer for closed-loop speed and torque regulation, enabling factories to achieve measurable reductions in energy consumption, motor wear, and unplanned downtime.

In modern industrial automation, energy efficiency is no longer a secondary consideration — it is a core operational metric. The C98043-A7100-L103 addresses this directly by providing precise firing pulse generation and feedback signal processing that keeps DC drives operating at optimal efficiency points. When integrated into a well-configured SIMOREG system, this board helps eliminate the energy losses associated with uncontrolled motor starts, inefficient speed transitions, and reactive power spikes that are common in aging or poorly maintained DC drive installations.

This board is fully compatible with the SIMOREG 6RA70 series converters, including the 6RA7031, 6RA7075, and 6RA7085 units commonly deployed in rolling mills, extruders, winding machines, and crane systems. When paired with the SIMOREG CUD1 (6SE7090-0XX84-0AB0) central unit, the C98043-A7100-L103 enables full parameterization of energy-relevant drive functions including field weakening, regenerative braking energy recovery, and adaptive current limiting — all of which directly reduce kWh consumption per production cycle.

Product Specification Table

System Compatibility and Application

The C98043-A7100-L103 does not operate in isolation — its maintenance planning value is fully realized when it functions as part of a coordinated automation architecture. In a typical high-efficiency DC drive system, the board interfaces with the SIMOREG CUD1 central unit to execute parameterized control strategies that adapt motor output to actual load demand in real time, rather than running at fixed speed regardless of process requirements.

On the power monitoring side, integration with Siemens SENTRON PAC3200 power meters allows plant engineers to capture real-time kW, kVAR, and power factor data at the drive level. This data feeds into energy dashboards that identify inefficient operating windows — for example, periods where the DC motor is drawing full current but producing below-rated mechanical output due to worn brushes or misaligned load coupling.

For communication and supervisory control, the SIMOREG platform supports PROFIBUS DP connectivity via the CBP2 communication board, enabling the C98043-A7100-L103-equipped drive to exchange speed references, torque limits, and fault diagnostics with a SIMATIC S7-400 PLC or SIMATIC S7-300 CPU in real time. This closed-loop feedback architecture is essential for production lines where motor speed must track upstream process variables — such as strip tension in a rolling mill or web speed in a printing press — without energy-wasting overcorrection.

At the HMI level, operators can monitor drive status and energy KPIs through a SIMATIC TP1500 Comfort Panel, which displays live efficiency metrics and alarm histories. When a fault is detected on the C98043-A7100-L103 — such as a firing pulse asymmetry or feedback signal dropout — the HMI immediately alerts maintenance personnel, reducing the mean time to repair and preventing the extended low-efficiency operation that often precedes a full drive failure.

For distributed I/O expansion in larger installations, the SIMATIC ET 200M remote I/O station provides additional analog and digital channels for temperature sensors, encoder feedback, and auxiliary relay outputs — all of which contribute to a more complete picture of drive health and energy consumption across the production cell.

Maintenance and Replacement Notes

In a paper mill application, for example, replacing a failed or degraded control board with a properly functioning C98043-A7100-L103 can restore the drive’s ability to execute smooth acceleration ramps, eliminating the current spikes that occur during uncontrolled starts. These spikes not only stress the power supply infrastructure but also appear as reactive power demand on the facility’s energy bill. Restoring precise firing angle control directly reduces this reactive component, improving the site’s overall power factor.

In crane and hoist applications, the board’s support for regenerative braking — when configured with the appropriate SIMOREG converter — allows kinetic energy from lowering loads to be returned to the DC bus rather than dissipated as heat in braking resistors. Over hundreds of lift cycles per shift, this energy recovery can represent a meaningful reduction in net power consumption.

For extruder and winding machine applications, the C98043-A7100-L103 enables tight speed regulation that keeps the DC motor operating within its highest-efficiency torque band. Avoiding operation in the low-efficiency regions at the extremes of the speed-torque curve — which is common when control boards degrade and lose regulation accuracy — directly reduces the kWh consumed per kilogram of material processed.

From a maintenance cost perspective, the board’s precise control also reduces mechanical stress on motor commutators and brushes by eliminating the torque ripple associated with firing pulse irregularities. This extends brush life, reduces commutator resurfacing frequency, and lowers the total cost of ownership for the DC drive system over its operational lifetime. All units supplied by ZYPLC undergo functional testing prior to shipment, with availability confirmed by RFQ availability supporting rapid deployment to minimize production downtime.

Product Sourcing FAQ

Q1: How does the C98043-A7100-L103 contribute to operational stability in a DC drive system?
The board controls the firing angles of the thyristor bridge in the SIMOREG converter, directly determining how efficiently AC power is converted to DC motor current. A properly functioning board minimizes harmonic distortion and reactive power draw, reducing both energy consumption and utility demand charges.

Q2: Is this board compatible with my existing SIMOREG 6RA70 series converter?
The C98043-A7100-L103 is designed for the SIMOREG DC Master 6RA70 platform. Compatibility depends on your specific converter model and firmware version. We recommend confirming your converter’s board slot configuration against the Siemens documentation for your unit, or contacting our technical team for verification before ordering.

Q3: What is the replacement and testing process?
All boards supplied by ZYPLC are tested under load conditions prior to shipment to verify firing pulse symmetry, feedback signal integrity, and logic supply performance. Replacement involves powering down the converter, swapping the board in the designated slot, and re-parameterizing any board-specific settings via the SIMOREG operator panel or SIMATIC STEP 7 / Drive ES software. Our team can provide technical guidance throughout this process.

Q4: What warranty coverage is provided?
Every C98043-A7100-L103 unit ships with a warranty terms confirmed during quotation covering functional defects under normal operating conditions. If the board fails within the warranty period due to a manufacturing or component defect, ZYPLC will provide a replacement unit. Warranty claims are processed promptly to minimize impact on your production schedule.
