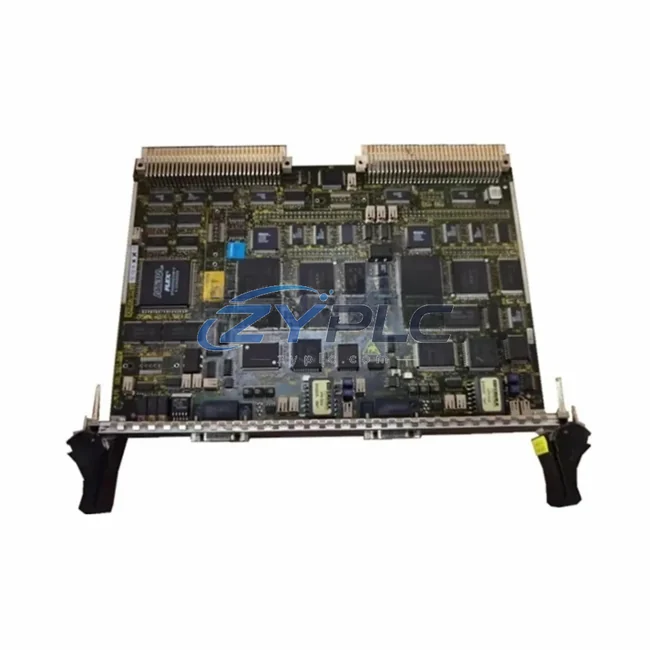

Siemens CP50M0 6DD1661-0AD0 Communication for TDC

Siemens CP50M0 6DD1661-0AD0 Communication for TDC

The Siemens CP50M0 (6DD1661-0AD0) is a high-performance communication processor module engineered specifically for the SIMATIC TDC (Technology and Drive Control) platform — one of Siemens’ most powerful multi-processor control systems for demanding industrial automation environments. Within a layered automation architecture, the CP50M0 occupies a critical position at the network and inter-processor communication layer, enabling deterministic, high-speed data exchange between TDC CPU modules, distributed I/O subsystems, drive controllers, and supervisory SCADA or DCS systems. Its role is not simply to transmit data — it is to ensure that the entire control system operates as a coherent, synchronized, and fault-tolerant whole.

In modern industrial control architectures — whether applied to steel rolling mills, power generation turbines, paper machine drives, or large-scale process plants — the communication backbone is as critical as the processing power itself. The CP50M0 addresses this need by providing robust inter-rack and inter-system communication capabilities within the SIMATIC TDC rack environment, supporting high-cycle synchronization between multiple CPU570 or CPU551 processor modules sharing a common TDC rack backplane. This tight coupling between computation and communication is what allows TDC-based systems to achieve sub-millisecond control cycles across complex, multi-axis or multi-loop applications.

From a system architecture perspective, the CP50M0 integrates seamlessly with the broader SIMATIC TDC ecosystem. It works in conjunction with the UR5213 universal rack, which provides the physical backplane for module interconnection, and coordinates with power supply modules such as the PS50 to ensure stable, conditioned power delivery across the rack. On the I/O side, the CP50M0 facilitates communication with distributed I/O nodes connected via PROFIBUS DP or other fieldbus protocols, allowing field signals from analog input modules, digital output modules, and encoder interface cards to be processed with the timing precision required by high-performance drive and motion control applications.

The module’s communication architecture also supports integration with Siemens SINAMICS and MASTERDRIVES drive systems, enabling coordinated multi-drive control scenarios where speed references, torque commands, and status feedback must be exchanged in real time. In redundant system designs, the CP50M0 can support hot-standby configurations where a secondary TDC rack mirrors the primary, ensuring that a single module or rack failure does not interrupt production. This redundancy capability is particularly valued in continuous process industries such as petrochemicals, power generation, and metals processing, where unplanned downtime carries significant operational and financial consequences.

At the human-machine interface layer, the CP50M0 supports connectivity to Siemens WinCC SCADA systems and SIMATIC HMI panels via OPC or direct Ethernet communication paths, providing operators with real-time visibility into system states, alarm conditions, and process variables. This end-to-end integration — from field sensor through I/O module, across the TDC backplane via the CP50M0, up through the CPU processing layer, and out to the HMI — represents the full depth of system integration that modern industrial automation demands.

For engineering teams responsible for system commissioning and long-term maintenance, the CP50M0 offers significant practical advantages. Its modular design allows individual modules to be replaced without disturbing adjacent components in the rack, reducing maintenance downtime. Diagnostic LEDs and status registers accessible via the TDC engineering software (SIMATIC TDC ES) provide detailed fault information that accelerates troubleshooting. Spare module availability is a key consideration for long-lifecycle industrial installations, and ZYPLC supports RFQ sourcing for the CP50M0 6DD1661-0AD0 to support both new system builds and ongoing maintenance requirements. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing to verify communication integrity and module health before delivery.

Product Specification Table

System Compatibility Notes

The CP50M0 6DD1661-0AD0 does not operate in isolation — its value is realized through its role as the communication backbone within a fully coordinated SIMATIC TDC control system. A typical TDC-based architecture begins with the UR5213 rack, which houses multiple CPU570 or CPU551 processor modules responsible for executing high-speed control algorithms. The CP50M0 sits within this same rack, managing the flow of data between CPUs and between the rack and external systems.

Power integrity across the rack is maintained by the PS50 power supply module, which provides the regulated DC voltages required by all installed modules including the CP50M0. On the drive side, the CP50M0 facilitates real-time communication with SINAMICS S120 drive systems and legacy MASTERDRIVES MC units, passing speed setpoints, torque limits, and actual value feedback with the cycle-time precision required for coordinated multi-drive applications such as rolling mill stands or winder-unwinder systems.

At the I/O layer, distributed signal acquisition is handled by SM modules — including analog input cards for process variable measurement and digital I/O modules for discrete control signals — connected via PROFIBUS DP segments that the CP50M0 helps coordinate. For applications requiring encoder-based position or speed feedback, the TDC system integrates encoder interface modules that feed directly into the CPU processing chain. Terminal modules and marshalling components within the control cabinet provide the physical signal termination points that connect field instrumentation to the I/O layer.

In redundant architectures, a secondary TDC rack equipped with its own CP50M0 mirrors the primary system, with automatic switchover logic ensuring continuity of control in the event of a primary module failure. This redundancy design is commonly specified in power plant turbine control, continuous caster automation, and critical process control applications where system availability requirements exceed 99.9%.

Industrial Application Notes

The Siemens CP50M0 6DD1661-0AD0 finds application across a wide range of demanding industrial sectors where high-performance, multi-processor control is required. In the metals and steel industry, TDC-based systems with CP50M0 communication modules are deployed in hot and cold rolling mill main drive control, where multiple drive axes must be synchronized to within microseconds to maintain strip tension and thickness tolerances. The CP50M0 ensures that speed and torque references are distributed across all drive controllers with the determinism that rolling process quality demands.

In power generation, the SIMATIC TDC platform with CP50M0 is used for turbine governor control and excitation system automation, where the communication module enables fast data exchange between the turbine control CPU and the generator protection and monitoring systems. The warranty terms confirmed during quotation provided on all ZYPLC-supplied CP50M0 units gives power plant operators confidence in the reliability of replacement modules during scheduled maintenance outages.

In the petrochemical and refining sector, TDC systems are applied to compressor control and large rotating machinery protection, where the CP50M0 supports the high-speed data loops required for surge control and vibration monitoring integration. Paper and board machine drive systems represent another major application area, where the CP50M0 coordinates communication across the full machine section drive train — from the wire section through press, dryer, and reel sections — ensuring consistent web tension and speed profile management.

Water treatment and municipal infrastructure projects increasingly specify TDC-based control for large pump station automation and treatment process control, where the CP50M0’s robust communication architecture supports long-term, low-maintenance operation. Mining and mineral processing applications, including conveyor drive systems and mill drive control, also benefit from the module’s ability to maintain communication integrity in electrically noisy industrial environments.

Product Compatibility FAQ

Q1: Is the CP50M0 6DD1661-0AD0 compatible with both CPU570 and CPU551 processor modules in the same TDC rack?
Yes. The CP50M0 is designed to operate within the SIMATIC TDC rack environment and supports communication coordination with both CPU570 and CPU551 processor modules. The specific inter-CPU communication configuration is defined within the TDC Engineering Software (TDC ES), where communication links between processor modules and the CP50M0 are configured as part of the overall system project. Compatibility should always be verified against the specific firmware versions of the installed CPU modules and the TDC ES project version in use.

Q2: Can the CP50M0 be used in a hot-standby redundant TDC architecture, and what are the installation requirements?
The SIMATIC TDC platform supports redundant configurations where two racks operate in a primary/standby relationship. In such architectures, each rack requires its own CP50M0 module to maintain communication capability independently. The redundancy switchover logic is managed at the CPU and system software level. Physical installation requirements include identical rack configurations in both primary and standby racks, with the CP50M0 installed in the same slot position in each rack. ZYPLC can supply matched pairs of CP50M0 6DD1661-0AD0 modules for redundant system builds, each covered by the standard warranty terms confirmed during quotation.

Q3: What does the warranty terms confirmed during quotation cover for the CP50M0 6DD1661-0AD0 supplied by ZYPLC, and what is the support process for warranty claims?
All CP50M0 6DD1661-0AD0 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing to confirm communication integrity and module health. In the event of a warranty claim, customers should contact ZYPLC directly via the contact details below to initiate the return and replacement process. ZYPLC supports RFQ sourcing for CP50M0 modules to support rapid replacement, minimizing system downtime during warranty service events.
