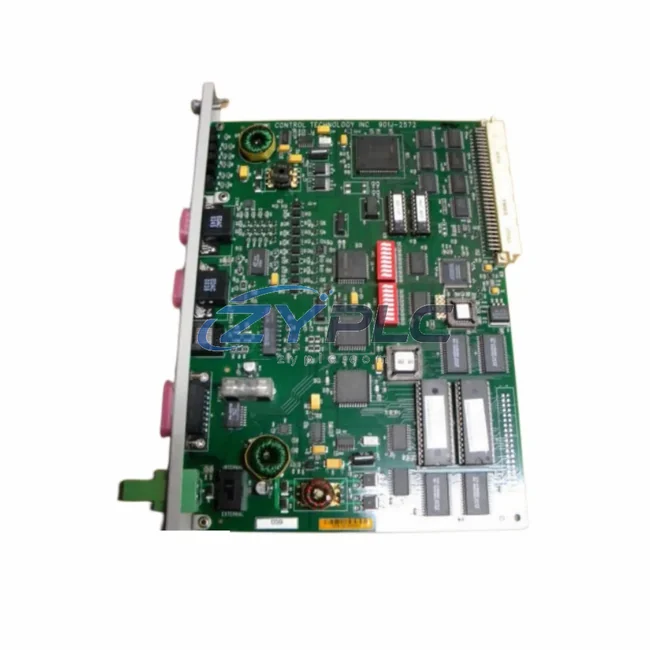

Siemens CTI 2572 Ethernet TCP/IP Adapter for Series 505 Systems

Siemens CTI 2572 Ethernet TCP/IP Adapter: Industrial Data Link for Series 505 Systems

The Siemens CTI 2572 is a high-performance Ethernet TCP/IP communication adapter engineered for Series 505 PLC platforms, delivering seamless industrial network connectivity across the full automation hierarchy — from field-level sensors and remote I/O modules to SCADA supervisory systems and enterprise MES layers. In modern smart factory environments where data latency, protocol fragmentation, and network instability directly impact production efficiency, the CTI 2572 serves as a critical communication bridge that eliminates data silos and enables real-time visibility across every node in the control architecture.

Designed for demanding industrial environments, the CTI 2572 integrates directly into the Series 505 backplane, providing a dedicated Ethernet TCP/IP port that connects the PLC controller to plant-wide Ethernet infrastructure without the need for external protocol converters or additional gateway hardware. This native integration reduces network complexity, minimizes communication latency, and ensures deterministic data exchange between the PLC and upstream systems including WinCC SCADA, iFIX HMI, and third-party OPC-DA/OPC-UA servers.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 505 automation architecture, the CTI 2572 sits at the heart of the communication chain, orchestrating data flow between multiple layers of industrial equipment. At the field level, discrete and analog signals from Series 505 remote I/O modules — such as the CTI 2500 Series I/O — are scanned by the PLC CPU and made available to the CTI 2572 over the backplane bus. The adapter then encapsulates this process data into Ethernet TCP/IP frames and transmits it upstream to the plant network in real time.

On the network side, the CTI 2572 communicates directly with WinCC flexible HMI panels and SIMATIC WinCC SCADA servers, delivering live process values, alarm states, and diagnostic data without polling delays. Simultaneously, the adapter supports peer-to-peer communication with other CTI 2572-equipped Series 505 PLCs across the plant floor, enabling distributed control architectures where multiple controllers share production data over a common Ethernet backbone.

For drive integration, the CTI 2572 facilitates communication between the Series 505 PLC and Siemens SINAMICS G120 variable frequency drives via Modbus TCP, allowing the controller to issue speed references, read drive status registers, and respond to fault conditions in real time. This eliminates the need for dedicated drive communication modules and simplifies the overall network topology.

At the edge layer, the CTI 2572 interfaces with industrial edge gateways running IIoT middleware, enabling the Series 505 platform to participate in cloud-connected architectures. Process historians, energy management systems, and predictive maintenance platforms can subscribe to live data streams from the PLC via OPC-DA or OPC-UA bridging software, with the CTI 2572 serving as the Ethernet access point. SIMATIC S7-300 series controllers operating in adjacent production cells can also exchange data with the Series 505 system through standard Ethernet routing, supporting cross-platform integration in mixed-controller environments.

For remote I/O expansion, the CTI 2572 works alongside CTI 2500-Axx analog input modules and CTI 2500-Dxx digital I/O modules, ensuring that all field signals — whether from proximity sensors, pressure transmitters, or thermocouple inputs — are accurately represented in the PLC data table and transmitted to the SCADA layer without data loss or communication gaps. Temperature sensors, flow meters, and vibration transducers connected through these I/O modules benefit from the CTI 2572’s high-throughput Ethernet link, which supports rapid scan cycles and minimizes the time between signal acquisition and supervisory system update.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where Series 505 PLCs, third-party drives, remote I/O racks, and HMI systems each speak different communication dialects, creating data islands that prevent plant-wide visibility. The CTI 2572 directly addresses this by providing a unified Ethernet TCP/IP interface that bridges the Series 505 native SRTP protocol with standard industrial Ethernet services, allowing existing automation investments to participate in modern network architectures without requiring controller replacement.

Remote monitoring is another critical capability enabled by the CTI 2572. Maintenance engineers can access live PLC data, force outputs for diagnostic purposes, and review alarm histories from any networked workstation or remote desktop session — without requiring physical access to the control panel. This capability is particularly valuable in geographically distributed facilities, where a single SCADA operator may be responsible for monitoring multiple production lines or remote pump stations simultaneously.

Production line transparency is achieved through the CTI 2572’s ability to expose all Series 505 data registers to OPC-compliant SCADA and MES platforms. KPIs such as cycle time, reject rate, energy consumption, and equipment utilization can be calculated in real time from PLC data and displayed on plant dashboards, giving production managers the visibility they need to make informed decisions without waiting for end-of-shift reports.

System expansion is equally straightforward. As production capacity grows, additional Series 505 I/O racks and remote stations can be added to the network and immediately integrated into the existing SCADA architecture through the CTI 2572’s Ethernet infrastructure. The adapter’s support for multiple simultaneous TCP connections ensures that new HMI panels, historian clients, and OPC servers can be added without disrupting existing communication sessions or requiring network reconfiguration.

Industrial Connectivity FAQ

Q1: What is the communication latency of the CTI 2572 in a live SCADA environment?
The CTI 2572 supports 10/100 Mbps full-duplex Ethernet with auto-negotiation, delivering typical end-to-end communication latency of under 10 milliseconds in standard industrial Ethernet environments. For time-critical applications, it is recommended to segment the PLC network from general IT traffic using managed industrial switches to ensure deterministic performance.

Q2: Is the CTI 2572 compatible with third-party SCADA and HMI systems beyond Siemens WinCC?
Yes. The CTI 2572 supports Modbus TCP and SRTP protocols, which are widely supported by third-party SCADA platforms including Wonderware InTouch, iFIX, Ignition by Inductive Automation, and Citect SCADA. OPC-DA connectivity is also achievable through standard OPC server software, enabling integration with virtually any supervisory system that supports OPC standards.

Q3: How does the CTI 2572 maintain network stability in electrically noisy industrial environments?
The CTI 2572 is designed for industrial-grade operation and supports standard Ethernet error detection and retransmission mechanisms. For installations in high-EMI environments, it is recommended to use shielded Cat5e or Cat6 Ethernet cabling, industrial-grade managed switches with port isolation features, and proper cable routing practices to minimize electromagnetic interference. The adapter’s native TCP/IP stack handles packet loss and retransmission transparently, ensuring data integrity even in challenging electrical environments.

Q4: What quality assurance process does ZYPLC apply before shipping the CTI 2572?
Every CTI 2572 unit supplied by ZYPLC undergoes a full functional test prior to dispatch, including communication protocol verification, Ethernet link establishment, and data register read/write validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified hardware fault within the warranty period, ZYPLC will arrange replacement or repair at no additional cost to the customer. Units are shipped via DHL or FedEx with full tracking and export documentation.
