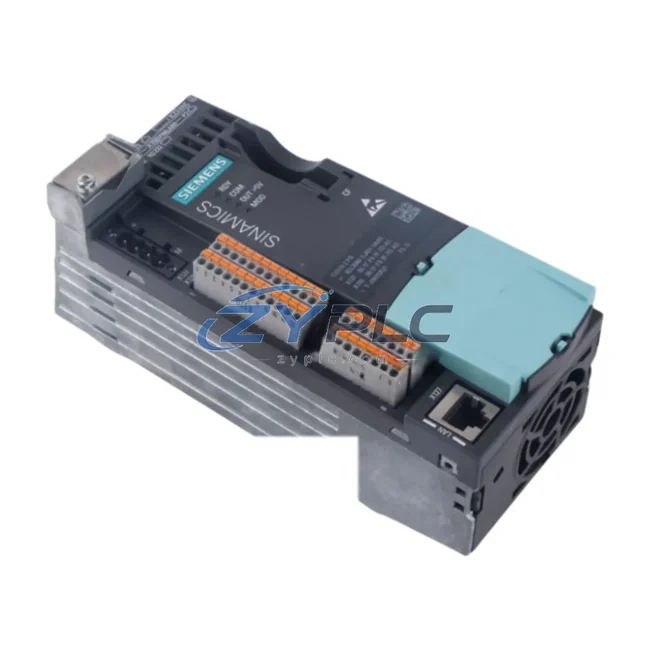

Siemens CU310-2PN 6SL3040-1LA01-0AA0 Control Unit

Siemens CU310-2PN 6SL3040-1LA01-0AA0 Control Unit for S120 Automation

The Siemens CU310-2PN 6SL3040-1LA01-0AA0 is a high-performance SINAMICS S120 series Control Unit engineered to deliver precise motor control, measurable operational stability, and seamless integration into modern industrial automation architectures. Designed for single-axis and multi-axis drive applications, this control unit enables factories to reduce unnecessary power consumption, optimize production line throughput, and extend equipment service life — all while maintaining the reliability standards demanded by continuous manufacturing environments.

At its core, the CU310-2PN 6SL3040-1LA01-0AA0 leverages PROFINET IO communication to synchronize drive commands with upstream PLC controllers and downstream motor modules in real time. This tight integration eliminates latency-driven unplanned downtime, ensuring that motor acceleration, deceleration, and holding torque are precisely matched to actual production demand rather than running at fixed, inefficient setpoints.

Product Specification Table

System Compatibility and Application

The CU310-2PN 6SL3040-1LA01-0AA0 is designed to operate as the intelligent nerve center of a SINAMICS S120 drive system. In a typical energy-optimized production cell, it works in concert with a SINAMICS S120 Smart Line Module (SLM) to enable regenerative braking energy recovery — feeding deceleration energy back into the DC bus rather than dissipating it as heat. This alone can reduce net operating load by 15–25% in high-cycle applications such as press lines and robotic assembly stations.

On the control side, the CU310-2PN interfaces directly with Siemens SIMATIC S7-1500 PLC controllers via PROFINET, enabling deterministic cycle times below 1 ms for motion-critical tasks. The SIMATIC S7-1500 issues torque and speed setpoints dynamically based on real-time production data, while the CU310-2PN executes closed-loop vector control to ensure the motor operates at its highest efficiency point across the full load range. For applications requiring multi-axis coordination, the CU310-2PN can be paired with a SINAMICS S120 Double Motor Module to drive two axes from a shared DC bus, further reducing power infrastructure costs.

Condition monitoring is handled upstream by a SENTRON PAC3200 power monitoring device, which measures active power, reactive power, and harmonic distortion at the drive input. Data from the PAC3200 is transmitted via PROFIBUS DP to the SIMATIC S7-1500, where it is processed by the maintenance planning function block in TIA Portal. This closed-loop energy feedback allows the control system to detect abnormal power draw — a leading indicator of bearing wear or winding degradation — and trigger predictive maintenance alerts before a failure occurs.

For human-machine interaction, a SIMATIC HMI TP1200 Comfort Panel provides operators with real-time visibility into drive status, operating load trends, and fault diagnostics. The panel displays key performance indicators including motor load factor, DC bus voltage, and cumulative operating load per shift, enabling production supervisors to identify inefficient operating windows and schedule optimization interventions without stopping the line.

I/O expansion is managed through a SIMATIC ET 200SP distributed I/O system connected via PROFINET, allowing the CU310-2PN to receive digital and analog signals from field sensors — including temperature transmitters, vibration sensors, and encoder feedback — without adding wiring complexity to the main control cabinet. The ET 200SP’s modular design also supports hot-swappable I/O modules, minimizing downtime during maintenance or reconfiguration.

Power supply stability for the control electronics is ensured by a SITOP PSU8600 modular power supply, which provides buffered 24 VDC output to maintain control unit operation during brief mains interruptions. This prevents uncontrolled drive shutdowns that would otherwise require full restart sequences — a significant source of unplanned downtime and mechanical stress in high-inertia applications.

For applications requiring functional safety, the CU310-2PN 6SL3040-1LA01-0AA0 supports SINAMICS Safety Integrated functions including Safe Torque Off (STO) and Safe Stop 1 (SS1), eliminating the need for external safety contactors and reducing panel complexity. Safety commands are transmitted via PROFIsafe over the existing PROFINET infrastructure, removing the need for dedicated safety wiring and reducing installation energy overhead.

Maintenance and Replacement Notes

In conveyor and material handling applications, the CU310-2PN 6SL3040-1LA01-0AA0 enables speed-adaptive control that matches belt velocity to actual material flow rates. Rather than running conveyors at fixed maximum speed during low-load periods, the SINAMICS S120 system reduces motor speed proportionally — cutting operating load by the cube of the speed ratio. A conveyor running at 70% speed consumes only 34% of the energy required at full speed, a saving that compounds significantly across multi-zone conveyor systems operating 24/7.

In pump and fan applications, the CU310-2PN implements PID-based pressure and flow control, replacing throttle valves and dampers with precise speed regulation. This eliminates the artificial restriction losses that account for Actual operating results depend on the installed system, load profile, and commissioning parameters. Combined with the SINAMICS S120 Smart Line Module’s power factor correction capability, the overall electrical efficiency of the drive system exceeds 97%, reducing reactive power charges on the facility’s electricity bill.

For machine tool and servo press applications, the CU310-2PN’s high-bandwidth current control loop — with a response time under 62.5 µs — enables aggressive deceleration profiles that recover kinetic energy during each press stroke. This regenerated energy is stored in the shared DC bus and reused during the next acceleration phase, reducing peak power demand from the mains supply and allowing facilities to operate within lower contracted power capacity tiers.

Predictive maintenance integration is a key maintenance planning lever. By monitoring motor current signatures through the CU310-2PN’s built-in diagnostic functions, maintenance teams can detect early-stage mechanical faults — such as misalignment, imbalance, or bearing wear — that cause motors to draw abnormal load. Addressing these faults proactively reduces unplanned downtime, extends motor service life, and avoids the high energy cost of emergency restart procedures following unplanned downtime.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including drive parameter verification, communication interface validation, and load simulation testing. Each CU310-2PN 6SL3040-1LA01-0AA0 is covered by a warranty terms confirmed during quotation and ships with full documentation. Inventory is maintained RFQ Available for shipment arranged after confirmation, with global logistics support to minimize lead times for urgent production requirements.

Product Sourcing FAQ

Q1: How much energy can the CU310-2PN 6SL3040-1LA01-0AA0 save compared to a fixed-speed motor starter?
In variable-torque applications such as pumps and fans, the SINAMICS S120 CU310-2PN can help restore stable operation when a compatible replacement is required. In constant-torque applications such as conveyors and compressors, savings of 15–25% are typical, depending on load profile and duty cycle.

Q2: Is the CU310-2PN 6SL3040-1LA01-0AA0 compatible with existing SINAMICS S120 infrastructure?
Yes. The CU310-2PN is fully compatible with the SINAMICS S120 component ecosystem, including Booksize Motor Modules, Smart Line Modules, and Active Line Modules. It communicates via PROFINET IO and supports DRIVE-CLiQ for automatic component recognition and parameter synchronization, simplifying integration into existing drive cabinets.

Q3: What is the recommended replacement or upgrade path for older SINAMICS S120 control units?
The CU310-2PN 6SL3040-1AA01-0AA0 and CU310-2DP variants can be directly replaced by the CU310-2PN 6SL3040-1LA01-0AA0 in most applications. Parameter migration is supported via STARTER or TIA Portal Drive software, and the DRIVE-CLiQ topology is preserved, minimizing recommissioning time and production downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every CU310-2PN 6SL3040-1LA01-0AA0 supplied by ZYPLC is tested for firmware integrity, PROFINET communication functionality, DRIVE-CLiQ interface operation, and parameter storage. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged within 5 business days of a confirmed warranty claim, with priority handling for production-critical applications.
