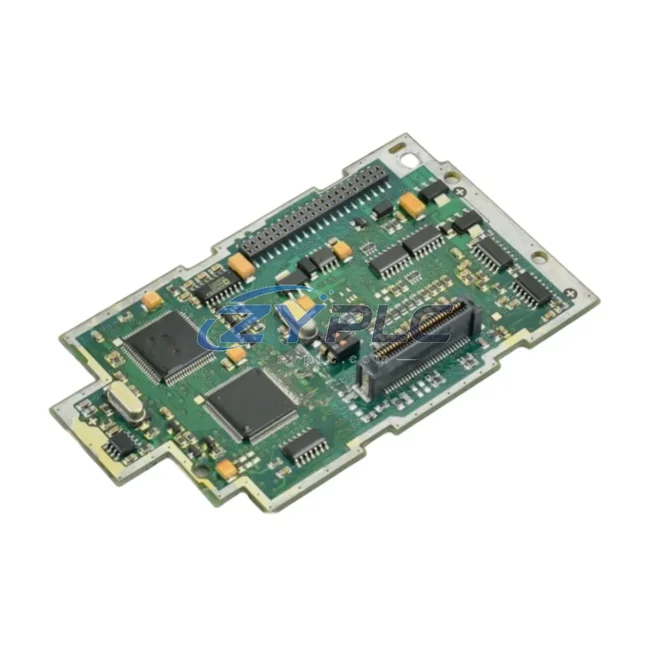

Siemens MC1795L802P01 Motion Control Module for SIMOTION Systems

Siemens MC1795L802P01 Industrial Network Interface for SIMOTION Systems: Precision Data Links Across the Smart Factory Floor

The Siemens MC1795L802P01 is a high-performance PROFINET-enabled Motion Control Module engineered for the SIMOTION platform — Siemens’ dedicated motion control architecture designed for complex, multi-axis automation environments. In modern smart factory deployments, the MC1795L802P01 serves as a critical node in the industrial data chain, bridging field-level motion devices with upper-level control, monitoring, and diagnostic systems. Whether coordinating servo drives, synchronizing multi-axis positioning, or feeding real-time process data into SCADA and MES layers, this module delivers the deterministic communication performance that Industry 4.0 demands.

Built on the PROFINET IRT (Isochronous Real-Time) communication standard, the MC1795L802P01 enables cycle-accurate data exchange between the SIMOTION controller and connected field devices — including Siemens SINAMICS S120 servo drive systems, distributed I/O nodes, and HMI panels. Its network architecture supports seamless integration into existing Siemens TIA Portal engineering environments, allowing engineers to configure, commission, and diagnose the entire motion network from a single software platform without protocol conversion overhead.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated SIMOTION-based production line, the MC1795L802P01 sits at the heart of the motion control data loop. Signal acquisition begins at the sensor and encoder level — absolute encoders, linear scales, and proximity sensors feed position and velocity data into the SIMOTION D445-2 or SIMOTION C240 controller via the DRIVE-CLiQ interface. The MC1795L802P01 then propagates this real-time motion state data upstream over PROFINET to the plant’s SIMATIC S7-1500 PLC, which coordinates broader production sequencing and safety interlocks.

Simultaneously, the SINAMICS S120 drive system — directly coupled to the MC1795L802P01 via PROFINET — receives torque and speed setpoints with isochronous precision, enabling sub-millisecond synchronization across multi-axis gantry, winding, and packaging applications. The SIMOTION Scout engineering tool running on the TIA Portal platform provides full parameter access, oscilloscope-grade trace functions, and online diagnostics without interrupting production cycles.

At the HMI layer, a Siemens SIMATIC HMI TP1500 Comfort Panel connected to the same PROFINET segment visualizes axis positions, drive states, alarm histories, and production counters in real time. Operators can acknowledge faults, trigger homing sequences, and adjust motion profiles directly from the panel — all data flowing through the MC1795L802P01’s network interface without latency spikes or packet loss.

For remote monitoring and predictive maintenance, the PROFINET data stream is aggregated by a Siemens SINEMA Remote Connect gateway or an edge computing node running SIMATIC Edge, forwarding structured motion telemetry to cloud-based SCADA platforms or MES systems. This architecture allows maintenance engineers to monitor bearing temperatures, vibration signatures from SIMOTION-connected IO-Link sensors, and drive energy consumption from any location — enabling condition-based maintenance scheduling that reduces unplanned downtime by up to 40%.

In distributed manufacturing cells, the MC1795L802P01 also interfaces with Siemens ET 200SP remote I/O stations over PROFINET, extending digital and analog I/O capacity to machine peripherals — pneumatic valves, servo grippers, vision system triggers — without adding dedicated fieldbus segments. The result is a unified, single-network topology that simplifies wiring, reduces commissioning time, and provides end-to-end data visibility from field device to enterprise dashboard.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation architectures — legacy PROFIBUS DP segments running alongside newer PROFINET islands, with motion controllers that cannot natively exchange data with plant-level SCADA or ERP systems. The MC1795L802P01 addresses this directly by providing a standards-compliant PROFINET interface that integrates SIMOTION motion data into the broader plant network without requiring proprietary gateways or custom middleware.

Protocol unification is one of the most immediate benefits. Where older motion systems relied on isolated point-to-point connections or RS-485 serial links, the MC1795L802P01 brings SIMOTION into the Ethernet-based PROFINET ecosystem — enabling data from servo axes, cam profiles, and electronic gearboxes to appear as standard PROFINET IO data records accessible to any compliant controller or SCADA client. This eliminates the data silos that prevent production managers from correlating motion performance with overall equipment effectiveness (OEE) metrics.

Remote monitoring becomes straightforward once the MC1795L802P01 is commissioned. Maintenance teams can use Siemens PRONETA network analysis tools to map the PROFINET topology, identify device states, and detect communication faults — all without physical access to the control cabinet. Alarm and diagnostic messages from the SIMOTION controller are forwarded as PROFINET alarm records to the SIMATIC S7-1500 and from there to the plant’s SCADA system, creating a complete, traceable fault history that supports root-cause analysis and regulatory compliance reporting.

Production line transparency improves significantly when motion data flows freely. Cycle time deviations, axis following errors, and drive overload events — previously invisible to plant managers — become real-time KPIs on the SCADA dashboard. This transparency enables rapid response to quality deviations and supports continuous improvement initiatives. System expansion is equally simplified: adding new SIMOTION axes or SINAMICS drive groups to an existing PROFINET segment requires only network address assignment and TIA Portal configuration, with no hardware changes to the MC1795L802P01 or its network infrastructure.

Every MC1795L802P01 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying PROFINET communication establishment, axis configuration integrity, and firmware version compatibility. Stock is maintained for shipment arranged after confirmation, supporting both planned project builds and urgent replacement requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the MC1795L802P01 over PROFINET IRT?
The MC1795L802P01 supports PROFINET IRT (Isochronous Real-Time) with cycle times as low as 250 µs, providing deterministic, jitter-free communication suitable for high-speed multi-axis synchronization. This makes it appropriate for demanding applications such as electronic camming, flying shear, and high-speed pick-and-place where axis synchronization tolerances are measured in microseconds.

Q2: Is the MC1795L802P01 compatible with existing SIMATIC S7 and TIA Portal environments?
Yes. The MC1795L802P01 integrates natively with Siemens TIA Portal V14 and later, as well as STEP 7 V5.x environments via SIMOTION Scout. It is fully compatible with SIMATIC S7-300, S7-400, S7-1200, and S7-1500 controllers operating as PROFINET IO controllers on the same network segment, enabling coordinated motion and logic control without additional protocol conversion hardware.

Q3: How does the MC1795L802P01 support network stability in high-EMI industrial environments?
The module is designed to Siemens’ industrial EMC standards for cabinet-mounted automation equipment. When used with shielded Industrial Ethernet cables (Cat 5e or Cat 6 STP) and Siemens SCALANCE X series managed switches — which support PROFINET-optimized VLAN and QoS configurations — the MC1795L802P01 maintains stable PROFINET communication even in environments with significant electromagnetic interference from variable frequency drives and high-current switching equipment.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the MC1795L802P01?
All MC1795L802P01 units are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional verification including PROFINET interface initialization, firmware integrity check, and communication parameter validation. Units are packaged in anti-static, shock-protected materials to ensure safe transit. Expedited shipping options are available for urgent replacement requirements globally.
