Siemens MPP1500D 6FC5303-1AF30-0AA0 Industrial Network Interface for SINUMERIK Systems

Siemens MPP1500D 6FC5303-1AF30-0AA0: Industrial Data Link for Smart Factory Connectivity

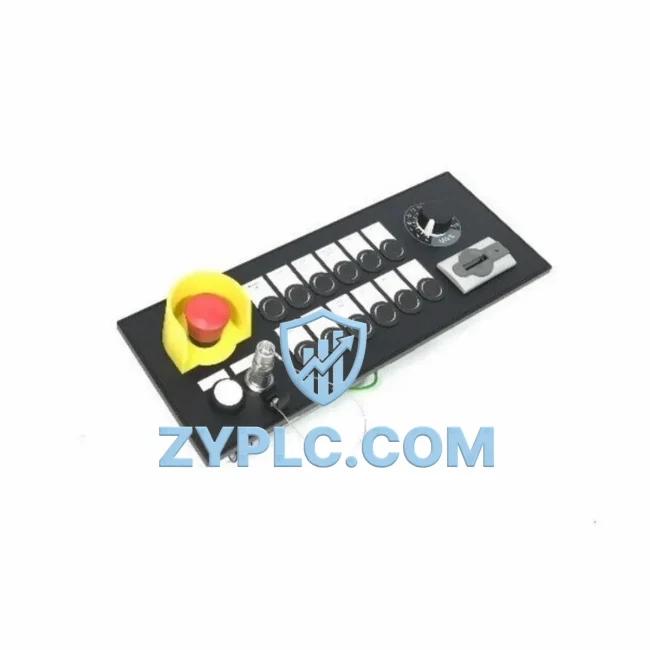

The Siemens MPP1500D (Part No. 6FC5303-1AF30-0AA0) is a high-performance Machine Control Panel designed for seamless integration within SINUMERIK CNC automation architectures. As a critical node in the industrial data chain, this HMI panel bridges field-level devices — including servo drives, spindle motors, and distributed I/O — with upper-level SCADA systems, MES platforms, and cloud-based monitoring environments. Its robust communication backbone enables real-time data acquisition, protocol-transparent transmission, and remote diagnostic access across complex multi-axis machining environments.

In modern smart factory deployments, the MPP1500D 6FC5303-1AF30-0AA0 functions as more than a human-machine interface. It acts as a gateway node connecting the SINUMERIK 840D sl or 828D CNC controller to plant-wide Ethernet/PROFINET networks, enabling bidirectional data flow between the machine tool and supervisory control layers. Signal acquisition from linear encoders, torque sensors, and spindle feedback units is processed locally and transmitted upstream to WinCC SCADA or third-party OPC UA-compatible monitoring systems without latency-induced data loss.

Network Communication Table

Connected Automation Data Flow

The MPP1500D 6FC5303-1AF30-0AA0 sits at the intersection of machine-level control and plant-level intelligence. In a typical SINUMERIK 840D sl installation, the panel interfaces directly with the NCU (Numerical Control Unit) via the DRIVE-CLiQ backbone, enabling high-speed cyclic data exchange with SINAMICS S120 drive modules. Axis position data, spindle load values, and feed override signals are captured at the field level and routed through the panel’s PROFINET port to the plant Ethernet switch — typically a SCALANCE X208 or SCALANCE XC216 managed industrial switch — before reaching the SCADA server.

Distributed I/O expansion is handled through ET 200SP or ET 200M remote I/O stations connected via PROFINET, with the MPP1500D serving as the operator-facing confirmation point for tool change commands, workpiece clamping status, and coolant flow alarms. In multi-machine environments, the panel’s network stack supports simultaneous communication with the SINUMERIK Integrate platform, enabling centralized program management, remote NC parameter adjustment, and production order synchronization from the MES layer.

For drive-level diagnostics, the MPP1500D communicates alarm and fault data from SINAMICS S120 or SINAMICS G120 variable frequency drives back to the WinCC Runtime system, where maintenance engineers can access drive parameter logs, thermal overload histories, and predictive maintenance triggers without physical access to the control cabinet. This closed-loop diagnostic chain — from field sensor through CNC controller, HMI panel, industrial switch, and SCADA server — forms the backbone of transparent, data-driven production management.

In applications requiring protocol bridging between legacy serial devices and modern PROFINET networks, the MPP1500D can operate alongside a SIMATIC S7-1500 PLC or CP 1543-1 communication processor to translate Modbus RTU or RS-485 signals from older sensors and actuators into PROFINET-compatible data frames. This makes the panel a versatile integration point in brownfield factory upgrades where mixed-protocol environments are common.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. The Siemens MPP1500D 6FC5303-1AF30-0AA0 directly addresses this by providing a unified operator interface that aggregates status data from multiple subsystems — CNC axes, hydraulic units, pneumatic actuators, and safety PLCs — into a single, coherent display and control environment.

In facilities running mixed Siemens and third-party equipment, the panel’s OPC UA server capability allows non-Siemens SCADA platforms and edge computing gateways to subscribe to real-time machine data without proprietary middleware. This eliminates the data silos that typically arise when CNC machines, robotic cells, and conveyor systems each operate on separate, non-communicating networks.

Remote monitoring is enabled through the panel’s Ethernet connectivity, which supports VPN-secured remote access via SINEMA Remote Connect or compatible industrial routers. Maintenance teams can access live axis diagnostics, active alarm lists, and NC program execution status from off-site locations, reducing mean time to repair (MTTR) and minimizing unplanned downtime. For production line transparency, the panel’s integration with SINUMERIK Integrate for Production enables real-time OEE (Overall Equipment Effectiveness) tracking, shift-based production reporting, and automated alarm escalation to mobile devices.

System scalability is ensured through the panel’s compatibility with the full SINUMERIK ecosystem. As production capacity grows, additional CNC axes, remote I/O stations, and drive modules can be added to the network without replacing the HMI infrastructure, protecting the capital investment in the control architecture.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens MPP1500D 6FC5303-1AF30-0AA0 support?
The MPP1500D supports PROFINET IO, MPI (Multi-Point Interface), OPC UA, and standard Industrial Ethernet (TCP/IP). It is designed for native integration with SINUMERIK 840D sl and 828D CNC controllers and can communicate with SINAMICS drive systems via DRIVE-CLiQ. For legacy device integration, it can operate alongside CP communication processors to bridge Modbus RTU or PROFIBUS DP networks.

Q2: How does this panel ensure network stability in high-vibration CNC environments?
The MPP1500D is built to Siemens’ industrial-grade mechanical and EMC standards, with a ruggedized enclosure rated for machine tool environments. Its PROFINET communication stack supports media redundancy (MRP) when used with compatible SCALANCE switches, ensuring network continuity even in the event of a single cable or port failure. All units supplied by ZYPLC are tested for communication integrity prior to shipment.

Q3: Can the MPP1500D 6FC5303-1AF30-0AA0 be integrated with third-party SCADA systems?
Yes. The panel’s OPC UA server interface allows third-party SCADA platforms, MES systems, and edge gateways to subscribe to real-time CNC data without requiring Siemens-proprietary software. Standard OPC UA clients from vendors such as Ignition, Wonderware, or FactoryTalk can connect directly to the panel’s data namespace for live monitoring and historical data logging.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this product?
All Siemens MPP1500D 6FC5303-1AF30-0AA0 units supplied by ZYPLC carry a 12-month warranty covering hardware defects and communication failures. Each unit undergoes functional testing — including PROFINET link verification, display integrity check, and keyswitch operation — before dispatch. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-delivery integration support.
