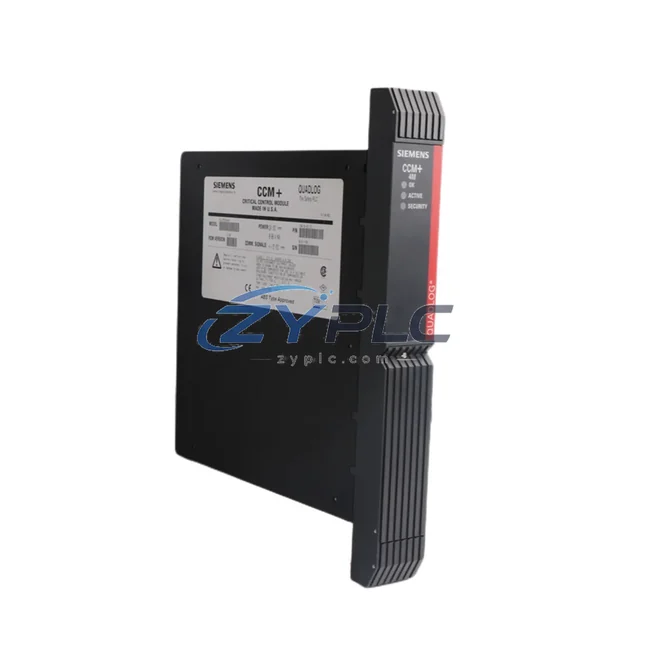

Siemens QLCCM24AAN 16418-41 CCM+ for APOGEE

Siemens QLCCM24AAN 16418-41 CCM+ for APOGEE Control System

The Siemens QLCCM24AAN 16418-41 CCM+ (Critical Control Module Plus) is a purpose-engineered controller designed to serve as the primary decision-making node within the Siemens APOGEE Building Automation System architecture. Unlike standalone controllers, the QLCCM24AAN 16418-41 is conceived as a system-integrated component — one that derives its full operational value from its coordinated role across the control layer, I/O layer, network layer, power layer, human-machine interface layer, and field execution layer of a complete APOGEE installation.

In modern building automation and critical facility management, the integrity of the control architecture depends not on any single device, but on the seamless interoperability of every module within the system hierarchy. The QLCCM24AAN 16418-41 is engineered to fulfill this role with precision, providing deterministic control logic execution, stable field bus communication, and robust signal management across multi-zone HVAC, mechanical, and electrical systems.

Product Specification Table

System Compatibility Notes

The QLCCM24AAN 16418-41 does not operate in isolation. Its value is realized only when it is correctly positioned within a fully coordinated APOGEE system architecture. In a typical deployment, the CCM+ module interfaces upstream with the Siemens APOGEE Insight workstation or an Ethernet-connected BACnet/IP router, receiving supervisory commands and transmitting real-time operational data. Downstream, it communicates via the P1 field bus with a range of field-level devices including the Siemens TEC (Terminal Equipment Controller) series, enabling granular zone-level control across large multi-zone facilities.

On the I/O layer, the QLCCM24AAN 16418-41 is typically paired with Siemens APOGEE expansion I/O modules — such as the MEC (Modular Equipment Controller) I/O boards — to extend its analog input, analog output, binary input, and binary output capacity without requiring additional controller hardware. This modular expansion approach reduces panel footprint, simplifies wiring, and maintains a unified control namespace across the entire system.

Power integrity is a critical consideration in any CCM+ deployment. The QLCCM24AAN 16418-41 is designed to operate from a 24 VAC/VDC supply, and in high-availability installations it is recommended to pair it with a Siemens-compatible UPS module or a dedicated Class 2 transformer with sufficient VA rating to support all connected I/O expansion modules. Proper power sequencing ensures that the CCM+ initializes correctly and maintains communication with the APOGEE field bus without brownout-induced resets.

At the network layer, the QLCCM24AAN 16418-41 supports BACnet MS/TP communication, enabling it to participate in a multi-controller BACnet network alongside other APOGEE MBC (Modular Building Controllers) and MEC units. In larger installations, a BACnet/IP to MS/TP router — such as the Siemens APOGEE PXC series gateway — bridges the field bus segment to the enterprise IP network, allowing the QLCCM24AAN 16418-41 to be monitored and commanded from the APOGEE Insight SCADA layer or third-party BMS platforms via standard BACnet object mapping.

For human-machine interface integration, the CCM+ architecture supports connection to Siemens RWD or RXB series room controllers and operator display terminals, providing local override capability and real-time status visualization at the field level. This eliminates the need for technicians to access the central workstation for routine diagnostics, improving maintenance efficiency and reducing mean time to repair (MTTR) across large facilities.

In redundancy-critical applications — such as data centers, hospitals, or pharmaceutical manufacturing facilities — the QLCCM24AAN 16418-41 can be deployed in a primary/standby configuration alongside a secondary CCM+ or MBC controller, with automatic failover logic programmed at the supervisory layer. This architecture ensures continuous control loop execution even in the event of a primary controller fault, meeting the uptime requirements of mission-critical environments.

Industrial Application Notes

The Siemens QLCCM24AAN 16418-41 finds application across a broad spectrum of industrial and commercial automation environments where layered control architecture, system reliability, and long-term maintainability are paramount.

In commercial HVAC and building automation, the CCM+ module manages air handling units, chiller plants, boiler systems, and variable air volume (VAV) terminal units across multi-floor or multi-building campuses. Its BACnet MS/TP communication capability allows it to integrate seamlessly with third-party HVAC equipment from manufacturers such as Carrier, Trane, or York, provided those devices support standard BACnet object types.

In pharmaceutical and cleanroom manufacturing, the QLCCM24AAN 16418-41 supports GMP-compliant environmental monitoring and control, managing temperature, humidity, differential pressure, and air change rate across classified zones. Its deterministic control execution and audit-trail-compatible integration with APOGEE Insight make it suitable for FDA 21 CFR Part 11 environments where data integrity and change management are regulatory requirements.

In power generation and electrical substation auxiliary systems, the CCM+ module can be deployed to manage HVAC, lighting, and access control within substation control buildings, integrating with the facility’s SCADA system via BACnet/IP gateways. Its robust operating temperature range and DIN rail mounting make it suitable for installation in standard electrical enclosures alongside protection relays and terminal blocks.

In water treatment and pumping stations, the QLCCM24AAN 16418-41 provides reliable control of ventilation, chemical dosing room environmental systems, and auxiliary mechanical equipment, operating continuously in environments with high humidity and variable ambient temperatures.

In mining and metallurgical facilities, the module supports environmental control in underground or surface control rooms, managing ventilation, cooling, and fire suppression auxiliary systems in coordination with the facility’s primary process control infrastructure.

Product Compatibility FAQ

Q1: Is the Siemens QLCCM24AAN 16418-41 compatible with existing APOGEE MEC and MBC installations, and can it be added to a running system without full recommissioning?

A: Yes. The QLCCM24AAN 16418-41 is designed for system integration within the APOGEE architecture, meaning it can be introduced into an existing P1 field bus segment with minimal disruption. The module is recognized by the APOGEE Insight workstation through standard device discovery, and its BACnet objects can be mapped to existing graphic pages and trend logs without requiring a full system recommission. However, it is recommended to perform a controlled commissioning sequence during a scheduled maintenance window to verify address assignments, I/O point mapping, and control program download integrity before returning the system to normal operation.

Q2: What are the key considerations for installing the QLCCM24AAN 16418-41 in a high-availability or redundant control architecture?

A: In redundant deployments, the QLCCM24AAN 16418-41 should be installed with a dedicated 24 VAC/VDC power feed from a UPS-backed Class 2 transformer, isolated from non-critical loads. The P1 bus segment should be properly terminated at both ends to prevent signal reflections that could cause communication errors during failover events. Redundancy logic should be implemented at the APOGEE supervisory layer, with watchdog timers configured to detect primary controller faults and initiate standby activation within the required response time for the application. All I/O expansion modules connected to the CCM+ should be documented in the as-built drawings to facilitate rapid replacement during maintenance.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration and long-term maintenance?

A: The warranty terms confirmed during quotation provided by ZYPLC covers the QLCCM24AAN 16418-41 against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct technical support to diagnose the fault and arrange replacement or repair. For long-term maintenance planning, ZYPLC maintains inventory of APOGEE-compatible modules to support planned replacement cycles and emergency spares programs. Our technical team can assist with system integration questions, compatibility verification, and commissioning guidance to ensure the QLCCM24AAN 16418-41 performs reliably within your specific control architecture throughout its operational life.
