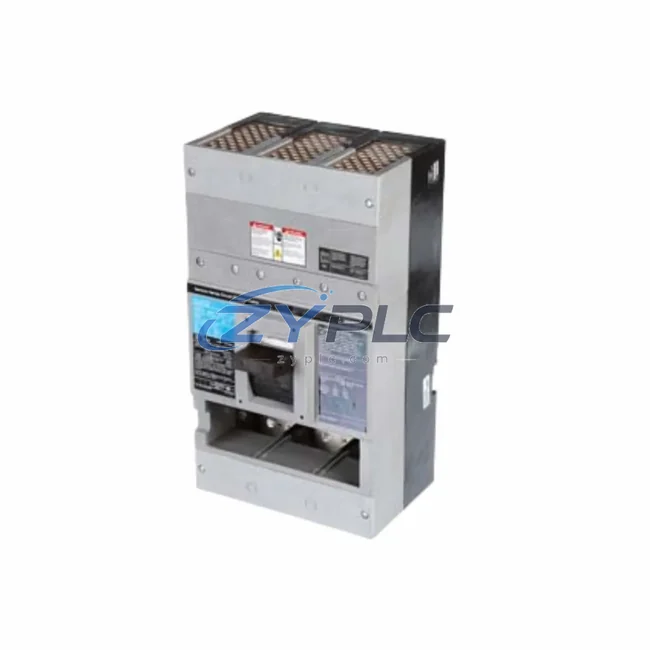

Siemens RD63F200 Circuit Breaker RD6: Precision Power Control for Industrial Efficiency

The Siemens RD63F200 is a high-performance molded case circuit breaker from the Siemens RD6 Series, engineered for demanding industrial power distribution environments where energy efficiency, system reliability, and production continuity are non-negotiable. Rated at 200A within the RD6 frame class, this circuit breaker delivers precise overcurrent protection while minimizing resistive losses across the switching contact — a critical factor in reducing baseline operating load in motor control centers, distribution panels, and automation cabinets.

In modern industrial facilities, uncontrolled energy draw from poorly protected or aging circuit protection devices contributes significantly to wasted operating-hours. The RD63F200 addresses this by maintaining low contact resistance across its full rated current range, ensuring that the thermal energy dissipated within the breaker itself remains minimal — directly supporting plant-wide maintenance planning targets.

Product Specification Table

System Compatibility and Application

The RD63F200 does not operate in isolation — it is a foundational protection component within a broader industrial automation system. In a typical production line, the breaker sits upstream of a Siemens SINAMICS G120 variable frequency drive, which regulates motor speed to match actual load demand rather than running at fixed full speed. This combination — reliable upstream protection paired with dynamic drive control — is one of the most effective strategies for reducing motor load by 20–50% in pump, fan, and conveyor applications.

Downstream of the VFD, Siemens SIMOTICS low-voltage motors benefit from the clean, protected power supply that the RD63F200 ensures. Any transient fault or overcurrent event that could damage the drive’s IGBT modules is intercepted at the breaker level, preventing costly downtime and protecting the efficiency gains achieved through variable-speed operation.

For servo-driven axes — common in packaging, CNC, and assembly automation — the RD63F200 provides branch circuit protection for Siemens SINAMICS S120 servo drive power supply modules. Servo systems are particularly sensitive to power quality; a properly rated circuit breaker ensures that nuisance tripping does not interrupt precision motion sequences, which would otherwise cause production rhythm disruption and scrap generation.

At the control layer, Siemens SIMATIC S7-1500 PLC systems coordinate energy dispatch across the production line. When integrated with a Siemens SENTRON PAC3200 power monitoring device, the control architecture gains real-time visibility into current draw, power factor, and harmonic distortion at each distribution node — data that feeds directly into maintenance planning algorithms running on the PLC. The RD63F200, as a metered branch circuit breaker, can be paired with these monitoring devices to create a complete energy audit trail from the main incomer to individual machine loads.

I/O expansion modules such as the Siemens ET 200SP distributed I/O allow the SIMATIC controller to monitor breaker auxiliary contacts remotely, enabling automated fault logging and predictive maintenance scheduling without requiring manual panel inspections. This reduces maintenance labor hours and ensures that energy-consuming equipment is never left running in a degraded state.

For facilities implementing Siemens SIMATIC WinCC SCADA or TIA Portal-based HMI visualization, breaker status and load current data can be surfaced on operator dashboards, giving production managers the insight needed to identify unplanned downtime patterns — such as machines left energized during shift breaks — and take corrective action in real time.

Communication-wise, the RD63F200 can be integrated into PROFIBUS DP or PROFINET network architectures via Siemens communication modules, enabling centralized maintenance planning from the plant control room. This connectivity is essential for facilities pursuing ISO 50001 maintenance planning certification, where metered, auditable energy data at the circuit level is a compliance requirement.

Maintenance and Replacement Notes

Consider a mid-scale automotive parts manufacturing plant running three shifts. The facility operates 40+ motor-driven machines — conveyors, hydraulic presses, CNC machining centers, and robotic welding cells. Without proper branch circuit protection and monitoring, energy managers have no visibility into which circuits are drawing abnormal load due to mechanical wear, misalignment, or overloading.

By deploying the Siemens RD63F200 at each motor branch circuit — particularly those feeding 132kW to 200kW loads — the plant gains a reliable protection baseline. When paired with SENTRON power monitoring at the panel level, maintenance teams can detect rising current trends that indicate bearing wear or lubrication failure weeks before a catastrophic motor failure occurs. This predictive maintenance capability directly reduces unplanned downtime, which in energy terms means avoiding the high inrush current spikes associated with emergency restarts and cold-start motor sequences.

In conveyor and material handling systems, the RD63F200 protects VFD-controlled motors that are programmed to ramp up and down based on production demand signals from the SIMATIC PLC. This demand-responsive operation — only possible when the upstream protection is reliable and correctly rated — can reduce conveyor operating load by 30–40% compared to fixed-speed operation with traditional DOL starters.

For facilities with peak demand tariff structures, the ability to shed non-critical loads quickly and safely — using the breaker’s remote trip capability — allows energy managers to avoid costly demand charge penalties during grid peak periods. The RD63F200’s robust mechanical design ensures that frequent switching operations do not degrade contact integrity, maintaining protection reliability throughout the breaker’s service life.

Every unit shipped undergoes full functional testing before dispatch, verifying trip characteristics, contact resistance, and mechanical operation. Combined with a warranty terms confirmed during quotation and reliable inventory availability, the RD63F200 supports both planned maintenance schedules and emergency replacement scenarios — minimizing the risk of extended production downtime due to protection device failure.

Product Sourcing FAQ

Q1: How does the Siemens RD63F200 contribute to operational stability in a VFD-driven motor circuit?
The RD63F200 provides low-impedance branch circuit protection that minimizes resistive energy losses at the breaker itself. More importantly, it enables reliable operation of upstream variable frequency drives by protecting against fault currents that could damage drive electronics. A functioning VFD running a motor at optimized speed delivers far greater operational stability than a fixed-speed motor — so protecting the VFD is protecting your energy efficiency investment.

Q2: Is the RD63F200 compatible with Siemens SINAMICS and SIMOTICS systems?
Yes. The RD63F200 is part of the Siemens RD6 series, which is designed for compatibility with Siemens SENTRON distribution systems, SINAMICS drive families, and SIMOTICS motor ranges. It meets the coordination requirements for Type 2 coordination with Siemens contactors and overload relays in motor starter combinations.

Q3: What is the recommended replacement process if an RD63F200 trips and cannot be reset?
First, identify and clear the fault condition causing the overcurrent or short circuit. Inspect the load circuit for wiring faults, motor insulation breakdown, or mechanical jamming. Once the fault is cleared, attempt a manual reset. If the breaker does not reset or shows signs of thermal damage (discoloration, deformation), replace it immediately. All our RD63F200 units are tested before shipment and covered by a warranty terms confirmed during quotation, ensuring you receive a fully functional replacement unit.

Q4: How does your testing and warranty process work?
Every Siemens RD63F200 unit we supply undergoes pre-shipment functional testing covering trip response, contact resistance measurement, and mechanical operation verification. Units that do not meet Siemens specification tolerances are rejected before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our team maintains ready stock to support both planned procurement and urgent replacement needs, with fast dispatch to minimize your production downtime exposure.
