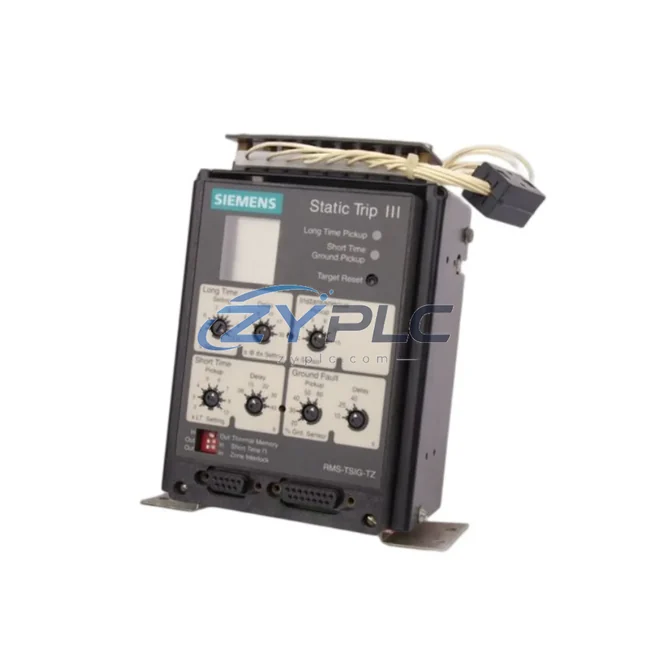

Siemens RMS-TSIG-TZ-C Static Trip Module

Siemens RMS-TSIG-TZ-C Static Trip Module: Precision Overcurrent Control for RMS Automation

The Siemens RMS-TSIG-TZ-C is a high-performance static trip module engineered for integration with Siemens RMS series molded case circuit breakers (MCCBs). Designed for demanding industrial power distribution environments, this trip unit delivers precise overcurrent, short-circuit, and ground fault protection while contributing directly to energy efficiency across production lines. By enabling accurate fault detection and rapid disconnection, the RMS-TSIG-TZ-C minimizes unnecessary energy dissipation, reduces thermal stress on downstream equipment, and supports predictive maintenance strategies that lower total cost of ownership.

In modern manufacturing facilities where energy costs and equipment uptime are critical KPIs, the RMS-TSIG-TZ-C plays a central role in the protection and optimization layer of the electrical architecture. Its solid-state trip mechanism eliminates the mechanical wear associated with thermal-magnetic alternatives, ensuring consistent response characteristics over the full service life of the breaker assembly. This reliability translates directly into reduced unplanned downtime, improved production line rhythm, and lower maintenance expenditure.

Product Specification Table

System Compatibility and Application

The RMS-TSIG-TZ-C does not operate in isolation — it is most effective when deployed as part of a coordinated industrial automation system. In a typical industrial facility, the trip module sits at the protection layer of the power distribution system, working in concert with upstream and downstream components to ensure that energy flows efficiently and faults are contained before they cascade.

At the drive level, Siemens SINAMICS G120 and SINAMICS S120 variable frequency drives regulate motor speed and torque in response to actual load demand, dramatically reducing energy consumption during partial-load operation. The RMS-TSIG-TZ-C protects the feeder circuits supplying these drives, ensuring that a downstream fault does not propagate and trip an entire motor control center. When paired with Siemens SENTRON PAC3200 or PAC4200 power monitoring devices, operators gain real-time visibility into current draw, power factor, and harmonic distortion — data that informs both maintenance planning decisions and predictive maintenance scheduling.

On the control side, Siemens SIMATIC S7-1500 PLCs coordinate production sequences and communicate fault status via PROFINET, enabling the control system to respond intelligently to trip events rather than simply halting the line. The S7-1500’s integrated maintenance planning functions can log trip events alongside production data, correlating fault frequency with energy consumption trends. For smaller installations, the SIMATIC S7-1200 provides comparable integration capability in a more compact form factor, making the RMS-TSIG-TZ-C equally relevant in distributed control architectures.

At the human-machine interface layer, Siemens SIMATIC HMI TP700 or TP1200 Comfort panels display real-time breaker status, trip history, and energy consumption data, giving line operators immediate situational awareness without requiring access to the switchgear room. This visibility reduces the mean time to respond (MTTR) when a trip event occurs, shortening production interruptions and preserving line throughput.

For communication and data integration, the RMS-TSIG-TZ-C-equipped breaker assembly can be monitored via Siemens SENTRON communication modules supporting MODBUS TCP or PROFIBUS DP, feeding data into SCADA systems or Siemens SIMATIC WinCC for centralized maintenance planning. The SIMATIC ET 200SP distributed I/O system further extends monitoring capability to remote panel locations, ensuring that energy data from every feeder circuit is captured and available for analysis.

In motor control center (MCC) applications, the RMS-TSIG-TZ-C is frequently specified alongside Siemens 3RV2 motor protection circuit breakers and 3RT2 contactors, forming a coordinated protection and switching assembly that covers both short-circuit and overload scenarios. This combination ensures that motor feeders are protected across the full fault current range while maintaining selectivity — only the faulted circuit is isolated, leaving the rest of the production line unaffected.

Maintenance and Replacement Notes

In practice, the energy efficiency contribution of the RMS-TSIG-TZ-C is realized through several interconnected mechanisms. First, its precise trip thresholds — adjustable for long-time, short-time, instantaneous, and ground fault protection — allow engineers to set protection curves that closely match the actual thermal and electrical characteristics of the protected equipment. This precision eliminates the over-protection margin that is often built into less sophisticated trip units, reducing nuisance tripping and the associated production losses.

Second, the solid-state trip mechanism responds faster than equivalent thermal-magnetic devices, limiting the duration of fault current flow and therefore the energy dissipated as heat during a fault event. In facilities with high fault current levels, this faster response can meaningfully reduce the thermal stress imposed on busbars, cable insulation, and connected equipment — extending service life and reducing the frequency of capital replacement.

Third, the ground fault detection function (the “G” in TZ-C) identifies leakage currents that represent both a safety hazard and a source of unplanned downtime. Undetected ground faults can persist for extended periods in systems without sensitive ground fault protection, consuming energy and degrading insulation. The RMS-TSIG-TZ-C’s ground fault trip function eliminates this waste by detecting and isolating ground faults before they become sustained energy losses.

From a maintenance perspective, the static trip module’s self-diagnostic capability and consistent trip characteristics simplify the testing and commissioning process. Pre-shipment testing at our facility verifies trip function across the full adjustment range, and the warranty terms confirmed during quotation covers both the trip module and its interface with the host breaker. Scheduled maintenance intervals can be extended compared to thermal-magnetic alternatives, reducing labor costs and the risk of maintenance-induced faults.

In high-cycle applications such as press lines, injection molding machines, and automated assembly systems, the RMS-TSIG-TZ-C’s consistent performance across thousands of operating cycles ensures that protection settings remain accurate without recalibration. This stability supports the predictive maintenance programs that modern industrial facilities rely on to maximize equipment utilization and minimize unplanned downtime.

Product Sourcing FAQ

Q1: How does the RMS-TSIG-TZ-C contribute to operational stability in an industrial facility?
The RMS-TSIG-TZ-C contributes to operational stability by enabling precise fault isolation that prevents energy-wasting fault currents from persisting, by detecting ground faults that represent ongoing leakage losses, and by supporting faster fault clearance that reduces heat dissipation in distribution equipment. When integrated with power monitoring devices such as the Siemens SENTRON PAC3200, the trip data can be correlated with energy consumption trends to identify inefficiencies in the distribution system.

Q2: Is the RMS-TSIG-TZ-C compatible with existing Siemens RMS series breakers already installed in my facility?
Yes. The RMS-TSIG-TZ-C is designed specifically for Siemens RMS series MCCBs and is a direct replacement for the original trip module. No breaker frame modification is required. If you are upgrading from a thermal-magnetic trip unit, please confirm the breaker frame rating and pole configuration with our technical team before ordering to ensure full compatibility.

Q3: What is the testing and quality assurance process before shipment?
Every RMS-TSIG-TZ-C unit undergoes pre-shipment functional testing that verifies trip response across the long-time, short-time, instantaneous, and ground fault protection functions. Test results are documented and available upon request. The unit is covered by a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q4: Can the RMS-TSIG-TZ-C be integrated into a PROFINET or MODBUS-based maintenance planning system?
The trip module itself does not include a communication interface, but when installed in an RMS series breaker equipped with a Siemens SENTRON communication module, trip status and energy data can be transmitted via MODBUS TCP or PROFIBUS DP to a central SCADA or maintenance planning platform such as Siemens SIMATIC WinCC. This integration enables remote monitoring of trip events, energy consumption, and fault history without requiring physical access to the switchgear panel.
