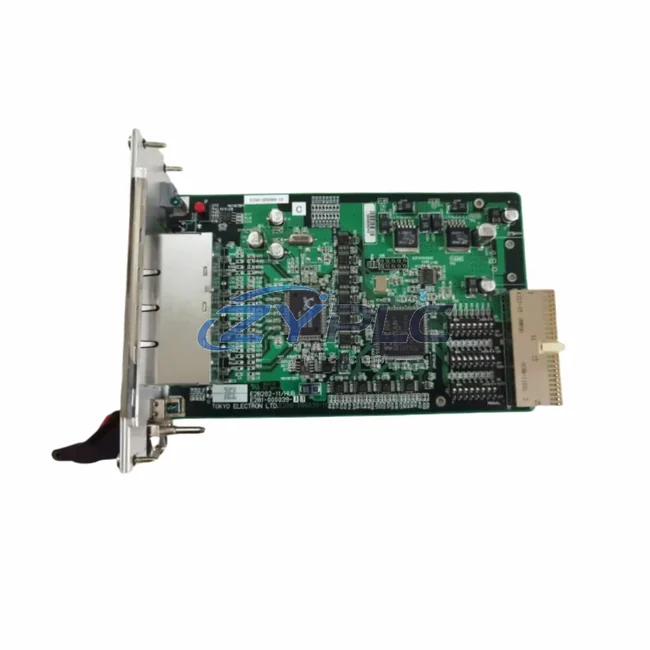

TEL E2B202-11/HVB E281-000039-13 Control Card for HVB Series Systems

TEL E2B202-11/HVB E281-000039-13: Industrial Data Link for HVB Series Smart Factory Systems

The TEL E2B202-11/HVB (E281-000039-13) is a precision-engineered Control Card designed for Tokyo Electron (TEL) HVB Series semiconductor processing equipment. In modern smart factory environments, this card serves as the critical communication backbone between field-level devices and upper-level control systems — enabling real-time data exchange, protocol-transparent signal routing, and continuous process visibility across the entire production network.

As semiconductor fabs and advanced manufacturing sites push toward full Industry 4.0 integration, the demand for reliable, low-latency control interfaces has never been greater. The TEL E2B202-11/HVB fulfills this role by bridging the HVB Series equipment controller with upstream SCADA platforms, HMI terminals, and MES data layers — ensuring that every process variable, alarm state, and diagnostic signal is captured, transmitted, and acted upon without interruption.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated HVB Series process line, the TEL E2B202-11/HVB sits at the heart of the equipment’s internal communication architecture. Signal acquisition begins at the sensor layer — thermocouples, pressure transducers, and flow controllers feed real-time process data into the HVB equipment controller. The E2B202-11/HVB Control Card manages the internal data bus, coordinating signal routing between the process chamber, the power supply module, and the equipment’s local HMI panel.

From the HVB controller, process data is forwarded upstream through a TEL-compatible SCADA gateway — often a dedicated industrial PC running proprietary TEL software or a third-party OPC-UA server — which aggregates data from multiple HVB units across the fab floor. Operators monitoring the line from a Siemens WinCC or Wonderware InTouch HMI terminal receive live chamber status, recipe execution progress, and alarm notifications in real time.

For facilities running mixed-vendor environments, the E2B202-11/HVB integrates alongside Siemens S7-300/S7-400 PLC systems via serial communication bridges, allowing the TEL equipment to participate in plant-wide automation sequences managed by a central PLC controller. Remote I/O modules — such as Beckhoff EtherCAT terminals or Phoenix Contact Axioline F remote I/O — extend digital and analog signal collection from auxiliary equipment in the process bay, feeding additional data streams into the same SCADA layer.

Drive-level integration is equally important: Yaskawa Varispeed or Mitsubishi FR-A800 Series variable frequency drives controlling pump motors and exhaust fans within the HVB process system communicate their speed, torque, and fault status through dedicated serial links, with the E2B202-11/HVB Control Card ensuring that drive feedback is synchronized with the equipment’s process state machine. This prevents recipe execution errors caused by drive faults going undetected at the controller level.

At the edge, an industrial edge gateway — such as a Moxa UC-8100 or Advantech WISE-5000 — collects aggregated data from the SCADA layer and pushes it to cloud-based MES or ERP platforms, enabling production managers to track equipment utilization, yield rates, and maintenance schedules from any location. The entire data chain — from the E2B202-11/HVB’s internal bus management to the cloud dashboard — operates with sub-second latency, supporting the real-time decision-making demands of high-throughput semiconductor manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in semiconductor fab automation is protocol fragmentation. TEL HVB Series equipment uses a proprietary internal communication architecture that does not natively expose process data to standard industrial protocols such as Modbus TCP, PROFIBUS, or EtherNet/IP. Without a properly functioning TEL E2B202-11/HVB Control Card, the equipment controller loses its ability to manage internal data routing — effectively creating a data island that cannot be monitored, diagnosed, or integrated into the broader factory network.

Replacing or restoring this card eliminates the data isolation problem at its source. Once the E2B202-11/HVB is operational, the HVB equipment controller can resume full communication with upstream SCADA systems, enabling production line transparency — every process step, alarm event, and equipment state is visible to operators and engineers in real time. This is particularly critical in cleanroom environments where undetected equipment faults can result in wafer loss, process excursions, and costly downtime.

For facilities managing multiple TEL HVB units across different process bays, the E2B202-11/HVB also supports system scalability. As production capacity expands, additional HVB equipment can be integrated into the existing SCADA/MES architecture without redesigning the communication infrastructure — provided each unit is equipped with a functioning E2B202-11/HVB Control Card. This modular approach to network expansion reduces integration costs and accelerates time-to-production for new equipment installations.

Remote diagnostics represent another key benefit. With the E2B202-11/HVB restoring full controller communication, maintenance engineers can access equipment diagnostic data remotely — reviewing error logs, process histories, and alarm records without requiring physical access to the equipment. This capability is especially valuable for fabs operating 24/7 shifts, where rapid fault identification and resolution directly impacts overall equipment effectiveness (OEE).

Every TEL E2B202-11/HVB (E281-000039-13) unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication integrity, signal routing, and board-level electrical performance before dispatch. Units are shipped with full traceability documentation and are backed by a , giving procurement and maintenance teams confidence in both product quality and post-sale support.

Industrial Connectivity FAQ

Q1: What communication protocols does the TEL E2B202-11/HVB support?
The E2B202-11/HVB operates on TEL’s proprietary HVB Series internal bus architecture, supporting RS-232C and RS-422 serial interfaces for equipment-level communication. Integration with standard industrial protocols such as Modbus TCP or OPC-UA is achieved through upstream gateway devices connected to the HVB equipment controller.

Q2: Is the TEL E2B202-11/HVB compatible with SCADA and HMI systems?
Yes. When installed in a functioning HVB Series controller, the E2B202-11/HVB restores full data output from the equipment, which can then be accessed by SCADA platforms such as Siemens WinCC, Wonderware, or iFIX via OPC servers or serial communication bridges. HMI terminals connected to the HVB controller also regain full process visibility.

Q3: How is network stability ensured during continuous production?
The E2B202-11/HVB is designed for 24/7 industrial operation within the HVB Series equipment environment. Each unit supplied by ZYPLC is pre-tested for communication stability and signal integrity. The card’s backplane integration design minimizes connection-related failures, and the covers any performance issues arising during normal operation.

Q4: What is the lead time and warranty coverage for the TEL E2B202-11/HVB?
ZYPLC maintains RFQ-based sourcing support of the TEL E2B202-11/HVB (E281-000039-13). Orders are processed and shipped within 1–3 business days via DHL or FedEx International Express. All units are covered by a from the date of shipment, with full technical support available throughout the warranty period.
