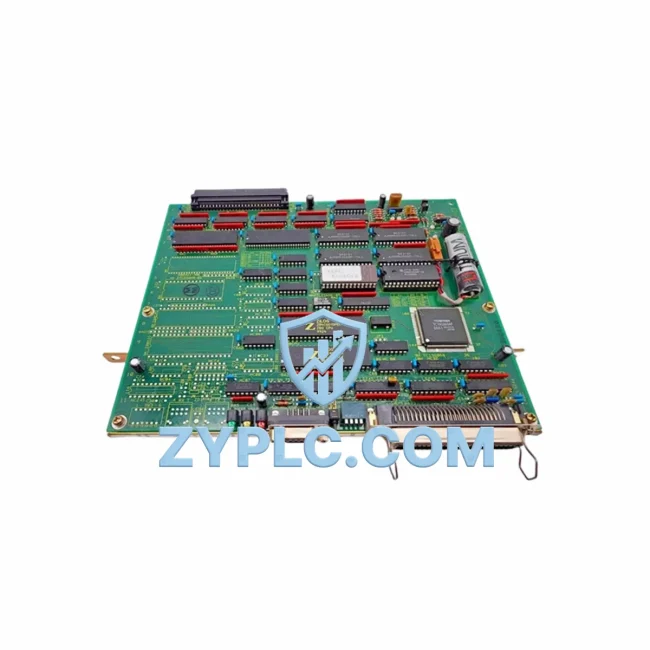

Toshiba V2PCAP01-H1932131 Industrial Network Interface for S10PC Systems

Toshiba V2PCAP01-H1932131 Industrial Network Interface for S10PC Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The Toshiba V2PCAP01-H1932131 is a dedicated communication and network interface board engineered for the Toshiba S10PC PLC series, delivering reliable protocol conversion, real-time data transmission, and robust connectivity across every layer of the industrial automation hierarchy. From signal acquisition at the sensor level to data visualization on SCADA dashboards, this module ensures that no data is lost, delayed, or isolated.

The V2PCAP01-H1932131 slots directly into the S10PC backplane, extending the controller’s native communication capabilities to support Ethernet-based industrial protocols. This makes it an essential component for facilities transitioning from legacy fieldbus architectures to modern, IP-based industrial networks. Whether your plant runs a distributed I/O topology, a multi-PLC ring network, or a centralized SCADA architecture, this board provides the communication bridge that keeps every node synchronized.

Network Communication Table

Connected Automation Data Flow

The industrial data chain begins at the field level, where sensors, encoders, and actuators feed raw signals into the Toshiba S10PC CPU module (V2CPU). The V2PCAP01-H1932131 communication board then packages this process data into structured Ethernet frames, transmitting it upstream to supervisory systems without latency spikes or packet loss. In a typical plant layout, the board operates alongside the Toshiba V2IO digital I/O expansion module, which aggregates discrete signals from proximity switches, limit switches, and solenoid valves before routing them through the S10PC backplane to the network interface.

For analog process variables — temperature, pressure, flow rate — the Toshiba V2AIO analog I/O module converts 4–20 mA and 0–10 V signals into digital values that the V2PCAP01-H1932131 transmits to the SCADA server in real time. This continuous data stream enables operators to monitor process trends, set alarm thresholds, and trigger automated responses without manual intervention. When integrated with a Toshiba V2DP PROFIBUS communication module, the system can simultaneously manage fieldbus devices — variable frequency drives, smart sensors, and remote I/O stations — while maintaining Ethernet connectivity to the upper network layer.

At the drive level, Toshiba VFAS3 series variable frequency drives communicate process feedback — motor speed, torque, fault codes — back through the network to the S10PC controller. The V2PCAP01-H1932131 ensures this bidirectional data exchange is stable and deterministic, supporting closed-loop control strategies that depend on sub-second response times. On the HMI side, Toshiba V-Series HMI panels connect directly over Ethernet to the S10PC network, pulling live tag values from the controller and displaying them on operator screens. Alarm acknowledgment, setpoint changes, and recipe downloads all travel through the same communication path managed by the V2PCAP01-H1932131.

For remote monitoring and diagnostics, the board’s Ethernet port connects to an industrial edge gateway — such as a Moxa MGate or similar device — which aggregates data from multiple S10PC controllers across the plant floor and forwards it to cloud-based MES or ERP platforms. The Toshiba S10PC power supply module (V2PSU) provides stable 24 VDC rail power to the entire backplane assembly, ensuring the communication board operates within its rated voltage envelope even during load transients. This end-to-end architecture — from field sensor through PLC, network interface, HMI, SCADA, and edge gateway — represents the complete industrial data link that the V2PCAP01-H1932131 anchors.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: controllers, drives, and sensors that speak different protocols and cannot share information without manual intervention. The Toshiba V2PCAP01-H1932131 directly addresses this problem by acting as a protocol gateway between the S10PC’s native T-Link bus and standard Ethernet-based industrial networks. Facilities that previously relied on serial RS-232/RS-485 connections for PLC-to-SCADA communication can upgrade to Ethernet without replacing the entire controller platform — the V2PCAP01-H1932131 slots into the existing S10PC chassis and immediately extends network reach.

Production line transparency is another key benefit. With the V2PCAP01-H1932131 in place, every I/O point, every drive parameter, and every alarm event is visible to the SCADA system in real time. Maintenance engineers can perform remote diagnostics — checking module status, reading fault registers, and verifying communication health — without walking the plant floor. This capability is especially valuable in hazardous environments or large facilities where physical access to control panels is time-consuming and disruptive.

System expansion is equally straightforward. As production capacity grows, additional S10PC racks with V2IO and V2AIO modules can be added to the network without reconfiguring the communication architecture. The V2PCAP01-H1932131 supports peer-to-peer communication between multiple S10PC controllers, enabling coordinated multi-zone control strategies that would otherwise require a dedicated communication PLC. Every unit shipped undergoes pre-delivery functional testing to verify Ethernet link establishment, protocol handshake, and data throughput — ensuring that the module performs to specification from the moment it is installed.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the V2PCAP01-H1932131 on an industrial Ethernet network?
Under normal network conditions with a 100 Mbps switch infrastructure, the V2PCAP01-H1932131 achieves cycle times in the range of 10–50 ms for standard SCADA polling intervals. For time-critical applications, network segmentation and QoS configuration on the Ethernet switch are recommended to minimize jitter.

Q2: Is the V2PCAP01-H1932131 compatible with third-party SCADA and HMI systems?
Yes. The board supports Modbus TCP in gateway mode, which is natively supported by the majority of industrial SCADA platforms including Wonderware, iFIX, Citect, and WinCC. For Toshiba-native T-Link protocol, dedicated Toshiba SCADA drivers are available. Compatibility testing with your specific SCADA version is recommended before deployment.

Q3: How does the module maintain network stability in electrically noisy industrial environments?
The V2PCAP01-H1932131 is designed to meet industrial EMC standards, with the S10PC backplane providing shielded signal routing. For installations near high-power drives or welding equipment, the use of shielded Ethernet cables (STP Cat5e or Cat6) and proper grounding of the control panel are strongly advised to maintain link stability.

Q4: What warranty and support terms apply to the V2PCAP01-H1932131?
All units are covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed on every module to verify communication integrity. Replacement or repair is provided for any unit that fails under normal operating conditions within the warranty period. Stock availability is maintained for fast dispatch via DHL or FedEx international express.
