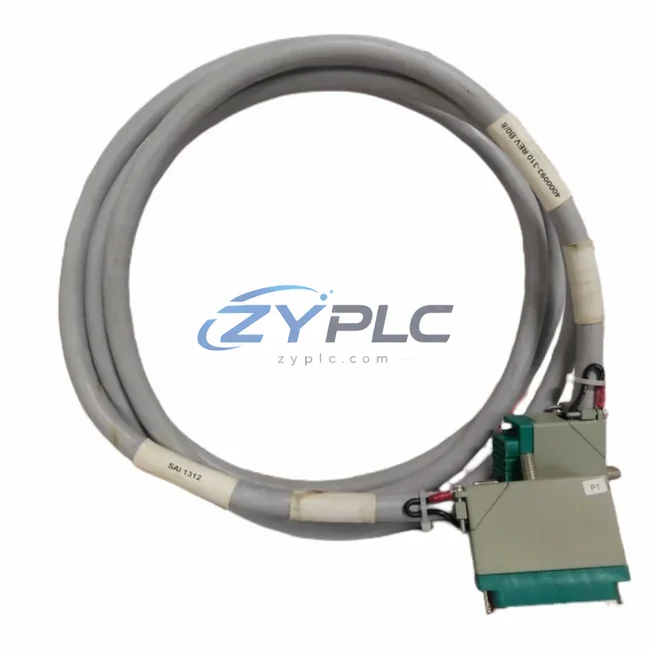

TRICONEX 4000093-310 Input Terminal Cable for Tricon

TRICONEX 4000093-310 Input Terminal Cable for Tricon

In a fully integrated safety instrumented system, every physical connection between field devices and the control platform determines the reliability, diagnostic coverage, and long-term maintainability of the entire architecture. The TRICONEX 4000093-310 Input Terminal Cable Assembly is engineered specifically for use within the Tricon Triple Modular Redundant (TMR) safety system platform, providing a structured, system-native wiring interface between field-side input signals and the Tricon I/O modules housed within the main chassis. Rather than treating this component as a passive cable, system architects should recognize it as a critical element of signal integrity, installation standardization, and lifecycle maintenance strategy across the full control hierarchy.

Product Specification Table

System Compatibility Notes

The TRICONEX 4000093-310 does not operate in isolation — it is a structured interface component within a layered TMR control architecture. Understanding its role requires examining how it connects across multiple system layers.

At the I/O layer, the 4000093-310 cable assembly terminates field input signals directly into Tricon digital or analog input modules such as the TRICONEX 3501E Digital Input Module or the TRICONEX 3703E Analog Input Module. These modules are housed within the Tricon main chassis backplane, where the TMR architecture processes each input signal across three independent processing legs simultaneously. The cable assembly ensures that field wiring is routed cleanly and consistently to the correct module termination points, reducing the risk of miswiring during commissioning or maintenance.

At the control layer, the input signals carried through the 4000093-310 are processed by the Tricon Main Processor Module — typically the TRICONEX 4351B or 4352A Main Processor — which executes the safety logic programmed via TriStation 1131. The processor evaluates voted input states from all three legs and drives output decisions accordingly. A correctly installed terminal cable assembly ensures that the voted input data reaching the processor is free from wiring-induced noise or cross-termination errors.

At the power layer, the Tricon chassis relies on redundant power supply modules such as the TRICONEX 8312 Power Supply Module to maintain continuous operation across all I/O slots. The 4000093-310 cable assembly, by enabling clean field-to-module connections, supports the overall power distribution integrity of the chassis by preventing ground loops or impedance mismatches that could affect module performance.

At the network and communication layer, field input data collected through the 4000093-310 is ultimately transmitted to supervisory systems via the Tricon Communication Module — such as the TRICONEX 4119A TCM (Tricon Communication Module) — which supports Modbus, OPC, and peer-to-peer Tricon network protocols. Accurate field signal termination at the cable assembly level is foundational to the data quality that reaches SCADA and DCS platforms upstream.

At the HMI and engineering layer, operators and engineers interact with the system through TriStation 1131 workstations or integrated HMI panels. During commissioning, the 4000093-310 cable assembly simplifies I/O loop checking by providing labeled, accessible termination points that correspond directly to the I/O module channel assignments configured in the TriStation project. This reduces loop check time and minimizes the risk of channel mapping errors during startup.

For systems requiring redundancy and fault tolerance, the Tricon TMR architecture supported by components like the 4000093-310 ensures that a single wiring fault or module failure does not interrupt system operation. When paired with redundant I/O modules and the TRICONEX 3625 Termination Panel or equivalent marshalling hardware, the cable assembly contributes to a fully fault-tolerant signal path from field device to safety logic execution.

Industrial Application Notes

The TRICONEX 4000093-310 Input Terminal Cable Assembly is deployed across a wide range of safety-critical and process-critical industries where the Tricon TMR platform is the preferred safety instrumented system (SIS) controller.

In oil and gas processing and petrochemical plants, the Tricon system is widely used for emergency shutdown (ESD) and burner management system (BMS) applications. The 4000093-310 cable assembly provides the structured field wiring interface required to connect pressure transmitters, temperature sensors, and valve position switches to the Tricon I/O modules that monitor and control critical process variables. Reliable termination at this level is essential for maintaining SIL 2 and SIL 3 functional safety ratings across the entire SIS loop.

In power generation and electrical utilities, Tricon-based safety systems protect turbine control, generator protection, and substation automation applications. The 4000093-310 ensures that high-density input signal wiring from field junction boxes is organized and correctly terminated within the control cabinet, supporting the fast scan times and high-availability requirements of power plant safety systems.

In water and wastewater treatment facilities, where continuous process monitoring is required across geographically distributed pump stations and treatment units, the Tricon platform provides the reliability needed for long-term unattended operation. The 4000093-310 cable assembly simplifies field wiring standardization across multiple control panels, reducing installation variability and supporting consistent maintenance practices across the plant network.

In mining and metals processing, where vibration, dust, and temperature extremes challenge control system reliability, the structured termination provided by the 4000093-310 reduces the risk of intermittent connections that could trigger spurious trips or missed alarms in conveyor control, crusher monitoring, or smelter process safety systems.

In pharmaceutical and fine chemical manufacturing, where process validation and documentation are regulatory requirements, the 4000093-310 supports clean, traceable wiring installations that simplify IQ/OQ/PQ validation activities and reduce the documentation burden during system audits.

Product Compatibility FAQ

Q1: Is the TRICONEX 4000093-310 compatible with all Tricon chassis versions, and can it be used in both new installations and system upgrades?
The 4000093-310 Input Terminal Cable Assembly is designed for use with the Tricon TMR platform and is compatible with standard Tricon I/O module termination interfaces across Tricon v9, v10, and v11 chassis generations. For system upgrade projects where existing I/O modules are being retained but field wiring is being reorganized, the 4000093-310 provides a direct replacement or supplementary termination solution without requiring changes to the I/O module configuration in TriStation 1131. Always verify the specific module slot and channel count against your project’s I/O list before installation.

Q2: How does the 4000093-310 support long-term maintenance efficiency in a TMR safety system architecture?
One of the primary maintenance advantages of using system-native terminal cable assemblies like the 4000093-310 is the elimination of field-fabricated wiring that may vary in quality, labeling, and routing between installations. By standardizing on OEM cable assemblies, maintenance teams can perform module replacements, loop checks, and fault isolation more efficiently, as the termination points are consistent and predictable. This is particularly valuable in facilities with high technician turnover or where maintenance is performed by rotating shift teams rather than dedicated instrumentation specialists.

Q3: What does the warranty terms confirmed during quotation cover for the TRICONEX 4000093-310, and what is the sourcing lead time for replacement units?
The warranty terms confirmed during quotation covers manufacturing defects, connector integrity, and cable assembly workmanship from the date of shipment. In the event of a warranty claim, replacement units are processed through our technical support team with priority handling for safety system applications. For facilities that require guaranteed spare availability to meet their maintenance and reliability KPIs, we recommend holding at least one spare 4000093-310 assembly per active Tricon chassis in your plant inventory. Our global sourcing network supports expedited delivery for critical replacement requirements, and our team can advise on compatible alternatives if the original part number is subject to extended lead times.
