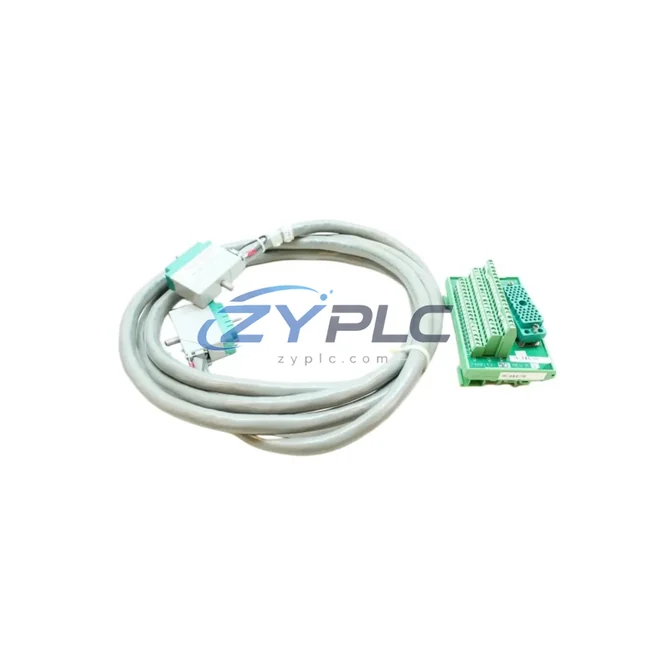

TRICONEX 4000103-510 Cable Assembly for Tricon Systems

TRICONEX 4000103-510: Industrial Data Link for Smart Factory Safety Networks

The TRICONEX 4000103-510 is a precision-engineered cable assembly designed to serve as a critical physical data link within Tricon Triple Modular Redundant (TMR) safety control architectures. In modern smart factory and process automation environments, reliable signal transmission between field devices and safety controllers is not optional — it is the backbone of operational continuity. The 4000103-510 delivers exactly that: a robust, shielded, and protocol-ready interconnect solution that ensures uninterrupted communication across the most demanding industrial network topologies.

Whether deployed in oil and gas processing, chemical manufacturing, power generation, or advanced discrete manufacturing, this cable assembly integrates seamlessly into the Tricon safety system’s communication backbone, supporting real-time data exchange between the Tricon Main Chassis, I/O modules, and upstream SCADA or DCS platforms. Its construction meets the rigorous signal integrity requirements of safety-rated networks, where even microseconds of communication latency can trigger critical process decisions.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Tricon safety architecture, the 4000103-510 cable assembly operates at the physical layer of a multi-tier industrial data flow. The journey begins at the field level, where process sensors — including pressure transmitters, temperature sensors, and flow meters — feed analog and digital signals into Tricon AI3351 Analog Input Modules and Tricon DI3301 Digital Input Modules. These signals are routed through the 4000103-510 interconnect to the Tricon Main Chassis (3008), where the TMR processor executes safety logic at scan rates measured in milliseconds.

From the Main Chassis, processed data travels upward through the Tricon Communication Module (TCM 4351A), which bridges the safety network to plant-level Ethernet infrastructure. Here, the TRICONEX TriStation 1131 engineering workstation communicates with the controller for programming, diagnostics, and live monitoring. Simultaneously, the TCM exposes OPC-UA data endpoints consumed by Wonderware System Platform or Emerson DeltaV SCADA systems, enabling operators to visualize real-time process states, acknowledge alarms, and initiate remote diagnostic sessions without interrupting the safety execution cycle.

For facilities running hybrid architectures, the 4000103-510 also supports integration scenarios where the Tricon system coexists with Schneider Electric Modicon M580 PLCs on the same plant Ethernet backbone. In such deployments, a Moxa MB3170 Modbus TCP Gateway may be used to bridge legacy Modbus RTU field devices into the Ethernet segment, with the Tricon system acting as the safety supervisor. Remote I/O panels equipped with TRICONEX RXM 4000 Remote Expansion Modules extend the I/O reach across large process units, all interconnected via fiber-optic Tribus cables and the 4000103-510 assembly at local junction points.

At the drive and actuator layer, Schneider Electric Altivar ATV630 Variable Frequency Drives receive run/stop commands from Tricon digital output modules, with feedback signals confirming actuator status back through the same data path. Edge computing nodes — such as the Advantech UNO-2484G Industrial Edge Gateway — aggregate historian data from multiple Tricon controllers and push it to cloud-based MES or ERP platforms, completing the vertical data integration from field sensor to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Legacy field devices speak Modbus RTU or HART, while modern SCADA platforms demand OPC-UA or Ethernet/IP. Safety controllers like the Tricon system operate on proprietary TriStation protocols internally, creating potential data silos between the safety layer and the process control layer. The TRICONEX 4000103-510 cable assembly, as part of the broader Tricon communication infrastructure, directly addresses this by providing a reliable physical foundation for the TCM’s protocol bridging capabilities.

When the physical interconnect is compromised — through cable degradation, connector wear, or improper substitution — the entire data chain from field to SCADA is at risk. Intermittent signal loss at the chassis level can manifest as spurious alarms, missed safety function triggers, or communication timeouts that force operators into manual override modes, undermining the very transparency that smart factory initiatives are designed to achieve. The 4000103-510 eliminates this risk with its precision-manufactured connectors and shielded construction, ensuring signal integrity across the full operating temperature and vibration range of industrial environments.

For facilities pursuing IIoT and Industry 4.0 roadmaps, maintaining a verified spare inventory of critical cable assemblies like the 4000103-510 is a standard reliability engineering practice. Unplanned downtime caused by a failed interconnect cable in a safety system can cost tens of thousands of dollars per hour in lost production. ZYPLC maintains ready stock of the 4000103-510 with same-day dispatch capability, supported by full pre-shipment functional testing and a warranty terms confirmed during quotation, ensuring that your maintenance team can restore system integrity without extended lead times.

Industrial Connectivity FAQ

Q1: Is the TRICONEX 4000103-510 compatible with both Tricon v9 and v10/v11 chassis generations?
The 4000103-510 is designed for use within the Tricon TMR safety system family. Compatibility with specific chassis generations (v9, v10, v11) should be confirmed against your system’s Bill of Materials or the TRICONEX hardware compatibility matrix. ZYPLC’s technical team can assist with cross-referencing your chassis model prior to order.

Q2: What communication protocols does the Tricon system support when using this cable assembly as part of the I/O interconnect?
The Tricon system, with the TCM communication module, supports TriStation protocol for engineering access, Modbus RTU/TCP for DCS integration, and OPC-DA/UA for SCADA connectivity. The 4000103-510 cable assembly supports the physical signal routing within the chassis that underpins all of these protocol layers.

Q3: How does ZYPLC ensure network stability and signal integrity for this cable assembly before shipment?
Every 4000103-510 unit shipped by ZYPLC undergoes pre-shipment inspection including visual examination of connectors, shielding continuity verification, and pin-out testing. Units are packaged in anti-static, shock-resistant materials for international express shipping via DHL or FedEx, with full traceability documentation included.

Q4: What warranty and after-sales support does ZYPLC provide for the TRICONEX 4000103-510?
ZYPLC provides a warranty terms confirmed during quotation on all TRICONEX 4000103-510 cable assemblies from the date of shipment. In the event of a verified defect, ZYPLC will arrange replacement or refund in accordance with our standard warranty policy. Our technical support team is available to assist with installation guidance, compatibility queries, and system integration questions.

—
