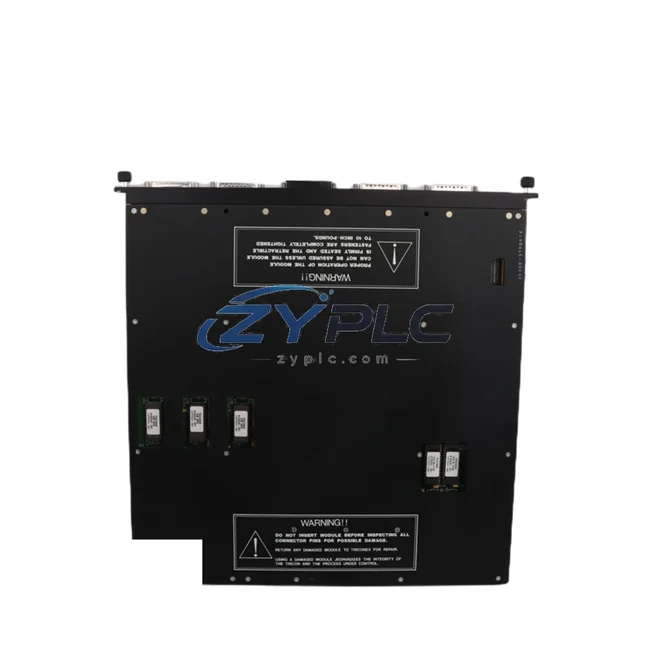

Triconex 4119 Safety Module for Tricon

Triconex 4119 Safety Module for Tricon: Compatibility and Replacement Notes

The Triconex 4119 is a dedicated safety system module engineered for deployment within Triconex Tricon Triple Modular Redundant (TMR) control architectures. In modern industrial automation environments — spanning oil and gas, petrochemical processing, power generation, water treatment, mining, metallurgy, and advanced manufacturing — the integrity of a Safety Instrumented System (SIS) depends not only on individual component performance but on the seamless coordination of every layer within the control hierarchy. The Triconex 4119 is designed precisely for this role: to serve as a reliable, architecture-consistent element that reinforces system-wide safety, redundancy, and long-term operational continuity.

Understanding the 4119 requires viewing it within the full Tricon system stack. At the control layer, the Tricon Main Chassis houses the Triconex 3008 or 3006 Tricon Communication Module alongside the primary TMR processor modules. These processors execute triple-redundant logic, continuously cross-checking outputs to detect and isolate faults before they propagate. The 4119 module integrates into this architecture at the I/O layer, where it interfaces with field instrumentation — pressure transmitters, temperature sensors, flow meters, and final control elements — ensuring that safety logic receives accurate, validated signal data at all times.

At the network and communications layer, the Tricon system relies on the Triconex 4351B or 4352 Enhanced Intelligent Communication Module (EICM) to bridge the SIS with distributed control systems (DCS), SCADA platforms, and engineering workstations via Modbus, OPC, or proprietary TriStation protocols. The 4119 module’s signal conditioning and I/O management capabilities are fully compatible with this communication framework, enabling system integration across control domains without requiring protocol conversion or additional gateway hardware.

Power integrity is foundational to TMR system reliability. The Triconex 8312 or 8110 Power Supply Modules provide isolated, redundant DC power rails to all chassis-mounted modules, including the 4119. This power architecture ensures that no single power fault can compromise safety function execution. The 4119’s low-power consumption profile is optimized for compatibility with Tricon power budgets, supporting high-density I/O configurations without thermal or electrical overload risk.

At the human-machine interface layer, Wonderware InTouch or Rockwell FactoryTalk View SE platforms are commonly integrated with Tricon systems via the EICM communication bridge. Operators monitor safety loop status, module diagnostics, and alarm states in real time. The 4119’s self-diagnostic capabilities continuously report module health to the Tricon Main Processor, ensuring that any degradation is surfaced immediately at the HMI level — enabling predictive maintenance rather than reactive intervention.

In the execution layer, the 4119 interfaces with solenoid valve assemblies, motor control centers, and emergency shutdown (ESD) actuators. Its output signal integrity is maintained across the full TMR voting architecture (2-out-of-3 logic), ensuring that spurious trips are minimized while genuine safety demands are executed without delay. This balance between availability and safety integrity is the defining characteristic of Tricon TMR design, and the 4119 is a key contributor to achieving it.

Product Specification Table

System Compatibility Notes

The Triconex 4119 achieves its full value when deployed as part of a coordinated Tricon system architecture. A complete SIS installation typically includes the Triconex 3008 Tricon Communication Module for inter-chassis data exchange, the Triconex 4351B Enhanced Intelligent Communication Module for DCS and SCADA integration, and the Triconex 8312 Redundant Power Supply to maintain uninterrupted power across all I/O modules. The Triconex 3625 or 3700A TMR Processor Module executes the safety logic that the 4119 feeds with validated field signals.

In high-availability configurations, the Tricon system may incorporate the Triconex 4119A or 4119B variant modules in parallel I/O slots to achieve full channel redundancy at the field interface level. The Triconex 4000 Series Termination Assemblies provide the field wiring interface, ensuring that module replacement during live operations does not require field cable disconnection — a critical feature for continuous process industries. The Triconex 9662 or 9563 Termination Panel further simplifies marshalling and reduces installation time in large-scale SIS projects.

For applications requiring integration with a Basic Process Control System (BPCS), the Tricon system communicates with platforms such as the Honeywell Experion PKS or Emerson DeltaV SIS via the EICM gateway, maintaining strict separation between safety and control domains as required by IEC 61511. The 4119 module’s role in this architecture is to ensure that field-side signal quality never becomes the limiting factor in system safety performance.

Industrial Application Notes

The Triconex 4119 is deployed across a wide range of process-critical industries. In oil and gas upstream and midstream operations, it supports wellhead ESD systems, pipeline isolation valve control, and compressor protection logic — environments where SIL 3 integrity and continuous availability are non-negotiable. In petrochemical and refinery applications, the 4119 manages burner management system (BMS) I/O, reactor safety interlocks, and high-integrity pressure protection systems (HIPPS).

In power generation facilities — including thermal, nuclear, and combined-cycle plants — the 4119 supports turbine protection systems, boiler safety interlocks, and grid synchronization safety loops. Its TMR architecture ensures that no single module failure can cause an unplanned plant trip or, conversely, prevent a required safety shutdown. In water and wastewater treatment plants, the module manages pump protection, chemical dosing safety interlocks, and overflow prevention systems.

For mining and metallurgical operations, the 4119 is integrated into conveyor safety systems, crusher protection circuits, and smelter process safety loops. In pharmaceutical and food-grade manufacturing, it supports clean-in-place (CIP) safety interlocks and critical temperature/pressure monitoring loops where regulatory compliance demands documented SIL performance. Across all these applications, the 4119’s compatibility with the broader Tricon ecosystem ensures that system architects can standardize on a single safety platform, reducing training overhead, spare parts inventory complexity, and long-term maintenance costs.

Product Compatibility FAQ

Q1: Is the Triconex 4119 compatible with both Tricon and Trident safety system platforms?
The Triconex 4119 is specifically designed for the Tricon TMR platform and its associated 4000 Series I/O chassis architecture. It is not directly interchangeable with Trident system modules, which use a different backplane and I/O addressing scheme. For mixed-platform installations, consult the Triconex system compatibility matrix or contact ZYPLC engineering support to confirm module-to-chassis compatibility before procurement. All units supplied by ZYPLC are verified against platform specifications prior to shipment under our warranty terms confirmed during quotation program.

Q2: Can the Triconex 4119 be replaced online (hot-swap) without shutting down the safety system?
The Tricon TMR architecture supports online module replacement under specific conditions, provided the system is operating in a degraded but functional TMR or dual-redundant state and the replacement procedure follows Triconex-approved maintenance protocols. The 4119 module, when paired with the appropriate Triconex Termination Assembly, allows field wiring to remain connected during module extraction and reinsertion. ZYPLC recommends that all online replacement activities be performed by qualified SIS engineers following the applicable Triconex maintenance documentation. Our warranty terms confirmed during quotation covers all replacement units supplied for this purpose.

Q3: What is ZYPLC’s lead time and warranty coverage for the Triconex 4119?
ZYPLC maintains ready stock of the Triconex 4119 to support urgent maintenance, planned turnaround, and new project requirements. All units undergo functional testing and diagnostic verification before shipment. Every Triconex 4119 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For volume procurement, system integration projects, or expedited delivery requirements, contact our technical sales team directly.
