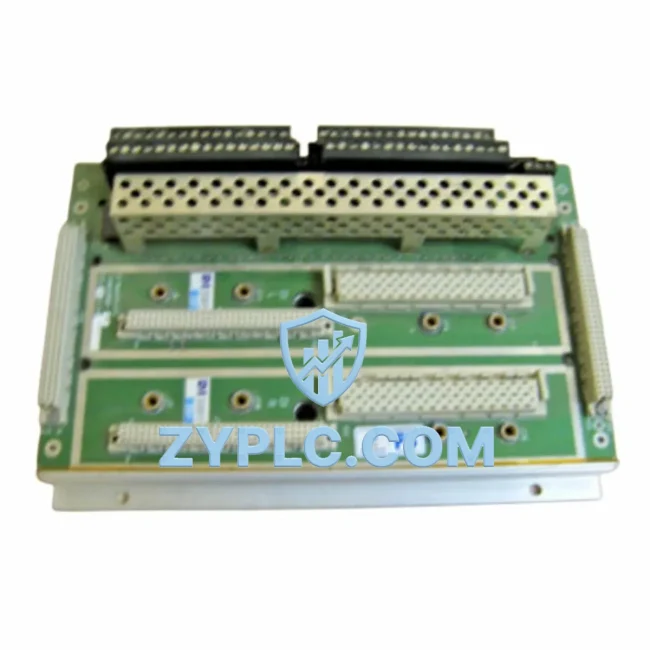

TRICONEX 7400208B-020 Safety System Baseplate for Tricon Systems

TRICONEX 7400208B-020: Industrial Data Link and Smart Factory Connectivity for Tricon Safety Systems

The TRICONEX 7400208B-020 DI Baseplate is a critical industrial network interface component engineered for the Tricon Triple Modular Redundant (TMR) Safety System platform. Designed to serve as the physical and electrical backbone for discrete input signal acquisition, this baseplate enables seamless data flow between field-level sensors, safety instrumented system (SIS) controllers, and upper-level supervisory networks. In modern smart factory and process automation environments, the 7400208B-020 plays an indispensable role in bridging the gap between raw field signals and actionable plant-wide intelligence — from signal conditioning at the I/O layer all the way through to SCADA dashboards and enterprise MES platforms.

At its core, the 7400208B-020 is built to support the Tricon controller architecture, where redundancy, determinism, and communication integrity are non-negotiable. The baseplate interfaces directly with TRICONEX DI modules such as the TRICONEX 3501E and 3503E discrete input modules, accepting 24 VDC field signals from proximity switches, limit switches, pressure transmitters, and safety-rated sensors. These signals are then processed through the Tricon’s TMR voting logic before being transmitted upstream via the TRICONEX TCM (Tricon Communication Module), which supports Modbus RTU, Modbus TCP/IP, and OPC DA/UA protocols — ensuring compatibility with a broad range of SCADA and DCS platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 7400208B-020’s role requires tracing the complete industrial data chain from the field device layer to the control room. In a typical refinery or chemical plant SIS architecture, field-mounted safety sensors — including Rosemount 3051 pressure transmitters and Pepperl+Fuchs proximity switches — deliver discrete 24 VDC signals to the 7400208B-020 baseplate. These signals are received by the installed TRICONEX 3501E DI module, which performs signal validation and passes the data through the Tricon’s internal TMR backplane bus.

The Tricon main chassis, typically a TRICONEX 8312 or 8110 main processor module, executes the safety logic in real time, applying IEC 61511-compliant voting algorithms before generating output commands to the TRICONEX DO (Discrete Output) modules such as the 3601E series. These outputs drive final control elements — solenoid valves, motor starters, and emergency shutdown actuators — completing the safety loop.

For network communication upward to the SCADA layer, the TRICONEX TCM 4351B communication module translates the Tricon’s internal data into Modbus TCP/IP packets, which are then transmitted over a dedicated industrial Ethernet network to the plant’s SCADA server running platforms such as AVEVA System Platform (Wonderware) or Inductive Automation Ignition. HMI terminals on the plant floor receive real-time process values, alarm states, and diagnostic data, enabling operators to monitor safety system status without interrupting the SIS logic execution.

For plants requiring integration with a broader DCS environment — such as a Yokogawa CENTUM VP or Emerson DeltaV system — a Modbus TCP-to-Profibus DP gateway or an OPC UA server bridges the Tricon network to the DCS historian and advanced process control (APC) layer. This multi-protocol data pathway ensures that the 7400208B-020’s field-level signal acquisition contributes directly to plant-wide KPIs, maintenance planning dashboards, and predictive maintenance analytics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — where safety systems, basic process control systems (BPCS), and enterprise networks operate in silos, preventing a unified view of plant operations. The TRICONEX 7400208B-020 baseplate, as part of the Tricon TMR platform, directly addresses this challenge by providing a structured, protocol-rich interface that can be integrated into modern industrial communication architectures without compromising SIS integrity.

In facilities where older Modbus RTU serial networks coexist with newer Ethernet-based SCADA systems, the Tricon’s communication modules enable protocol bridging — converting legacy serial data streams into TCP/IP packets that can be consumed by modern historians, MES platforms, and cloud-based analytics engines. This eliminates the need for manual data entry, reduces human error, and enables real-time production transparency across the entire value chain.

Remote diagnostics is another key capability enabled by the 7400208B-020 ecosystem. Through the Tricon’s OPC UA interface, remote engineers can access live I/O status, module health diagnostics, and communication statistics from any authorized workstation — reducing the need for on-site maintenance visits and enabling faster fault isolation. Combined with the system’s built-in self-diagnostics and the TMR architecture’s fault-tolerant design, the 7400208B-020 supports continuous operation even during partial module failures, ensuring production uptime and safety compliance are maintained simultaneously.

For plants undergoing digital transformation, the 7400208B-020 serves as a foundational connectivity node — enabling the gradual expansion of IIoT data collection, edge computing integration, and AI-driven anomaly detection without requiring a full SIS replacement. Its compatibility with standard industrial protocols and its proven reliability in SIL 3-rated applications make it a preferred choice for engineers designing scalable, future-ready safety network architectures.

Industrial Connectivity FAQ

Q1: What communication protocols does the TRICONEX 7400208B-020 support for SCADA integration?
The 7400208B-020 baseplate, when used with the TRICONEX TCM communication module, supports Modbus RTU, Modbus TCP/IP, OPC DA, and OPC UA protocols. This enables direct integration with leading SCADA platforms including Wonderware, Ignition, FactoryTalk, and Yokogawa CENTUM VP, without requiring additional protocol converters in most standard configurations.

Q2: How does the Tricon TMR architecture ensure network stability and data integrity?
The Triple Modular Redundant (TMR) design uses three independent processing paths that continuously vote on I/O data. If one path detects a discrepancy or hardware fault, the system continues operating on the remaining two paths without interrupting communication or safety logic execution. This architecture ensures deterministic, fault-tolerant data transmission — critical for SIS applications where communication dropouts can trigger unplanned shutdowns.

Q3: Can the 7400208B-020 be integrated into an existing DCS or mixed-protocol network environment?
Yes. The Tricon platform supports protocol gateway configurations that allow the 7400208B-020’s I/O data to be shared with DCS systems using Profibus DP, Foundation Fieldbus, or HART protocols via third-party gateways. OPC UA server functionality also enables seamless data exchange with modern DCS historians and MES platforms, making the 7400208B-020 compatible with both legacy and next-generation industrial network architectures.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every TRICONEX 7400208B-020 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify backplane connectivity, signal channel integrity, and communication interface performance. The 12-month warranty covers hardware defects, communication failures, and component malfunctions under normal operating conditions. Our technical team provides post-sale support for installation guidance, protocol configuration, and system integration troubleshooting.
