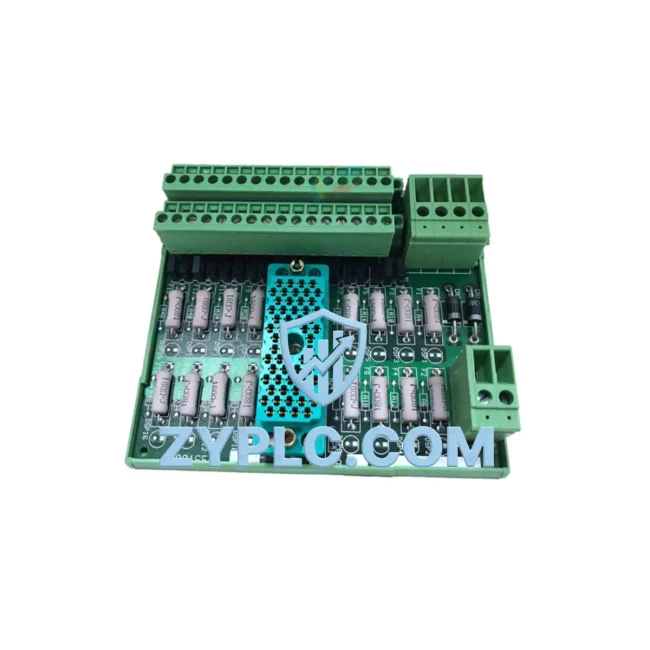

Triconex 9753-110 Safety Termination Panel for TMR Safety Systems

Triconex 9753-110: Industrial Data Link for TMR Safety System Networks

The Triconex 9753-110 Modbus/HART Voltage Input Termination Panel is a precision-engineered industrial network interface designed to bridge field-level instrumentation with Triple Modular Redundant (TMR) safety controllers. In modern smart factory environments, where uninterrupted data flow between sensors, safety PLCs, remote I/O modules, and SCADA supervisory systems is mission-critical, the 9753-110 serves as a robust and reliable signal conditioning and protocol termination node. Its dual-protocol support for Modbus RTU/TCP and HART (Highway Addressable Remote Transducer) makes it an indispensable component in safety-instrumented systems (SIS) that demand both deterministic communication and intelligent device diagnostics.

Deployed across oil and gas, petrochemical, power generation, and advanced manufacturing facilities, the Triconex 9753-110 enables seamless voltage signal acquisition from field transmitters and routes structured process data upward through the automation hierarchy — from the field bus layer through the control network to the enterprise data layer. This connectivity architecture eliminates data silos, accelerates alarm response, and supports real-time remote diagnostics without interrupting live production processes.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 9753-110’s role requires tracing the complete industrial data chain it supports. At the field level, voltage-output transmitters — including pressure, temperature, and flow sensors — connect directly to the 9753-110 termination panel. The panel conditions and routes these analog signals into the Triconex Tricon TMR controller chassis, where the Triconex 3703E Analog Input Module digitizes the voltage readings and passes them to the TMR voting logic for safety evaluation.

Simultaneously, the HART communication layer embedded in the 9753-110 interface allows the Triconex HTMS (HART Tri-Loop Multiplexer System) to extract secondary process variables and device diagnostics from smart field instruments — without interrupting the primary 4–20 mA or voltage signal path. This dual-channel data extraction is critical for predictive maintenance workflows in smart factories, where asset health data must flow continuously to the AMS Device Manager or equivalent HART-capable asset management platform.

At the control network layer, the Modbus protocol stack within the Tricon system enables the 9753-110-connected I/O data to be polled by Wonderware InTouch HMI or Ignition SCADA platforms via the Triconex TriStation 1131 communication gateway. Operators at the control room level receive real-time process values, safety state indicators, and alarm conditions derived directly from the field signals terminated at the 9753-110 panel.

For distributed plant architectures, the data path extends further: the Tricon TMR controller communicates upstream via Triconex TCM (Tricon Communication Module) to plant-wide DCS systems such as the Foxboro I/A Series or Emerson DeltaV SIS, enabling cross-system data sharing and unified alarm management. Remote engineering stations connected through the plant Ethernet backbone can access live diagnostics, perform online configuration changes, and review historical safety event logs — all anchored by the reliable signal termination provided by the 9753-110.

In multi-loop safety applications, the 9753-110 is often deployed alongside the Triconex 9753-210 Current Input Termination Panel and the Triconex 9563-810 Digital Output Termination Panel, forming a complete I/O termination ecosystem that supports both analog and discrete safety loops within a single Tricon TMR rack. This modular approach simplifies wiring, reduces installation time, and ensures consistent signal integrity across all safety-critical measurement points.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — where field devices speak HART, safety controllers use proprietary backplane communication, and SCADA systems expect Modbus TCP. The result is data isolation: critical process variables trapped at the field level, invisible to operators and maintenance engineers until a fault occurs.

The Triconex 9753-110 directly addresses this challenge by serving as the physical and logical bridge between HART-enabled smart instruments and the Modbus-accessible Tricon TMR safety controller. By terminating voltage signals at the panel level and simultaneously supporting HART pass-through communication, the 9753-110 enables a single wiring infrastructure to carry both safety-critical process data and intelligent device diagnostics — eliminating the need for separate HART multiplexer wiring runs.

For facilities undergoing digital transformation, the 9753-110 supports production line transparency by ensuring that every voltage-input measurement point is visible in real time to SCADA dashboards, historian databases, and remote monitoring portals. Maintenance teams can perform remote diagnostics on connected field transmitters — checking sensor drift, loop integrity, and device health — without dispatching technicians to hazardous field locations. This capability directly reduces mean time to repair (MTTR) and supports continuous compliance with IEC 61511 functional safety standards.

System expansion is equally straightforward: additional 9753-110 panels can be added to the Tricon TMR chassis as new measurement loops are commissioned, with no changes required to the existing control logic or SCADA configuration. Each panel is pre-tested at the ZYPLC facility prior to shipment, with full functional verification of signal termination integrity and protocol communication — ensuring plug-and-play deployment at the customer site.

Industrial Connectivity FAQ

Q1: What communication protocols does the Triconex 9753-110 support, and how does it integrate with SCADA systems?
The 9753-110 supports Modbus RTU and Modbus TCP/IP for PLC-to-SCADA data exchange, as well as HART protocol for smart instrument diagnostics. Integration with SCADA platforms such as Ignition, Wonderware, or iFIX is achieved through the Tricon TMR controller’s Modbus server interface, which exposes all terminated I/O data as standard Modbus registers accessible by any compliant SCADA client.

Q2: How does the 9753-110 ensure network stability and signal integrity in high-noise industrial environments?
The Triconex 9753-110 is designed to IEC 61511 SIL-rated specifications, incorporating galvanic isolation and EMI-hardened termination circuitry. The TMR (Triple Modular Redundant) architecture of the Tricon controller further ensures that any single-channel signal anomaly is detected and voted out by the redundant processing modules, maintaining continuous safe-state output without process interruption.

Q3: Can the 9753-110 be used in system expansion projects without reconfiguring existing Tricon TMR controllers?
Yes. The 9753-110 is hot-swap compatible within the Tricon TMR chassis and can be added to existing I/O racks without requiring controller shutdown or TriStation 1131 logic recompilation. New measurement loops are automatically recognized by the TMR controller upon panel insertion, enabling seamless system expansion in live production environments.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every Triconex 9753-110 supplied by ZYPLC undergoes full functional testing prior to shipment, including voltage input signal verification, Modbus communication handshake testing, and HART device recognition checks. The 12-month warranty covers all manufacturing defects and communication failures under normal operating conditions. ZYPLC’s quality assurance team provides post-sale technical support and replacement coordination for any warranty claims within the coverage period.
